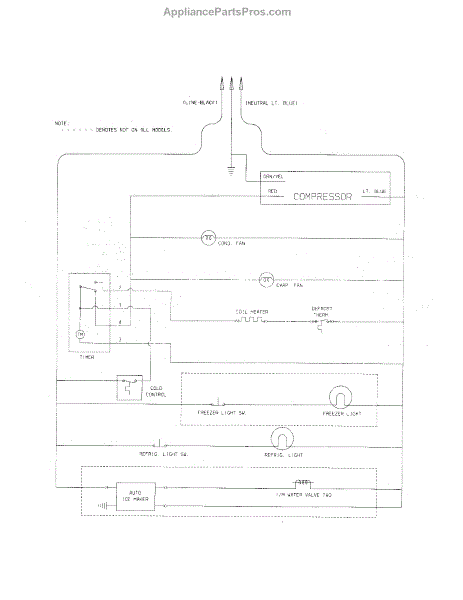

Parts for Kenmore 253.60802408 (25360802408, 253 60802408): Wiring Schematic Parts

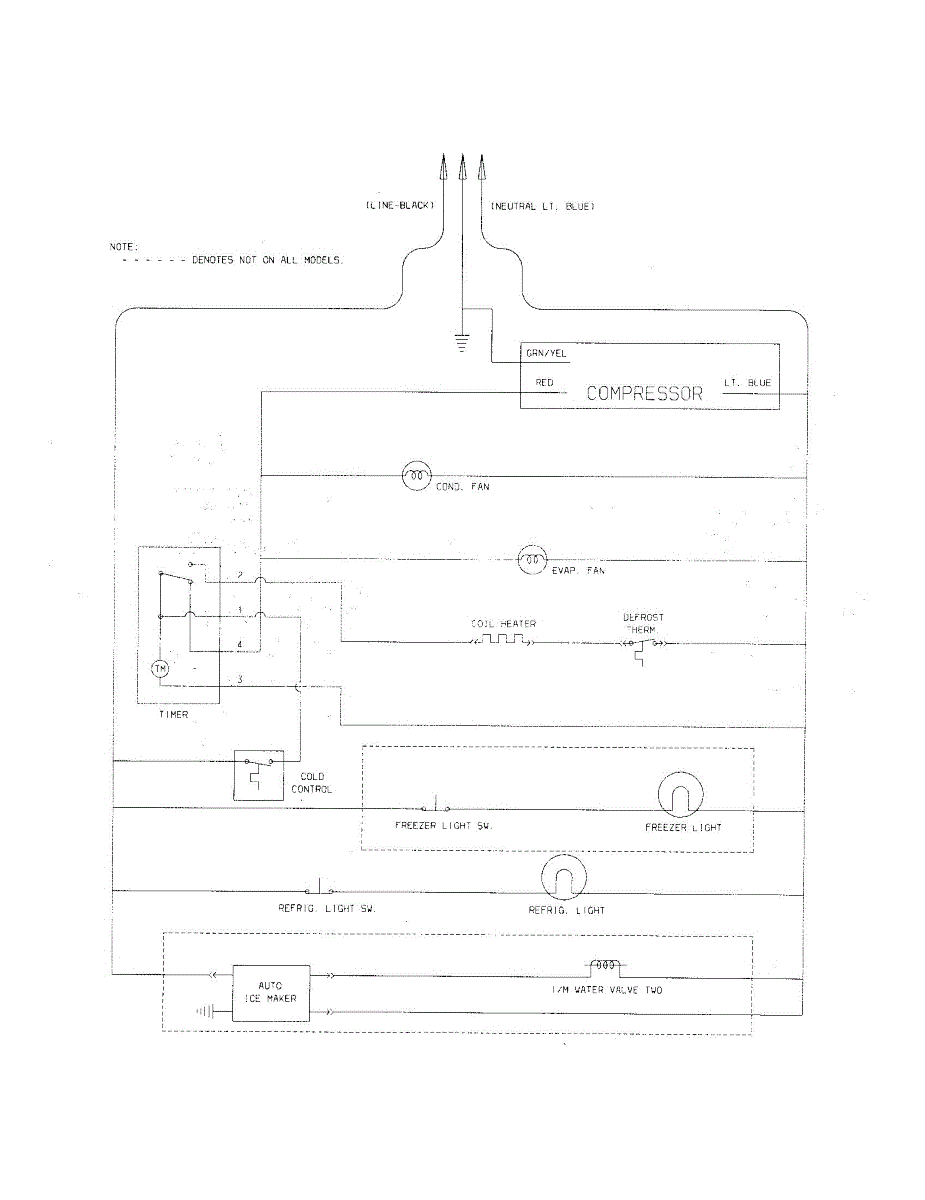

Parts for Kenmore 253.60802408 (25360802408, 253 60802408): Wiring Schematic Parts

Location on Diagram
Part Description
Price & Availability
NI01
Product photo
5.0 (1)
By: Frigidaire
Part Number: 240494001

Color: White

More
$14.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
NI02
Product photo
4.9 (12)
By: Frigidaire
Part Number: 5303321319

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

  • Visible scratches or chips on the appliance's surface.
  • Areas of rust or corrosion that need to be covered after treating the rust.
  • The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.

More
$10.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
NI03
Product photo
5.0 (5)
By: Frigidaire
Part Number: 5304414035

Touch-up paint in bisque color for appliance exterior surfaces. Covers chips, scratches, and worn spots on refrigerator doors, range panels, and more.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI04
By: Frigidaire
Part Number: 240379017

This is a manufacturer service data sheet that gives technicians the official service and diagnostic information needed to troubleshoot and repair the appliance. It helps locate parts and follow service procedures. What it does:

  • Supplies official service and diagnostic information to guide repairs and troubleshooting
  • Identifies component locations and wiring relationships to aid diagnosis
  • Clarifies service procedures and specifications technicians use during repairs
What's included: One printed service data sheet as supplied by the manufacturer. Install notes:
  • This is a reference document, not an electrical or mechanical replacement part.
  • Use only as a technician reference; follow all safety guidelines when servicing the appliance.
  • Keep the sheet dry and store with other service literature for future use.

More
$6.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI05
By: Frigidaire
Part Number: 240432311

Replacement owner's manual for your refrigerator. Provides operating instructions, maintenance guidelines, and troubleshooting tips for your appliance.

More
$9.44

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI06
By: Frigidaire
Part Number: 241585929
$2.15

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI07
By: Frigidaire
Part Number: 5303270944
$6.41

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI08
By: Frigidaire
Part Number: 5995453981
$6.41

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI09
Product photo
By: Frigidaire
Part Number: 240396801

Secures tubes and wiring in your refrigerator. Replace if clips are broken or connections are loose. Confirm fit with your model number.

More
$17.33

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
NI10
Product photo
By: Frigidaire
Part Number: 5303918263

This heat exchanger suction line kit replaces a damaged or corroded suction line assembly to restore proper refrigerant flow and heat transfer in the cooling system. It helps maintain consistent compartment temperatures and system efficiency. What it does:

  • Transfers heat from the refrigerant suction line so the compressor and evaporator operate correctly
  • Replaces cracked, kinked, or corroded tubing that can cause refrigerant loss or reduced cooling
  • Helps address symptoms such as warm or inconsistent temperatures, visible oil or residue at fittings, or abnormal frost/ice patterns
  • Restores a sealed refrigerant path after tubing damage or when corrosion has compromised the line
What's included: One heat exchanger suction line kit (one assembled suction line as shown) Install notes:
  • Intended for qualified service technicians only; system access requires certified refrigerant handling
  • Disconnect power to the appliance before servicing and follow all safety precautions
  • Installation may require brazing, flare fittings, or specialty tools; verify leak-tight connections and pressure-test per OEM procedures
  • Evacuate and recharge the refrigerant system to OEM specifications after installation

More
$368.59

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
NI11
Product photo
By: Frigidaire
Part Number: 5303918234
$540.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
