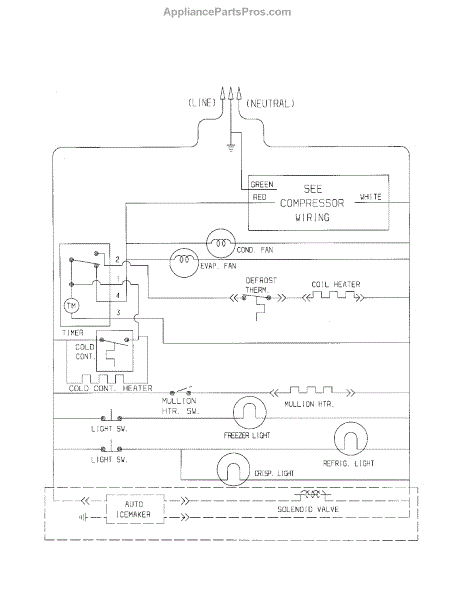

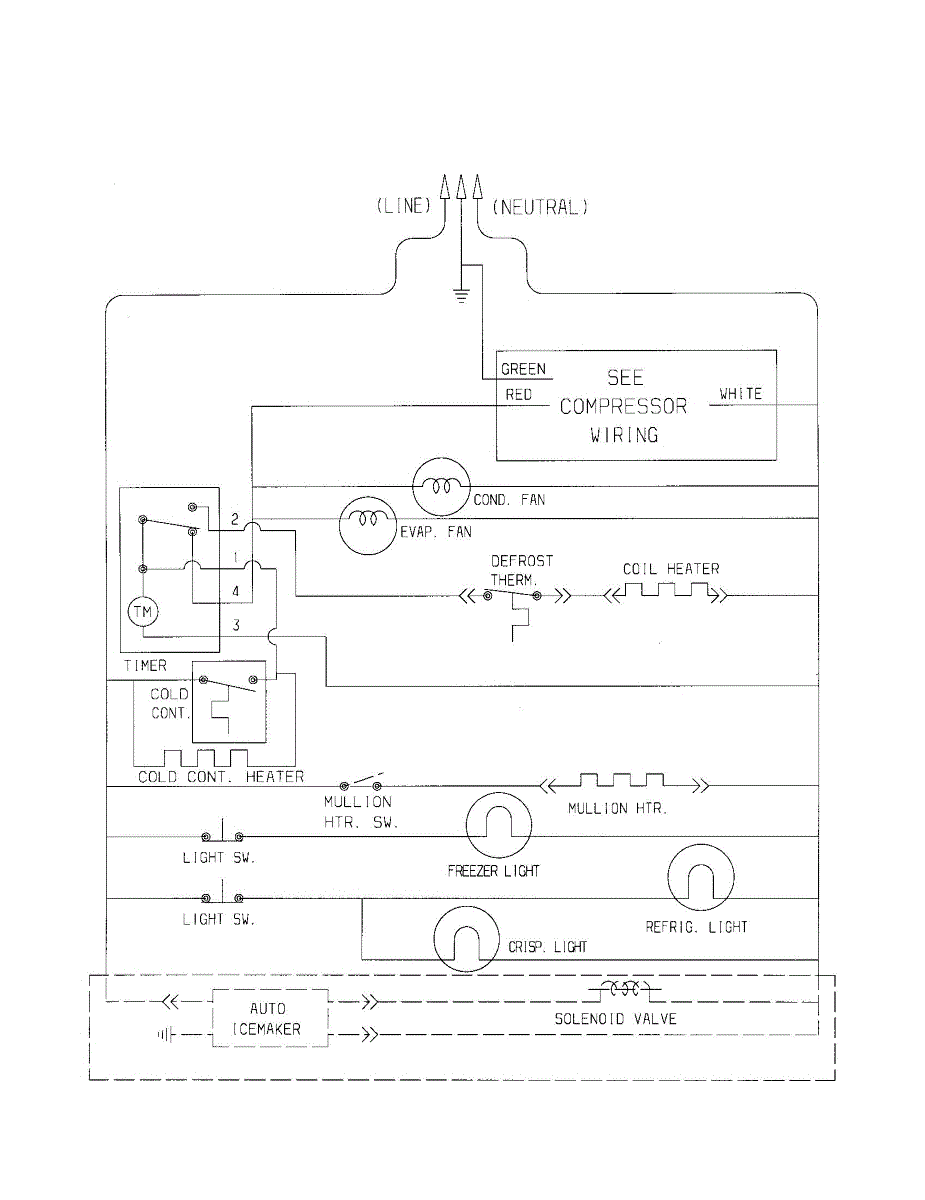

Parts for Kenmore 253.78296896 (25378296896, 253 78296896): Wiring Schematic Parts

This part has been discontinued by the manufacturer and is no longer available.

This printed owner's manual provides original operating instructions, care guidance, and basic troubleshooting to help you use and maintain your appliance safely and effectively. Keeps key information handy for everyday use and simple fixes. What it does:

• Explains control panel functions, cycle settings, and common features in plain language
• Lists routine maintenance and cleaning recommendations to help prevent issues
• Provides symptom-focused troubleshooting steps for common user-level problems
• Offers safety warnings and proper usage guidance to reduce risk of misuse

• No tools required — place the manual near the appliance for easy reference
• Review safety and warning sections before operating the appliance
• Keep with appliance paperwork or in a safe place for future service and resale

Secures cantilever shelves to prevent shifting or slipping. Replace if cracked, broken, or missing to restore stable shelf support. Confirm fit with model.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

Secures and supports refrigerator shelves in proper position. Replace if cracked, broken, or shelves become loose or unstable. Verify fit with model number.

The Replacement Icemaker is an OEM part for Frigidaire side-by-side refrigerators. It serves the critical function of automatically producing batches of ice cubes on demand. Note: The Icemaker Kit comes with an adaptor harness that may be needed for some applications. The harness converts a 4 pin connector to a 3 pin connector.

Causes of a malfunctioning icemaker can vary. They may stem from failed control sensors affecting conductivity and freeze times, scaled or corroded water lines, or an ice basket mold with broken fins and louvers.
Symptoms of a bad icemaker include:

• Reduced or inconsistent ice production
• Ice cubes getting jammed or fused together
• Water leaks or spray inside the freezer
• Strange sounds or mechanisms not working

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
