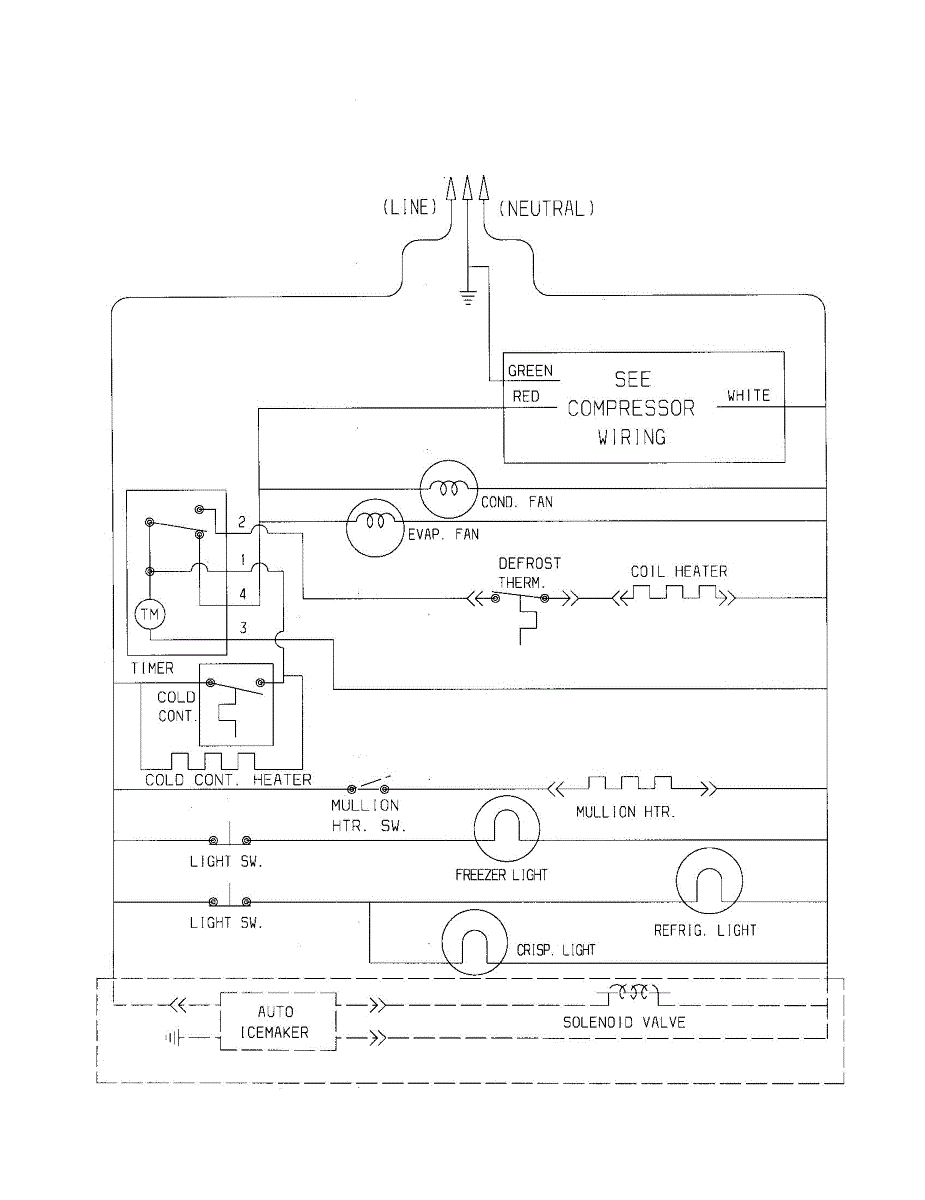

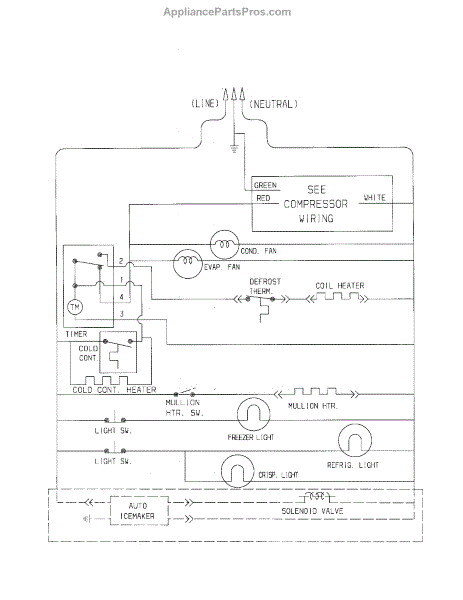

Parts for Kenmore 253.78299898 (25378299898, 253 78299898): Wiring Schematic Parts

This part has been discontinued by the manufacturer and is no longer available.

This printed owner's manual provides original operating instructions, care guidance, and basic troubleshooting to help you use and maintain your appliance safely and effectively. Keeps key information handy for everyday use and simple fixes. What it does:

• Explains control panel functions, cycle settings, and common features in plain language
• Lists routine maintenance and cleaning recommendations to help prevent issues
• Provides symptom-focused troubleshooting steps for common user-level problems
• Offers safety warnings and proper usage guidance to reduce risk of misuse

• No tools required — place the manual near the appliance for easy reference
• Review safety and warning sections before operating the appliance
• Keep with appliance paperwork or in a safe place for future service and resale

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

Touch-up paint for appliances to cover scratches, chips, and worn areas on exterior surfaces. Restores appearance of refrigerators, ranges, and more.

This complete ice maker unit produces and dispenses ice cubes in your refrigerator's freezer compartment. It includes all internal mechanisms for water filling, freezing, and ice ejection cycles. Install this assembly if your ice maker has stopped producing ice, makes unusual noises, or produces malformed ice cubes.
