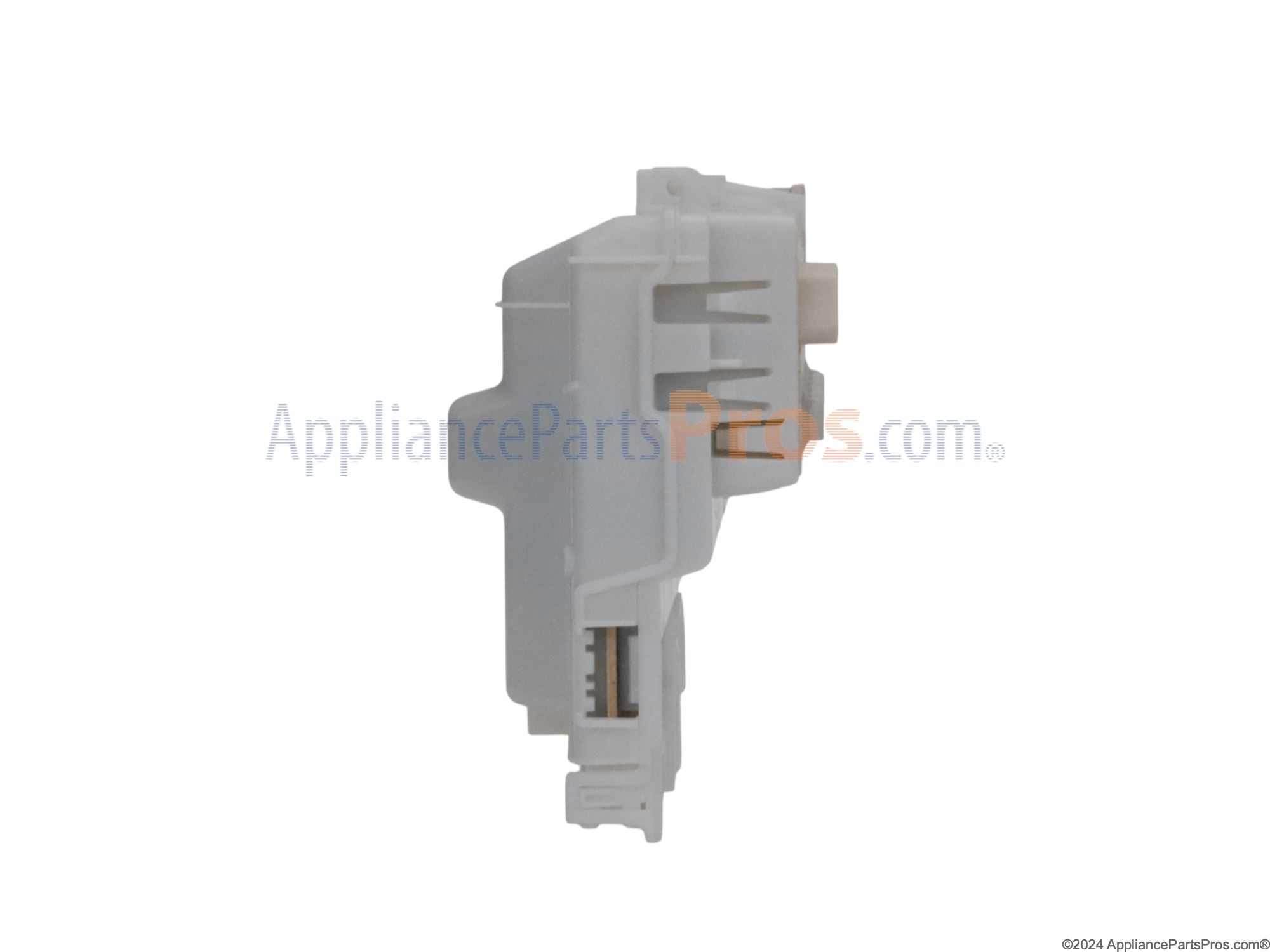

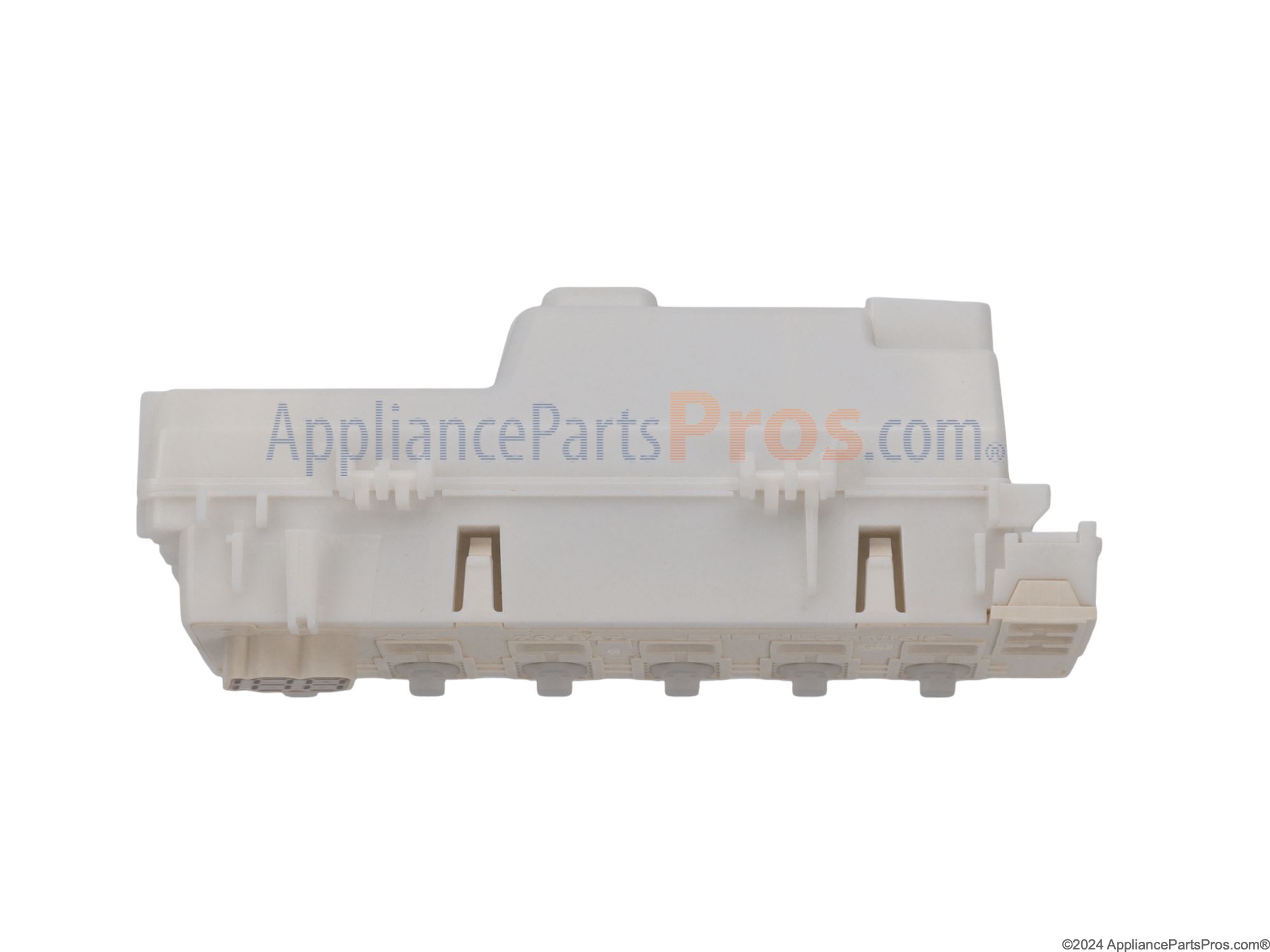

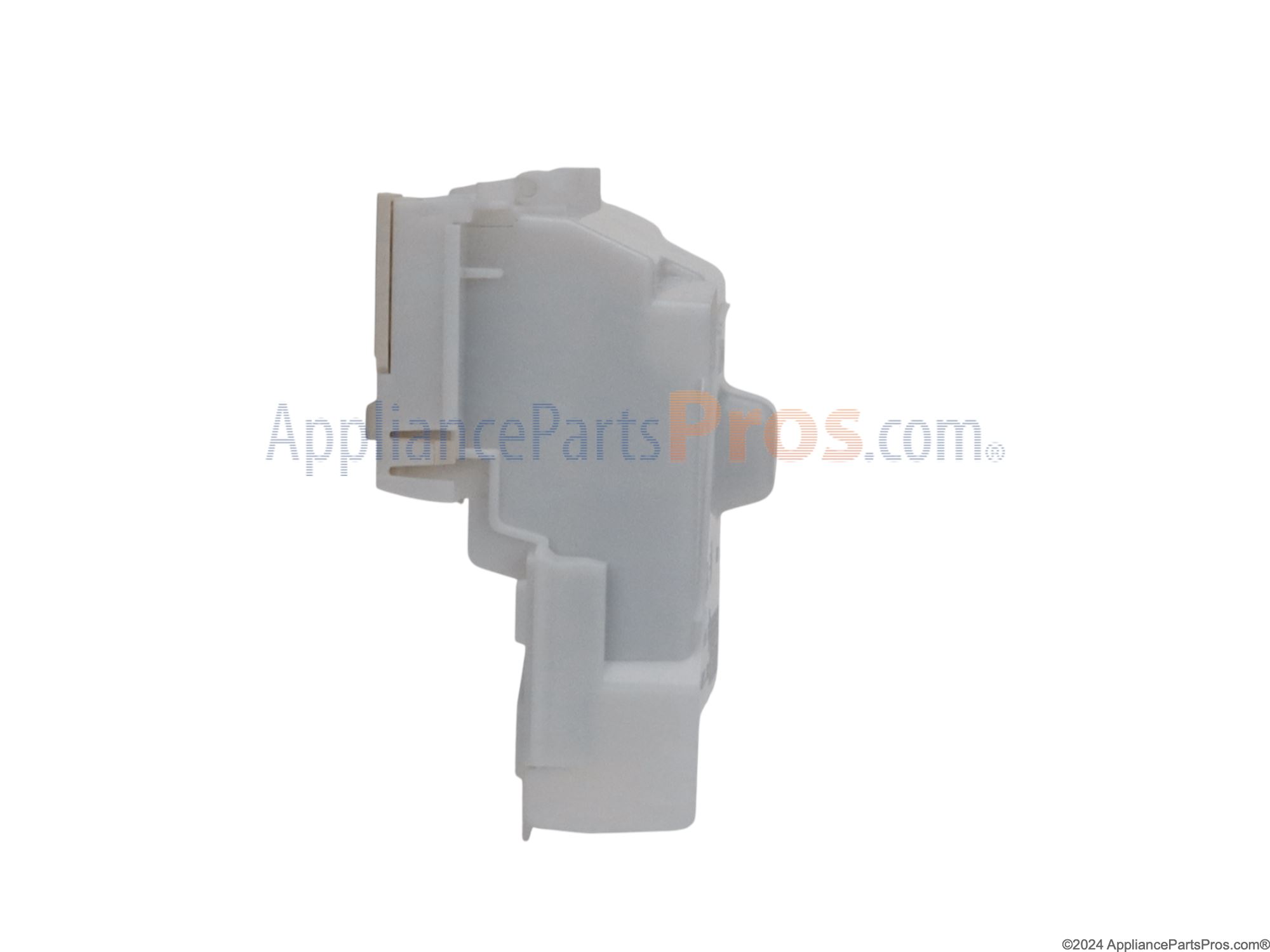

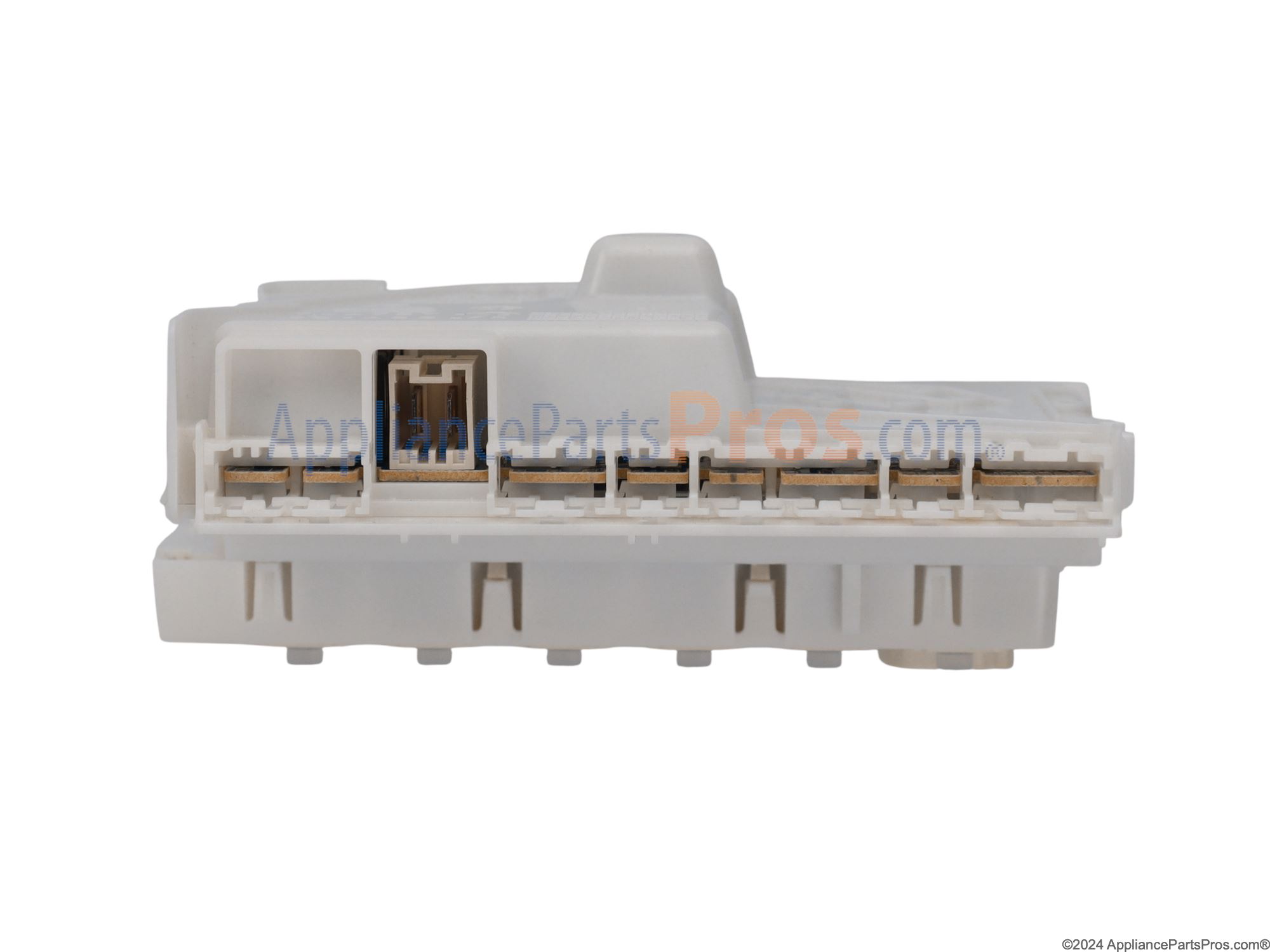

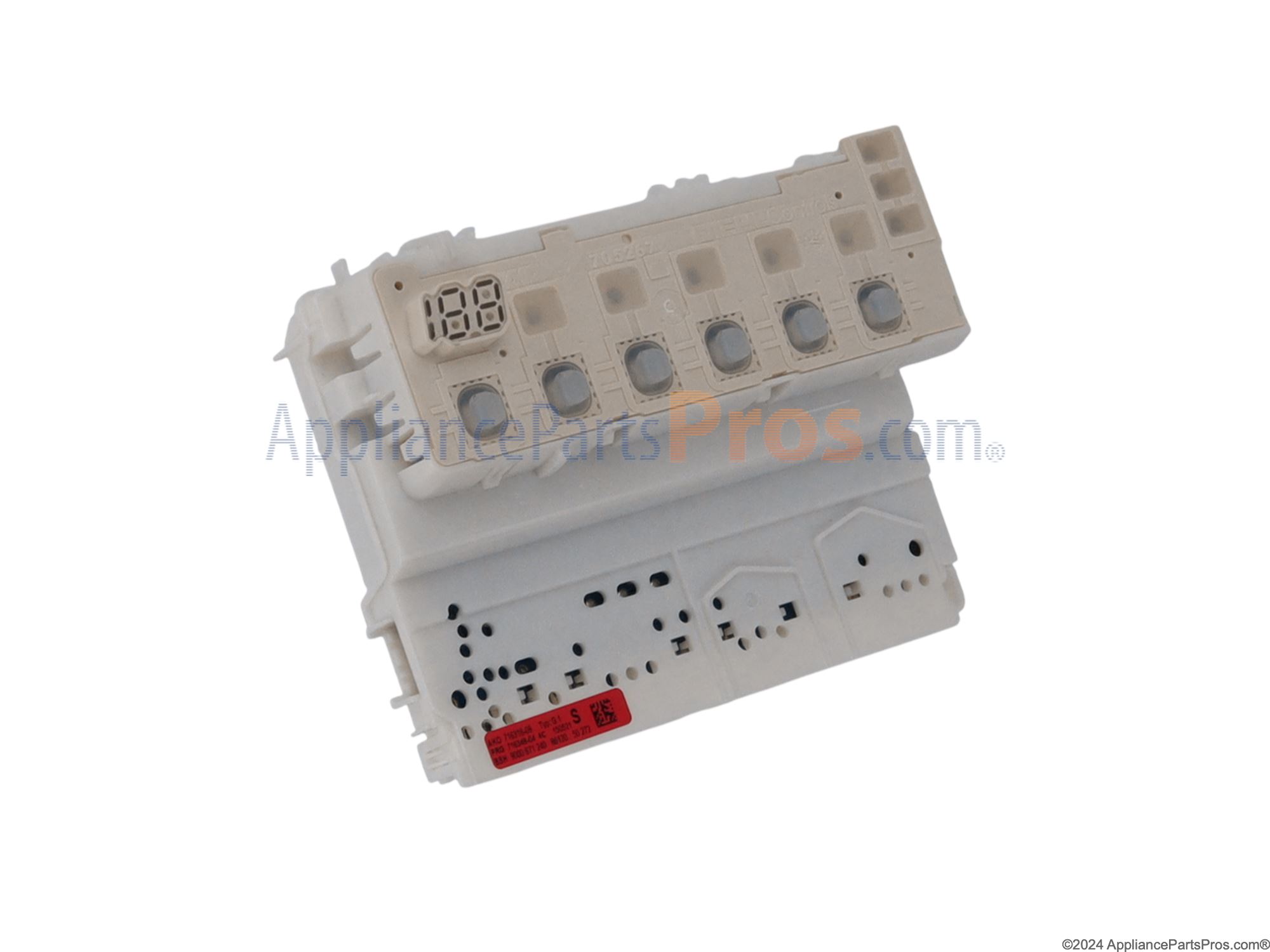

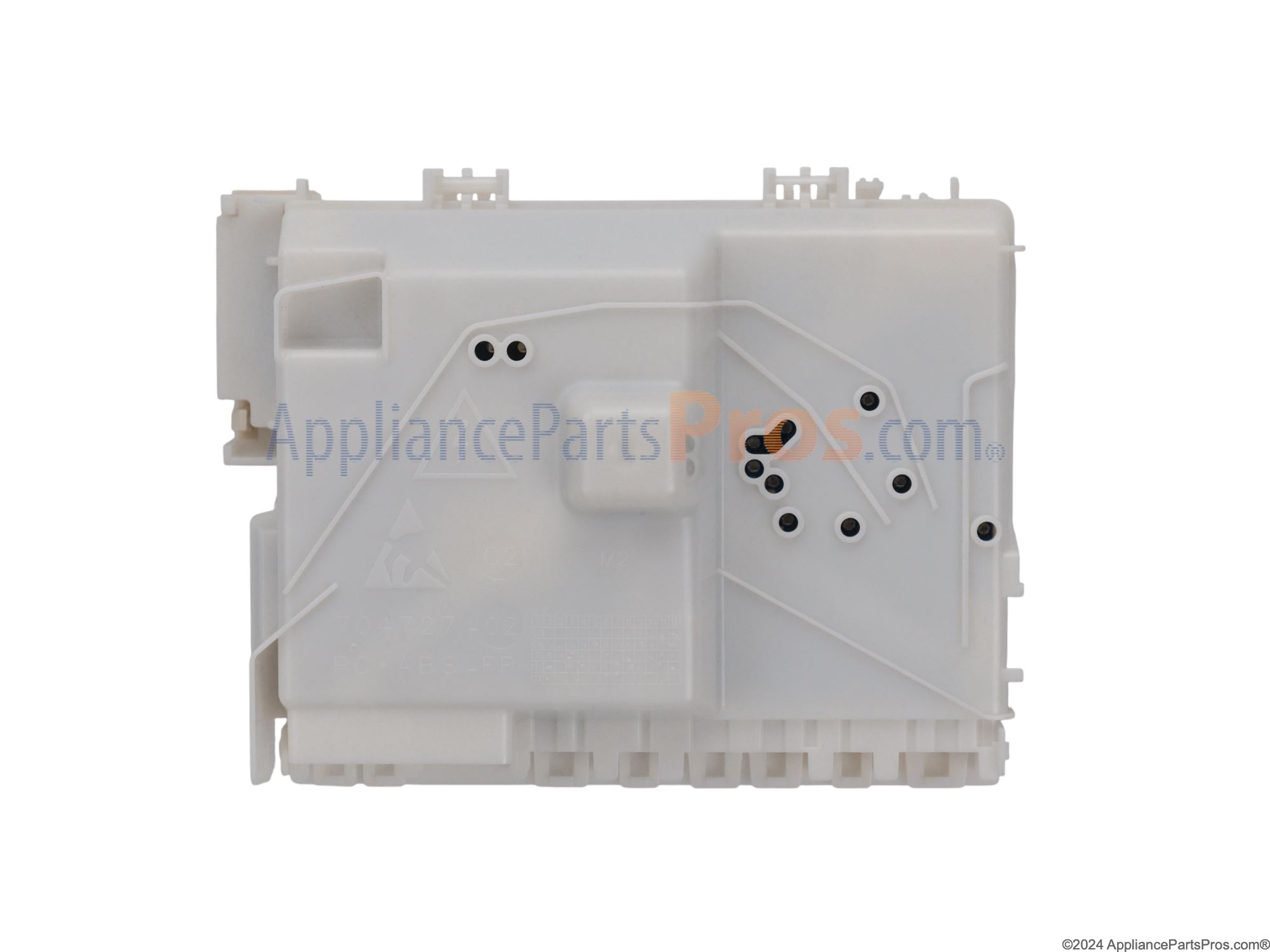

How do you remove the Control Unit (OEM part number 00676962) from the door/mount?
To access the control unit you will need to open the door and remove the 4 screws across the top of the inner door panel and the first one down the side. Then you will remove a screw from the side of the control panel on each side. This will allow you to lift the panel off and access the control module to remove. The control module will be clipped in and you just unclip and disconnect wires and reconnect to the new control module and reassemble.
Do you know how to remove the control module from this unit. I can get to it, but I can't figure out how to release the clips. I'm afraid of breaking something. Thanks for any help
Answer Hello Paul. ??Remove fascia panel by removing T-20 Torx inner door screws.
??Disconnect wire harnesses from module after noting connector locations.
??Pry out metal console tabs holding module to console.
??Carefully pry back plastic tabs, then slide module from console.
