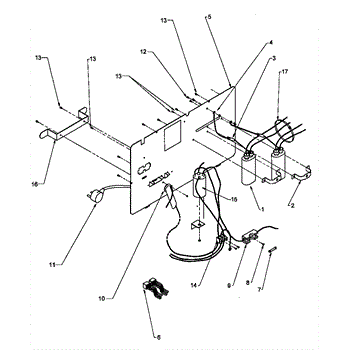

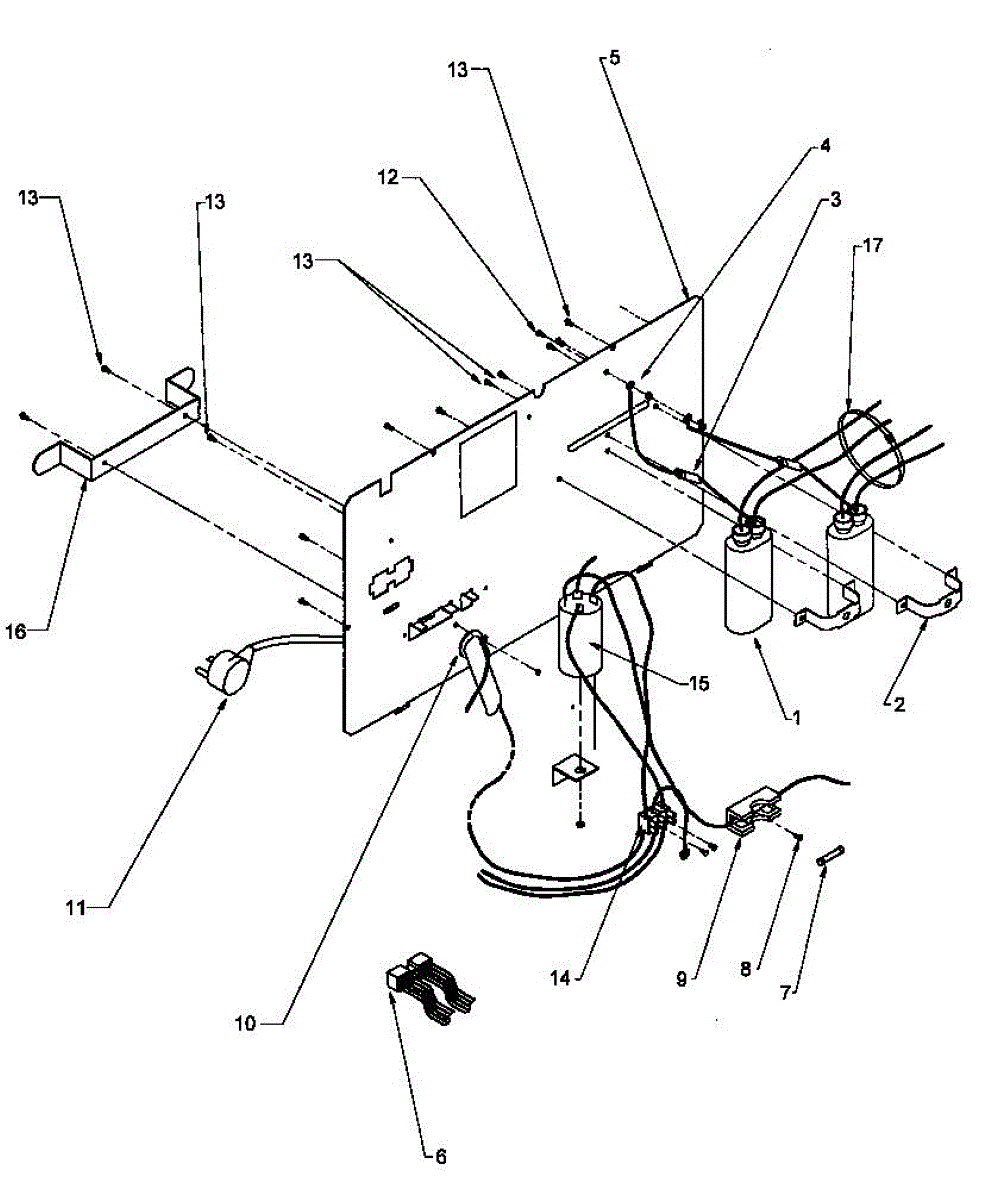

Parts for Amana DE3100ID / P4020008501: 01 - Back Panel And Components Parts

This replacement capacitor restores stable electrical timing and motor/run performance in compatible Whirlpool appliances. It helps the appliance start and run smoothly when the original capacitor has failed or weakened. What it does:

• Provides the stored charge needed for motor start/run circuits and control timing.
• Helps prevent motor hum, slow starts, or failure to start when the capacitor is failing.
• Reduces erratic cycling or intermittent operation caused by a weak capacitor.
• Supports reliable operation of blower, fan or small motor circuits that rely on a dedicated capacitor.

• Disconnect power to the appliance at the source before accessing electrical components.
• Capacitors can hold charge—discharge safely before touching terminals.
• Use insulated tools and avoid shorting terminals; verify correct fit and secure connections.

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)

Ceramic

This fuse block is the appliance electrical terminal used to secure and connect a fuse or wire harness, restoring a safe electrical path for heating and motor circuits. It helps maintain reliable power transfer inside the appliance. What it does:

• Provides a secure mounting point and electrical connection for a fuse or inline connection
• Enables proper power flow between the control and high-voltage components
• Can cause loss of power, intermittent operation, or heating issues when damaged or corroded
• Replaces a worn, cracked, or melted terminal block to restore safe connections

• Disconnect power to the appliance before starting any work
• Handle wiring carefully; secure all splices and fasteners to manufacturer torque recommendations

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This part has been discontinued by the manufacturer and is no longer available.
