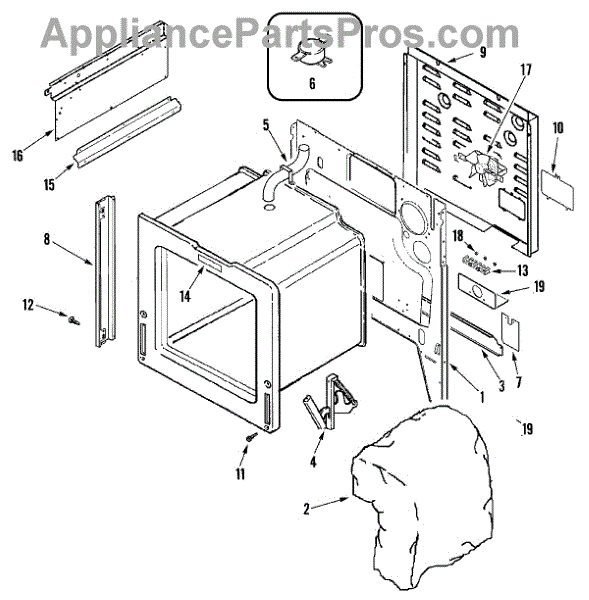

Parts for Amana AES1350BAW: 01 - Body Parts

This oven door hinge is a replacement for many models of ovens. Oven doors will have two hinges. If there is a problem with one or both of the hinges, it means that the door will not open and close properly. It might not stay closed, or it could be difficult to open. This would make it impossible to use the oven, and the hinge should be replaced as soon as possible.An oven door hinge could become damaged for a host of reasons. When the door is open, too much pressure could be placed on the hinge, which could cause it to break. It could become corroded over time, or the spring might wear down. When there are issues, the owner will want to replace the hinge to ensure the door stays closed. Owners should always make sure the oven is off and not powered before beginning work.The oven door hinge will work with certain models of ovens from Whirlpool, Maytag, Amana, Jenn-Air, Norge, Crosley, and Magic Chef. This is a genuine OEM replacement part, and it is sold individually. If both of the hinges need to be replaced, the owner will need to buy two.

This high-limit thermostat is a temperature safety switch that helps prevent overheating by opening the circuit when temperatures exceed safe limits. It restores normal operation once the temperature cools, protecting the appliance and reducing fire risk. What it does:

• Monitors internal temperature and opens the circuit if heat gets too high
• Prevents overheating that can cause damage or burn odors
• Commonly replaces a failed or intermittently tripping thermal safety switch
• Works as part of the appliance's temperature-safety system, not a primary temperature control

• Disconnect power to the appliance before attempting replacement
• Observe proper wiring orientation and secure terminal connections
• Replace only with the exact part specified for your appliance

Size: 10-24X5/16-NI

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block
