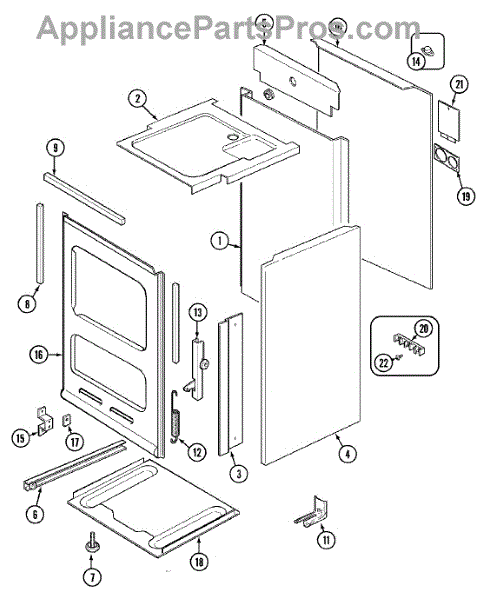

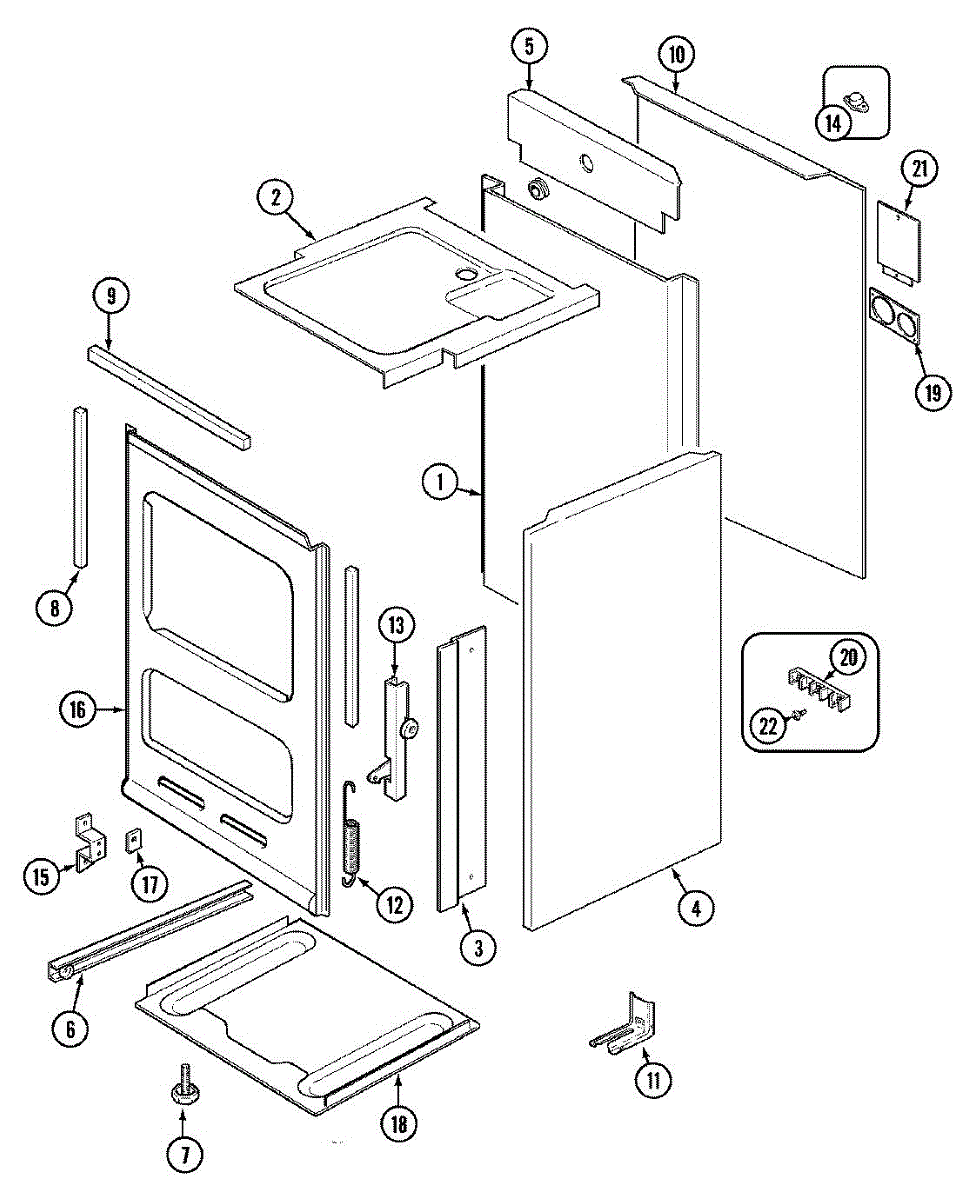

Parts for Magic Chef 1500PAA: 01 - Body Parts

This side door gasket forms the sealing edge for the appliance door to restore a tight seal and reduce leaks, drafts, or moisture build-up. Replacing a worn or torn side gasket helps the door sit flush and improves overall performance. What it does

• Seals the door side edge to stop air, moisture or heat from escaping
• Common symptom of a failing gasket: visible gaps, drafts, water or steam leaks
• Can reduce rattling or uneven door closure caused by a warped or compressed seal
• Restores proper contact between door and frame for consistent operation

• Disconnect power and allow the appliance to cool before starting
• Remove the old gasket carefully; retain any clips or screws if re-used per manufacturer guidance
• Press the new gasket into the channel evenly; check for full seating along the entire side edge
• After installation, close the door and inspect for uniform contact; adjust door alignment if needed

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

For screws order: WP7101P485-60.

Size: 10-24X5/16-NI

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM replacement part for Whirlpool ranges. This screw is used to secure various components of the range, ensuring that parts such as panels, brackets, or burners remain firmly in place during operation. It is designed to withstand the high-heat environment of a range, providing long-lasting durability.

Symptoms of a bad or missing Screw include:

• Loose or misaligned range components
• Rattling or unusual noises during operation
• Difficulty maintaining the range's structural stability

Causes of a failing or missing screw can include normal wear over time, accidental loss during maintenance or repairs, or damage from overtightening. Replacing faulty screws ensures the appliance remains safe and functional.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
