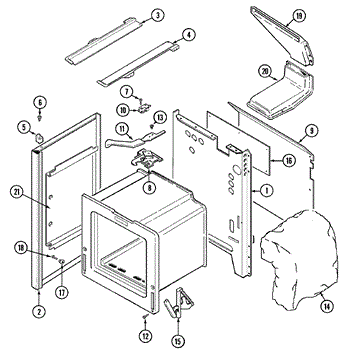

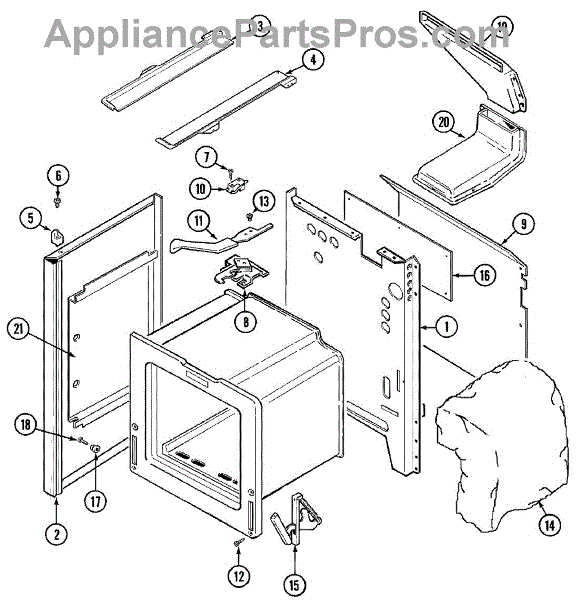

Parts for Magic Chef CGR3740ADH: 01 - Body Parts

This burner box is the oven's metal housing that holds and positions the bake/broil burners and channels gas flames for proper heating. Replacing a damaged box restores safe flame direction and consistent oven operation. What it does

• Supports and secures the bake and broil burners inside the oven cavity
• Directs burner flames and helps ensure even heat distribution
• Helps prevent flame impingement on surrounding components
• Commonly replaced for visible corrosion, warping, or blistered metal that affects flame pattern

• One burner box (oven burner housing) as shown

• Turn off and disconnect power and gas supply before starting work
• Follow OEM service manual for removal and reinstallation steps; handle gaskets and mounting screws carefully
• After installation, check for proper burner alignment and test for gas leaks with a soap solution

Left hand side

Right hand side

Size: 10-24X5/16-NI

Size: 10-24X5/16-NI

This oven door hinge is a replacement for many models of ovens. Oven doors will have two hinges. If there is a problem with one or both of the hinges, it means that the door will not open and close properly. It might not stay closed, or it could be difficult to open. This would make it impossible to use the oven, and the hinge should be replaced as soon as possible.An oven door hinge could become damaged for a host of reasons. When the door is open, too much pressure could be placed on the hinge, which could cause it to break. It could become corroded over time, or the spring might wear down. When there are issues, the owner will want to replace the hinge to ensure the door stays closed. Owners should always make sure the oven is off and not powered before beginning work.The oven door hinge will work with certain models of ovens from Whirlpool, Maytag, Amana, Jenn-Air, Norge, Crosley, and Magic Chef. This is a genuine OEM replacement part, and it is sold individually. If both of the hinges need to be replaced, the owner will need to buy two.

Lower

This spacer secures and maintains proper spacing between adjacent appliance components to prevent rubbing and misalignment, helping restore smooth, stable operation after wear or replacement. What it does:

• Positions and cushions parts to prevent metal-on-metal contact and reduce noise or vibration
• Keeps components aligned for proper fit and function after panel or assembly reinstallation
• Helps maintain clearance for moving parts to avoid abrasion and premature wear
• Useful when replacing worn fasteners, clips, or assemblies that rely on precise spacing

• Disconnect power (unplug or switch off circuit breaker) before beginning any repair
• Handle small parts carefully and retain any associated fasteners; compare new part to old for orientation
• Use basic hand tools as required; avoid forcing parts into place to prevent damage

A genuine replacement screw used to secure components on compatible Whirlpool appliances. This small fastener restores proper assembly and helps stop loose panels, trim, or internal parts from rattling or shifting during operation. What it does:

• Secures panels, brackets, or components to restore proper fit and reduce vibration noise
• Replaces missing or stripped fasteners that cause parts to sit unevenly or move during cycles
• Helps maintain safe, stable appliance operation by keeping components fastened

• Use the matching screwdriver or bit to avoid stripping the head; do not force a damaged screw
• Hand-start threads before using a driver to prevent cross-threading
• Replace any additional corroded or damaged screws with matching fasteners for best fit
• Disconnect power and follow appliance-specific safety steps before accessing internal parts
