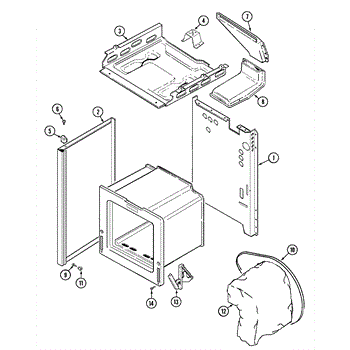

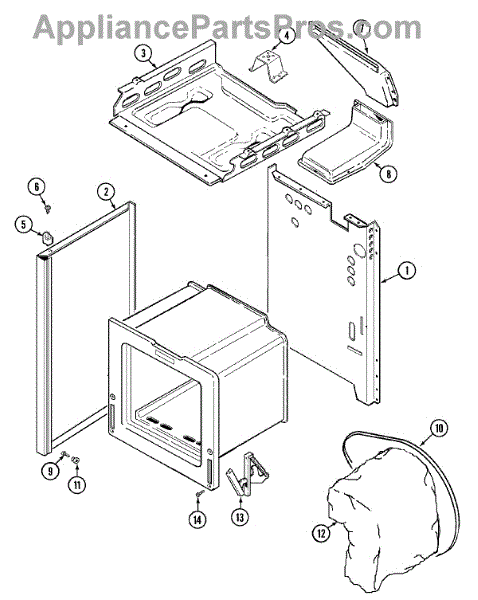

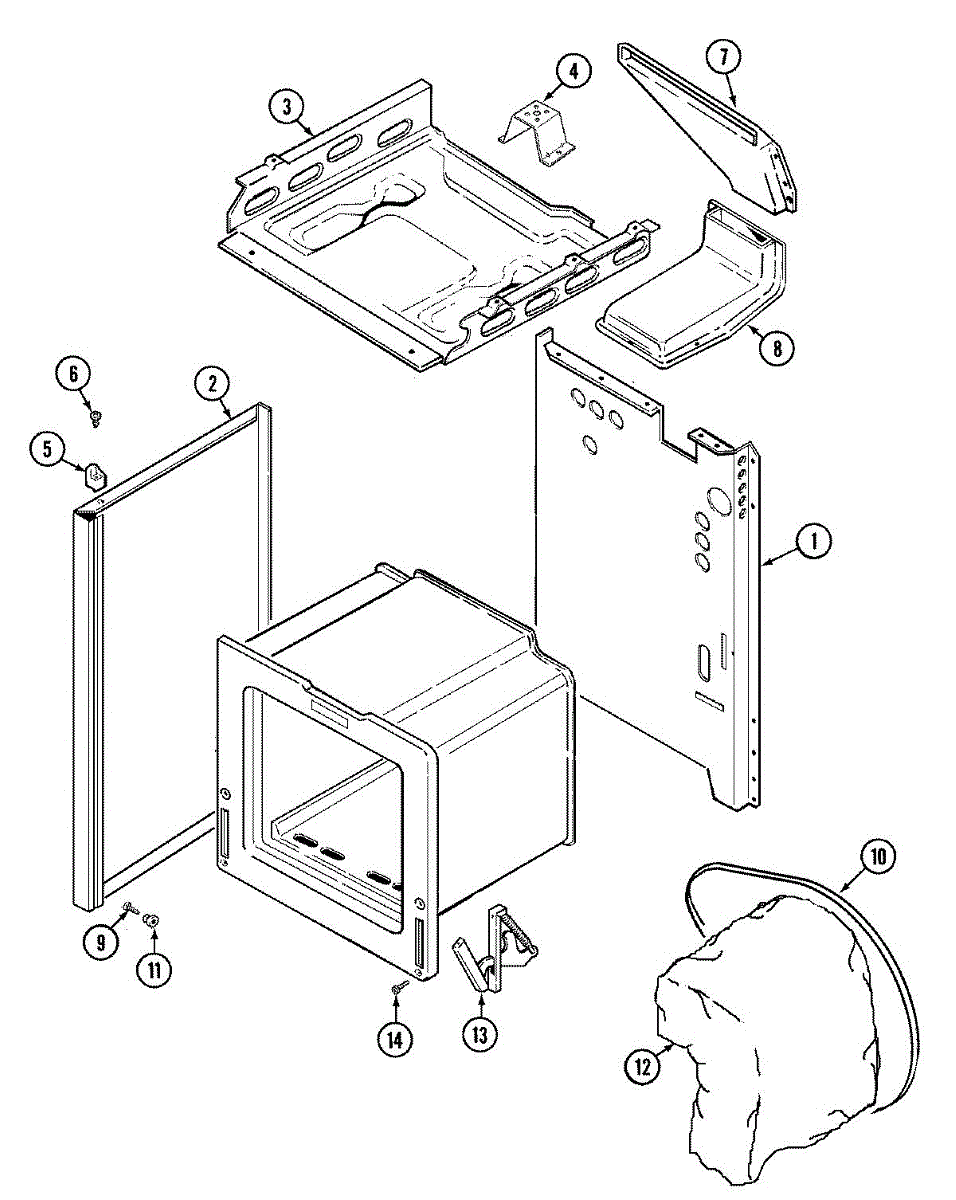

Parts for Maytag PGR4100BDW: 01 - Body Parts

A 10-24 lock nut used to secure threaded fasteners and prevent loosening from vibration. Simple, durable replacement that restores proper fastening where the original nut has worn or failed. What it does:

• Secures shafts, studs, or bolts with 10-24 threads and resists loosening under normal appliance vibration.
• Restores proper tension where a stripped or loose nut causes rattling or parts shifting.
• Helps maintain alignment of panels, brackets, or components that rely on a locked fastener.
• Small hardware solution for common fastening failures—no special part modifications required.

• Disconnect appliance power and water before beginning repairs.
• Use the correct 10-24 threaded fastener and a properly sized wrench or socket to avoid rounding the nut.
• Tighten to a snug fit—do not overtighten or force onto damaged threads.
• Inspect mating threads and replace the bolt/stud if threads are stripped or damaged.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Left hand side

Right hand side

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Size: No. 8

This spacer secures and maintains proper spacing between adjacent appliance components to prevent rubbing and misalignment, helping restore smooth, stable operation after wear or replacement. What it does:

• Positions and cushions parts to prevent metal-on-metal contact and reduce noise or vibration
• Keeps components aligned for proper fit and function after panel or assembly reinstallation
• Helps maintain clearance for moving parts to avoid abrasion and premature wear
• Useful when replacing worn fasteners, clips, or assemblies that rely on precise spacing

• Disconnect power (unplug or switch off circuit breaker) before beginning any repair
• Handle small parts carefully and retain any associated fasteners; compare new part to old for orientation
• Use basic hand tools as required; avoid forcing parts into place to prevent damage

This is a replacement refrigerator door hinge that restores proper door alignment and smooth opening. It helps stop sagging, rubbing, and uneven sealing so the door closes correctly and the appliance maintains temperature. What it does:

• Supports and pivots the refrigerator door for smooth opening and closing
• Restores correct door alignment to prevent gaps and uneven seals
• Stops door sag, rubbing, or binding that can cause unusual wear or noise
• Helps maintain proper door contact to preserve internal temperature

• One door hinge

• Disconnect power (and water supply if applicable) before starting repairs
• Support the door while removing and installing the hinge to prevent damage or injury
• Use basic hand tools; follow manufacturer instructions for torque and alignment

Size: 10-24X5/16-NI
