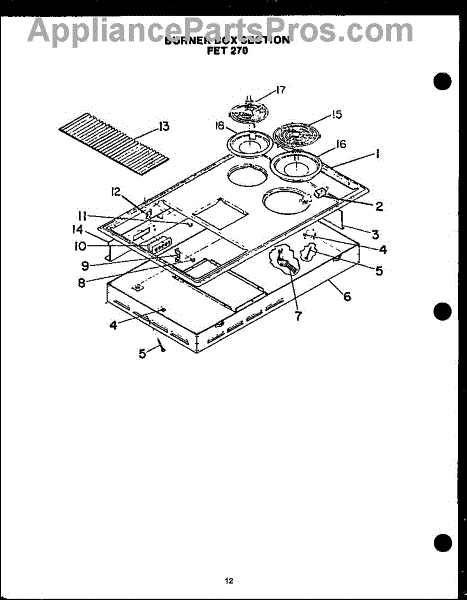

Parts for Amana FET270: 01 - Burner Box Section Parts

For the complete terminal block kit order 12001676.

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A genuine replacement screw used to secure components on compatible Whirlpool appliances. This small fastener restores proper assembly and helps stop loose panels, trim, or internal parts from rattling or shifting during operation. What it does:

• Secures panels, brackets, or components to restore proper fit and reduce vibration noise
• Replaces missing or stripped fasteners that cause parts to sit unevenly or move during cycles
• Helps maintain safe, stable appliance operation by keeping components fastened

• Use the matching screwdriver or bit to avoid stripping the head; do not force a damaged screw
• Hand-start threads before using a driver to prevent cross-threading
• Replace any additional corroded or damaged screws with matching fasteners for best fit
• Disconnect power and follow appliance-specific safety steps before accessing internal parts

This part has been discontinued by the manufacturer and is no longer available.

2100W. Size: 8 inch. Location: Right front.

The Drip Pan Kit is an OEM replacement part for Whirlpool ranges. It is located below the oven cavity to catch any grease, food debris, or condensation. The drip pan keeps the lower interior clean and prevents messes from spreading. Includes 2 large pans and 2 small pans.

Over time, drip pans can become damaged or worn due to exposure to high temperatures, spilled food, and regular cleaning. Causes of a bad drip pan can include rust, discoloration, warping, or holes developing in the pan, which can compromise its ability to catch spills.

Symptoms of a bad drip pan include:

• Grease or residue building up around the oven's base
• An unpleasant cooking odor lingering below
• Drips or food particles escaping onto nearby surfaces
• Rust or holes forming in the metal pan over time

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: If your originals were a two-piece pan and ring, the ring will no longer be used. They are one piece now.

The 8 Inch Drip Pan is an OEM part for Whirlpool ranges and stovetops, designed to catch spills and drips that occur during cooking. This part is essential for keeping your cooking surface clean and reducing the risk of spills burning onto the stovetop or into the oven.

Causes of a bad drip pan can include corrosion over time, accumulation of burnt food and grease making it difficult to clean, or warping due to excessive heat exposure.

Symptoms of a bad 8 Inch Drip Pan include:

• Rust or corrosion visible on the pan
• Difficulty fitting the pan under the burner
• Excessive staining or buildup of grease and burnt food that is difficult to clean

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

1200w. Size: 6 inch. Location: Left front, right rear, and left rear.

The Drip Pan Kit is an OEM replacement part for Whirlpool ranges. It is located below the oven cavity to catch any grease, food debris, or condensation. The drip pan keeps the lower interior clean and prevents messes from spreading. Includes 2 large pans and 2 small pans.

Over time, drip pans can become damaged or worn due to exposure to high temperatures, spilled food, and regular cleaning. Causes of a bad drip pan can include rust, discoloration, warping, or holes developing in the pan, which can compromise its ability to catch spills.

Symptoms of a bad drip pan include:

• Grease or residue building up around the oven's base
• An unpleasant cooking odor lingering below
• Drips or food particles escaping onto nearby surfaces
• Rust or holes forming in the metal pan over time

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: If your originals were a two-piece pan and ring, the ring will no longer be used. They are one piece now.

The Drip Pan, identified as an OEM part for Whirlpool ranges, is designed to fit beneath the burner elements to collect spills, drips, and crumbs during cooking. This accessory helps keep the stovetop clean and reduces the risk of burn-on residues that can be difficult to remove and may cause smoke or odors during future cooking sessions.

Symptoms of a bad drip pan include:

• Persistent stains and residues that are hard to clean
• Rust or corrosion affecting the integrity of the pan
• Misfit that allows spills to bypass the pan

Causes of drip pan degradation often include exposure to high temperatures, acidic spills that can corrode the material, and physical impacts from heavy cookware.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
