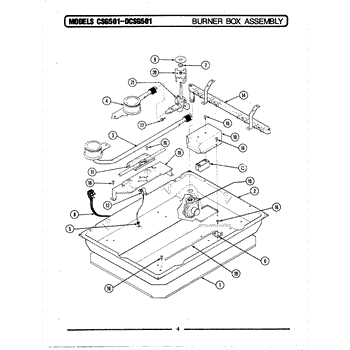

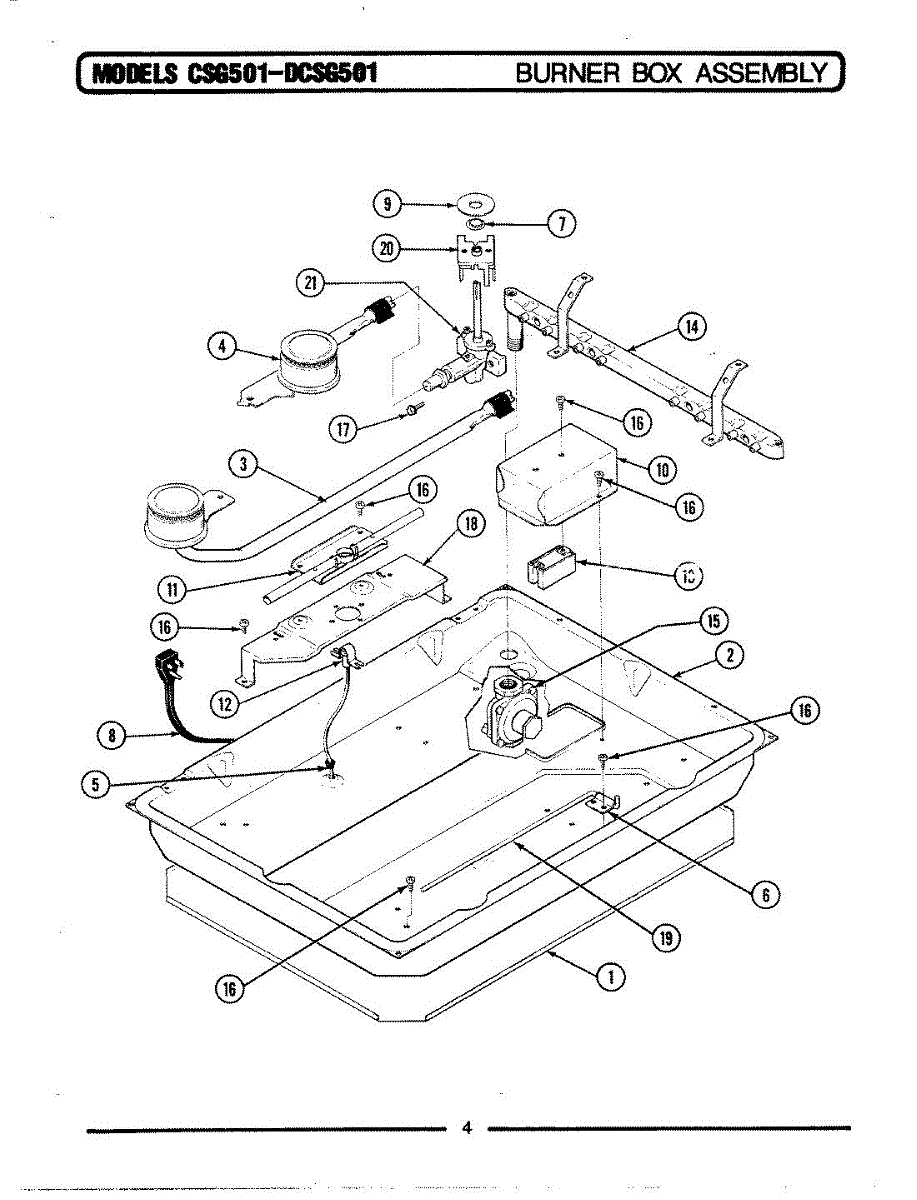

Parts for Maytag LCSG501: 01 - Burner Box Assembly Parts

This part has been discontinued by the manufacturer and is no longer available.

This snap-in bushing provides a low-profile bearing surface to support rotating shafts and reduce wear and noise in appliance assemblies. It restores smooth operation where the original bushing is worn or damaged. What it does:

• Provides a replaceable bearing/sleeve for rotating shafts and posts
• Reduces friction and wear on housing and moving parts
• Helps eliminate rubbing, grinding, or rattling noises during operation
• Maintains correct shaft alignment for smooth rotation

• One snap-in bushing

• Disconnect power before servicing and follow all safety instructions
• Access may require removing panels or covers; inspect surrounding parts for wear
• Press or snap the bushing squarely into the housing until fully seated; avoid deforming it
• Replace any damaged retainers or seals and test operation after reassembly

This power cord kit provides the electrical connection between your range and your home's electrical outlet. The cord includes the appropriate plug configuration and wire gauge to safely deliver power to your electric range. Replace this cord if it's damaged, frayed, or doesn't match your outlet configuration.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

For top surface burners. Configuration: 2 + 0.

This spark ignition switch is used on a gas range cooktop to activate the spark module when a surface burner knob is turned. It connects to the burner valve and sends a signal to create a spark at the burner electrode for ignition. Replace this switch if the burner does not spark when the knob is turned, sparks continuously even after the flame is lit, or if only certain burners fail to ignite.
