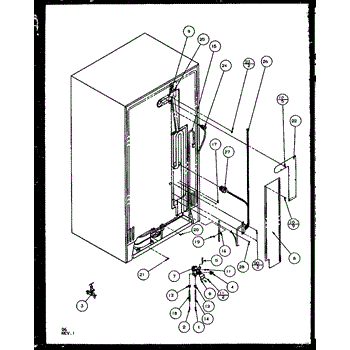

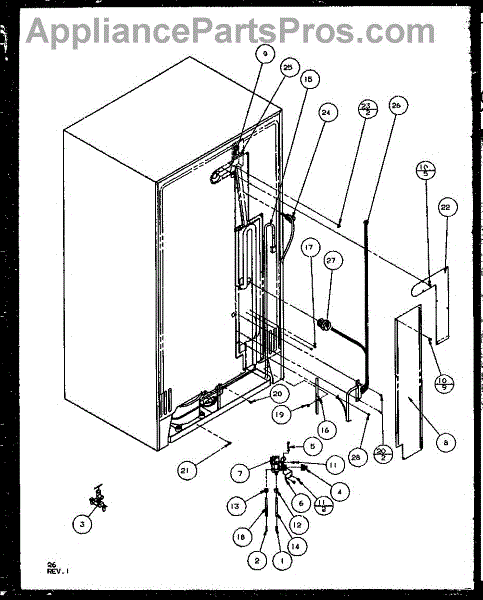

Parts for Amana SQD25MB3E / P1153404W E: 01 - Cabinet Back Parts

This water inlet valve opens and closes to control water entering your appliance. A worn or stuck valve can cause fill problems or leaks—replacing it restores proper water flow and reliable operation.

• Regulates water flow into the unit during fill cycles
• Common symptoms: no water or slow fill, water continues to fill when off, leaks from the valve body, or humming/clicking without water flow
• Typically located where the household water line connects to the appliance

• Disconnect power and shut off the water supply before servicing
• Keep a towel or container handy to catch residual water
• Note hose and wire positions; take a photo for reference and transfer any brackets as needed
• Inspect/flush the supply line and screens; reconnect and check for leaks after installation

This part has been discontinued and is no longer available.

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This genuine replacement screw secures panels and components so your appliance stays stable and trim pieces fit properly. It's a simple, exact-fit fastener intended to replace a missing or damaged mounting screw. What it does:

• Fastens panels, trim, control housings or brackets to the appliance frame
• Restores secure fit when a screw is missing, stripped, or corroded
• Helps eliminate rattling or loose panels caused by a missing fastener
• Matches OEM thread and head style for correct seating and torque

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until parts are firmly seated
• Disconnect power and follow appliance safety guidelines before servicing

Size: 1/4 inch. Nut for plastic water line.

Compression nut for 5/16" plastic water line.

Ice maker water line: 1/4x 8ft.

Size: 8-32 x .312 inch.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Size: 8 x 1-1/4 inch.

This small insert slides into the end of plastic water tubing to reinforce it for a compression-style connection. It helps create a secure, leak-resistant seal at valves and couplings on appliance water lines.

• Supports the tubing wall so the ferrule and compression nut can tighten without collapsing the tube
• Helps prevent drips or seepage at the connection point
• Useful when the tubing end is cracked, deformed, or won't hold a tight seal
• Common symptoms include leaks at a fitting, a connection that won't stay tight, or restricted flow from a pinched tube end

• Shut off the water supply and disconnect power before servicing
• Cut the tubing square; remove any damaged section and deburr the edge
• Slide the compression nut and ferrule onto the tube, fully seat the insert, then assemble the fitting—do not overtighten
• Restore water and check all connections for leaks
