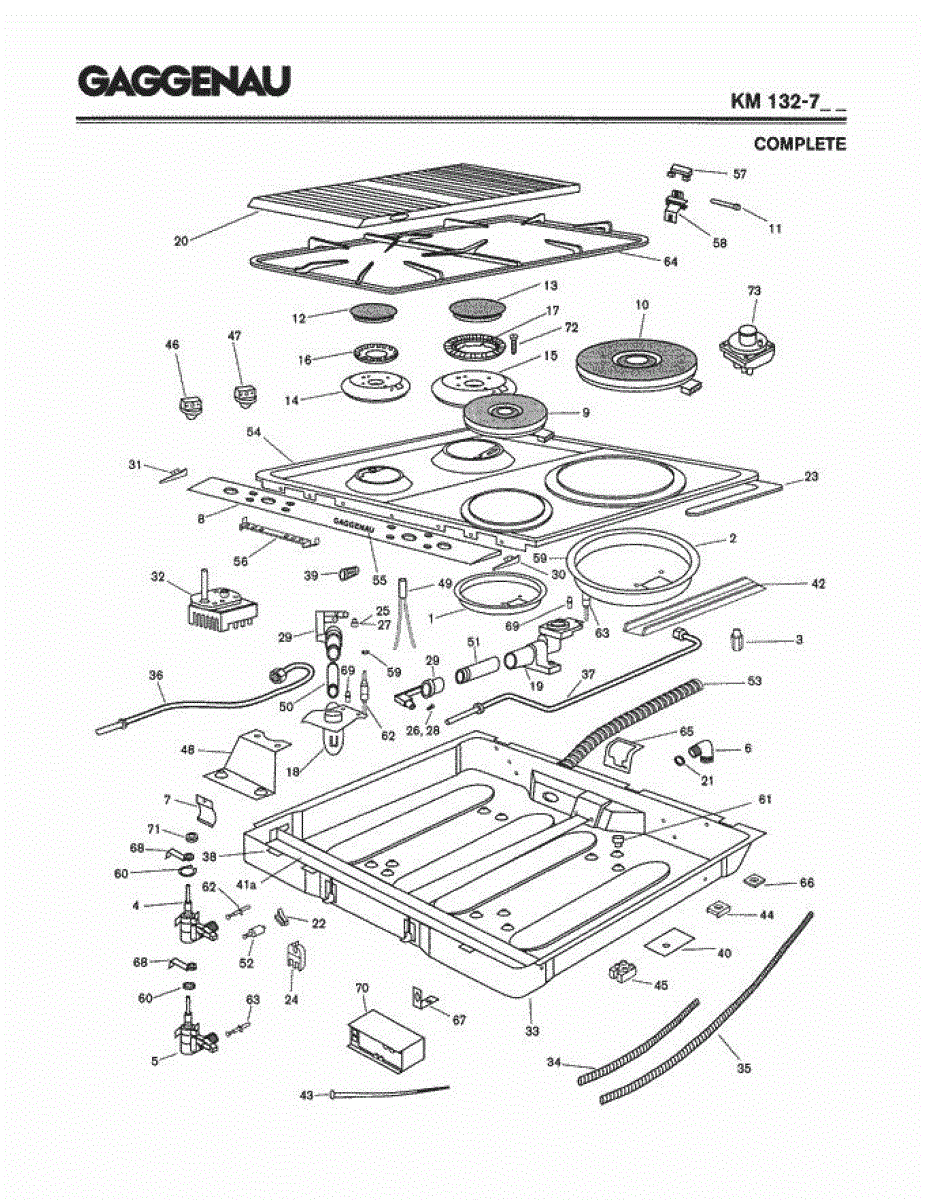

Parts for Gaggenau KM132-7__: 01 - Complete Parts

This fast radiant cooktop element replaces a damaged or non-working surface burner to restore even, reliable heating on compatible electric glass-ceramic ranges. It's a direct-fit heating element designed for 4-wire connections. What it does:

• Heats cookware quickly via the radiant heating surface for stovetop cooking
• Replaces cracked, non-heating, or intermittently heating burners
• Restores consistent temperature response and even heat distribution
• Works with 4-wire cooktop wiring; matches OEM element size and mounting

• One fast radiant cooktop element (180 mm / 7 in., 4-wire)

• Disconnect power at the breaker before servicing the cooktop to avoid shock
• Handle glass-ceramic surfaces carefully to prevent cracking; lift element per your model's service instructions
• Match wire colors/terminals exactly and secure connections;
• Test cooktop function after installation and re-seat any trim or retainers per the manufacturer guide

This bolt serves as a hinge pin or mounting fastener for a microwave door hinge assembly. It secures the hinge mechanism to the microwave frame, allowing the door to pivot open and closed smoothly. Replace this bolt if the door feels loose, sags, or if the original bolt is stripped, corroded, or missing.

This burner lid is the top cap for a three-piece gas cooktop burner. It protects the burner head and helps shape the flame for more even heating and stable performance during cooking. What it does:

• Covers the burner head and directs flame for consistent heat distribution
• Helps maintain stable flame pattern and reliable ignition behavior
• Replaces lids that are cracked, chipped, warped, or corroded
• Can reduce uneven cooking or flickering/unstable flames caused by damaged lids

• Turn off gas supply and power to the appliance and allow all parts to cool fully before servicing
• Remove the old lid and seat the new lid squarely on the burner head; ensure it does not obstruct the igniter or burner ports
• Inspect surrounding burner components for damage; replace any damaged rings, caps, or gaskets as needed

This burner lid is the top cover for a slim two-piece gas cooktop burner, protecting the burner head and helping direct flame. It restores proper burner appearance and helps maintain even ignition and heat distribution. What it does

• Covers the burner head to protect internal parts from spills and debris
• Helps direct gas flow for a consistent flame pattern during cooking
• Can reduce ignition issues caused by food or liquid obstruction on the burner head
• Restores the cooktop's finished look where the original lid is cracked, warped, or missing

• One burner lid (slim 2-piece style)

• Turn off the appliance and gas supply (or unplug) before servicing; allow all parts to cool completely
• Lift off the existing lid and position the replacement so it seats securely on the burner base
• Do not force or overtighten—ensure proper alignment to avoid damaging the burner head

This is a foam sealing strip that creates an airtight seal between panels or the door area of the microwave. It helps prevent heat loss, air leaks, and moisture intrusion. Replace this strip if it appears compressed, crumbling, or if you notice gaps, rattling noises, or reduced heating efficiency.

This spark igniter switch mounts on the burner valve shaft and sends power to the spark module when you turn the knob, creating the clicking spark to light the burner. Replacing a worn switch restores dependable burner ignition.

• Activates the ignition circuit when the control knob is turned
• Common fix for a burner that doesn't click or spark
• Addresses intermittent sparking from a worn or contaminated switch
• Can resolve continuous clicking caused by a stuck/shorted switch after spills or moisture

• Disconnect power and shut off gas before servicing
• Remove the knob and top/panel as needed to access the valve area
• Note wire positions; transfer wires one at a time and align the switch on the valve shaft in the same orientation
• Reassemble and test burner ignition

This is a right-side holder or endcap bracket that secures an internal component in place within the microwave. It provides structural support and proper alignment for the part it holds. Replace this holder if it is cracked, broken, or missing, which can cause the supported component to shift or rattle during operation.

Insulating paper provides electrical insulation in appliances. Replace if damaged, brittle, or showing signs of heat damage. Verify fit with your model number.

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This is a control knob designed for use on a gas range cooktop or oven. It attaches to the control shaft and allows you to select burner or oven temperature settings. Replace this knob if it is cracked, broken, or if the printed markings have worn off, making it difficult to set the correct heat level.

A replacement control knob that restores user control for range/oven cooktops. Fits the listed Bosch control shafts to provide a solid grip and clear position feedback when the original knob is cracked, loose, or missing. What it does:

• Replaces a worn, cracked, or missing control knob so you can safely set heat levels and oven functions.
• Provides a secure fit on the control shaft for reliable on/off and temperature selection.
• Restores clear tactile and visual detents for accurate setting changes.
• Helps stop slipping or spinning knobs that prevent proper control.

• Disconnect power (or turn off gas supply for gas ranges) before replacing knobs.
• Most knobs pull straight off the shaft; gently pull while wiggling if needed. Do not force.
• If a retaining screw is present, loosen it first; keep hardware for reassembly.
• If the new knob does not fit, stop and verify shaft style and part number before forcing.

This bracket pin secures a door bracket to the hinge assembly so the door opens and closes smoothly. Replace a worn or bent pin to restore proper door alignment and reduce sagging or noisy operation. What it does:

• Anchors the door bracket to the hinge so the door pivots correctly
• Prevents lateral play that can cause door sag or misalignment
• Restores secure attachment when original pin is bent, worn, or broken
• Helps eliminate rubbing, binding, or uneven closing related to a loose bracket

• One bracket pin

• Disconnect power and follow all safety steps in your appliance manual before starting
• Basic hand tools are typically required; access may involve removing the door or inner panels
• Inspect surrounding bracket and hinge components; replace any damaged parts to avoid repeat failure

This electrode is used in gas range burner ignition systems. It generates a spark to ignite the gas when the burner is turned on. Replace this part if the burner clicks but fails to light, produces weak or inconsistent sparks, or shows visible cracks or carbon buildup on the electrode tip.

Range switch holder secures control switches in place. If switches are loose or falling out of the control panel, this holder may need replacement.

Bottom hinge for lawn tractor hood or deck assembly. Replace if hinge is bent, cracked, rusted, or no longer secures properly. Restores proper alignment.

This small washer secures the thermocouple in place within the oven's gas valve assembly. Replace if the oven won't stay lit, frequently goes out during operation, or if the thermocouple appears loose or wobbly.

This is a cutting disc used in range and oven assemblies. It serves as a component in the internal mechanism of the appliance. Replace this disc if it shows signs of wear, cracking, or damage that affects the operation of the associated assembly.

M4 square nut for securing components in appliances. Replace if stripped, corroded, or missing to properly fasten panels and parts during assembly.
