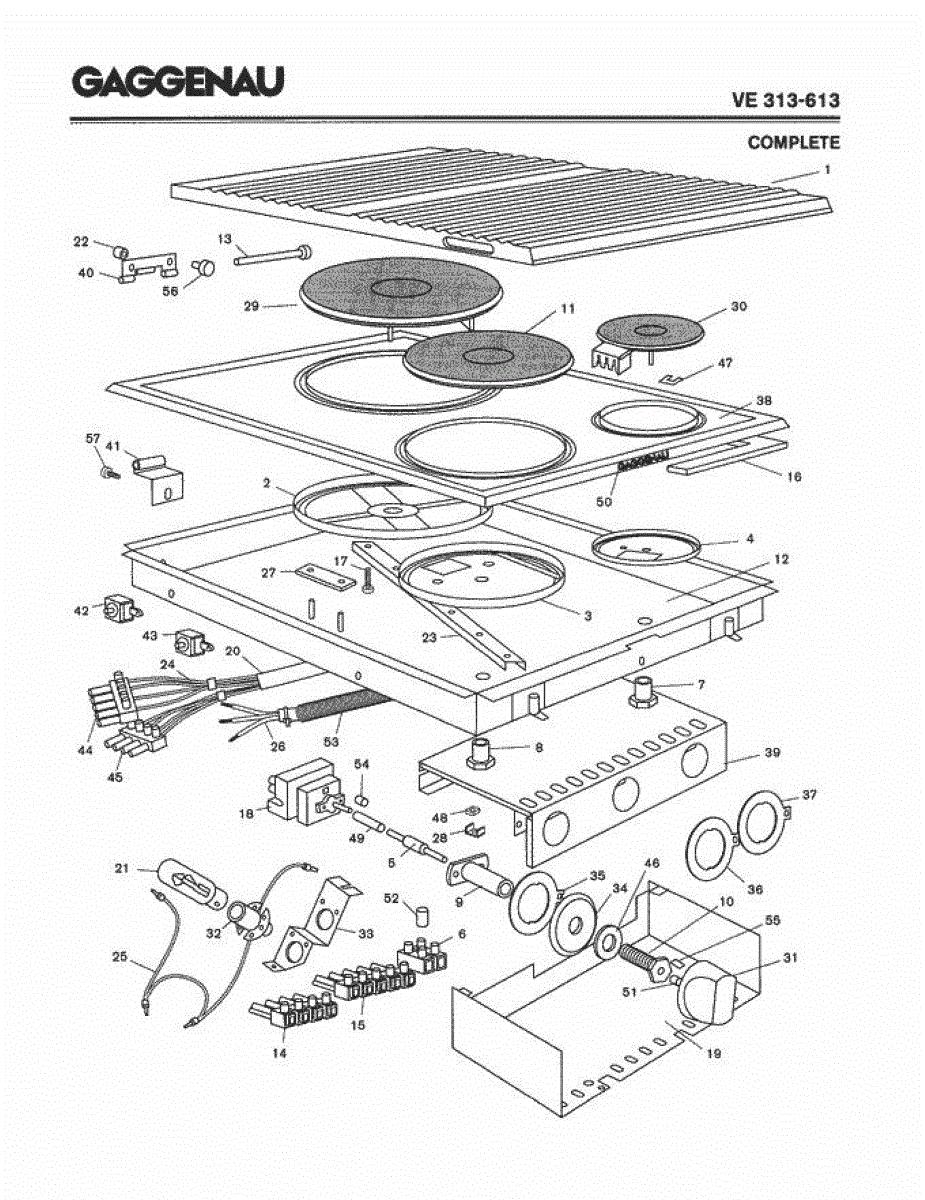

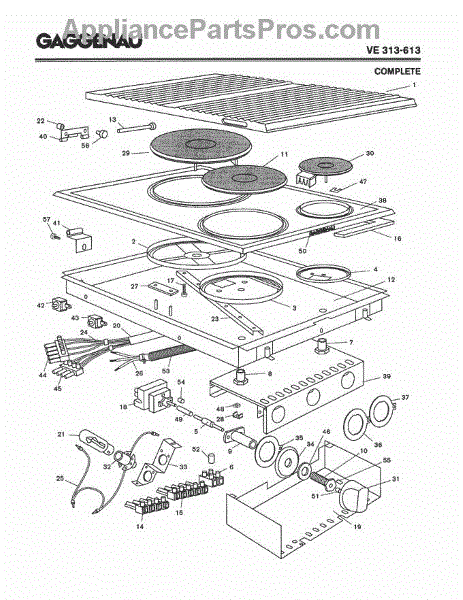

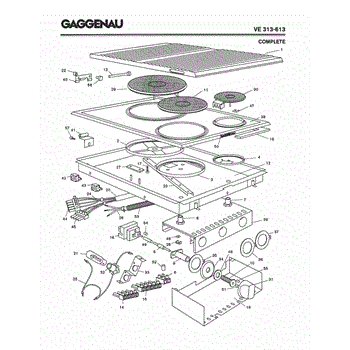

Parts for Gaggenau VE313-613: 01 - Complete Parts

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This fast radiant cooktop element replaces a damaged or non-working surface burner to restore even, reliable heating on compatible electric glass-ceramic ranges. It's a direct-fit heating element designed for 4-wire connections. What it does:

• Heats cookware quickly via the radiant heating surface for stovetop cooking
• Replaces cracked, non-heating, or intermittently heating burners
• Restores consistent temperature response and even heat distribution
• Works with 4-wire cooktop wiring; matches OEM element size and mounting

• One fast radiant cooktop element (180 mm / 7 in., 4-wire)

• Disconnect power at the breaker before servicing the cooktop to avoid shock
• Handle glass-ceramic surfaces carefully to prevent cracking; lift element per your model's service instructions
• Match wire colors/terminals exactly and secure connections;
• Test cooktop function after installation and re-seat any trim or retainers per the manufacturer guide

Replace damaged or corroded 4-wire female terminal connectors that cause appliance power issues or intermittent operation. Simple plug-in repair.

M4 rubber gasket creates watertight seal and reduces vibration around fasteners. Replace when worn, cracked, or leaking. Verify fit with your model number.

This strain relief secures the cooktop power cord where it enters the appliance, protecting wiring from pull damage and reducing stress on the terminal connection for safer, more reliable operation. Ideal when the cord area shows wear or looseness. What it does:

• Holds the power cord firmly at the cooktop entry to prevent tugging on internal wiring
• Reduces risk of frayed wires, loose terminals, and intermittent power caused by cord movement
• Helps maintain a stable electrical connection at the terminal block
• Commonly replaced when the cord jacket is damaged or the cord pulls freely at the entry point

• One strain relief as shown

• Disconnect electrical power at the breaker before any service; confirm power is off with a multimeter
• Access typically requires removing the cooktop/back panel to reach the terminal area
• Secure the cord under the strain relief and tighten fasteners per OEM orientation; avoid overtightening

Oven not heating or baking unevenly? This 3.5-inch solid heating element restores proper temperature. Moderate DIY repair with basic hand tools.

This VG 352 hinge secures and guides an appliance door for smooth opening and reliable closure, restoring proper alignment and operation. Designed to match the OEM fit and function for straightforward replacement. What it does

• Provides a secure pivot point so the door opens and closes smoothly
• Restores proper door alignment and helps eliminate sagging or uneven gaps
• Helps ensure the door seals correctly to improve performance
• Reduces rattling or sticking caused by worn or damaged hinges

• One VG 352 hinge (single hinge as shown)

• Basic mechanical skills and common hand tools required
• Disconnect power (and water supply for dishwashers) before servicing
• Keep track of screws and any trim; reinstall in the original orientation

Appliance overheating or shutting off unexpectedly? This 253°F thermal protector prevents damage by cutting power when temperatures exceed safe limits.

This 4-wire male terminal connector provides a secure electrical connection for compatible Bosch appliances, restoring reliable power transfer to the wiring harness. Use it when the existing connector is damaged, corroded, or loose. What it does:

• Replaces a damaged or worn 4-pin male terminal to restore proper electrical contact
• Secures wiring to the appliance's harness and prevents intermittent power loss
• Helps eliminate symptoms such as burners, elements, or controls that fail to power reliably
• Meets OEM fit and form for straightforward replacement where this style connector is specified

• One 4-wire male terminal connector

• Recommended for technicians or experienced DIYers familiar with appliance electrical work
• Disconnect power at the breaker before inspecting or replacing the connector
• Verify correct wiring orientation and tightness of crimp or screw termination per service diagram
• If terminals or harness are corroded or damaged beyond the connector, replace the affected wiring or harness assembly

This 3-pin harness connects three appliance circuits to a component, restoring a secure, color-coded electrical link for reliable operation. Use it to replace damaged, corroded, or loose wiring connections. What it does:

• Provides a secure three-wire electrical connection between appliance wiring and a component
• Restores proper continuity when original connector is cracked, burned, or has loose terminals
• Helps eliminate intermittent power, component failures, or electrical arcing caused by damaged connectors
• Matches wire color/terminal arrangement for straightforward replacement

• Disconnect power to the appliance before starting any repair
• Verify wire colors and terminal positions match the original connector before cutting or mating
• Use proper crimping or secure push-fit technique; ensure terminals are fully seated
• If corrosion or wire damage extends beyond the connector, replace or repair affected wiring as needed

M4 square nut for securing components in appliances. Replace if stripped, corroded, or missing to properly fasten panels and parts during assembly.

Replacement name plate for your appliance. Installs on the exterior to display model information. Needed when original plate is damaged, faded, or missing.

This is a slide rail that supports and guides a drawer in and out of a range or oven. It mounts inside the cavity where the storage or warming drawer sits, allowing smooth opening and closing. Replace this part if the drawer sticks, wobbles, does not glide smoothly, or falls off its track.

This small spring fits behind the control knob to provide tension and a positive, secure feel. Replace it to restore proper knob height and a snug fit when the knob feels loose, wobbly, or won't stay seated.

• Provides spring tension between the knob and control shaft for proper engagement
• Helps keep the knob centered and at the correct height on the control panel
• Restores firm, consistent knob feel during operation
• Common symptoms: loose or wobbly knob, knob doesn't stay seated or sits unevenly

• Disconnect power; for gas appliances, also shut off the gas supply
• Pull the knob straight off the shaft; note the spring's position/orientation
• Remove the old spring and seat the new spring on the shaft or in the knob recess
• Reinstall the knob and check for smooth operation; do not force the knob onto the shaft

Replacement screw for your range. Secures panels, components, and trim pieces. Order a new screw if yours is stripped, missing, or damaged during repair.
