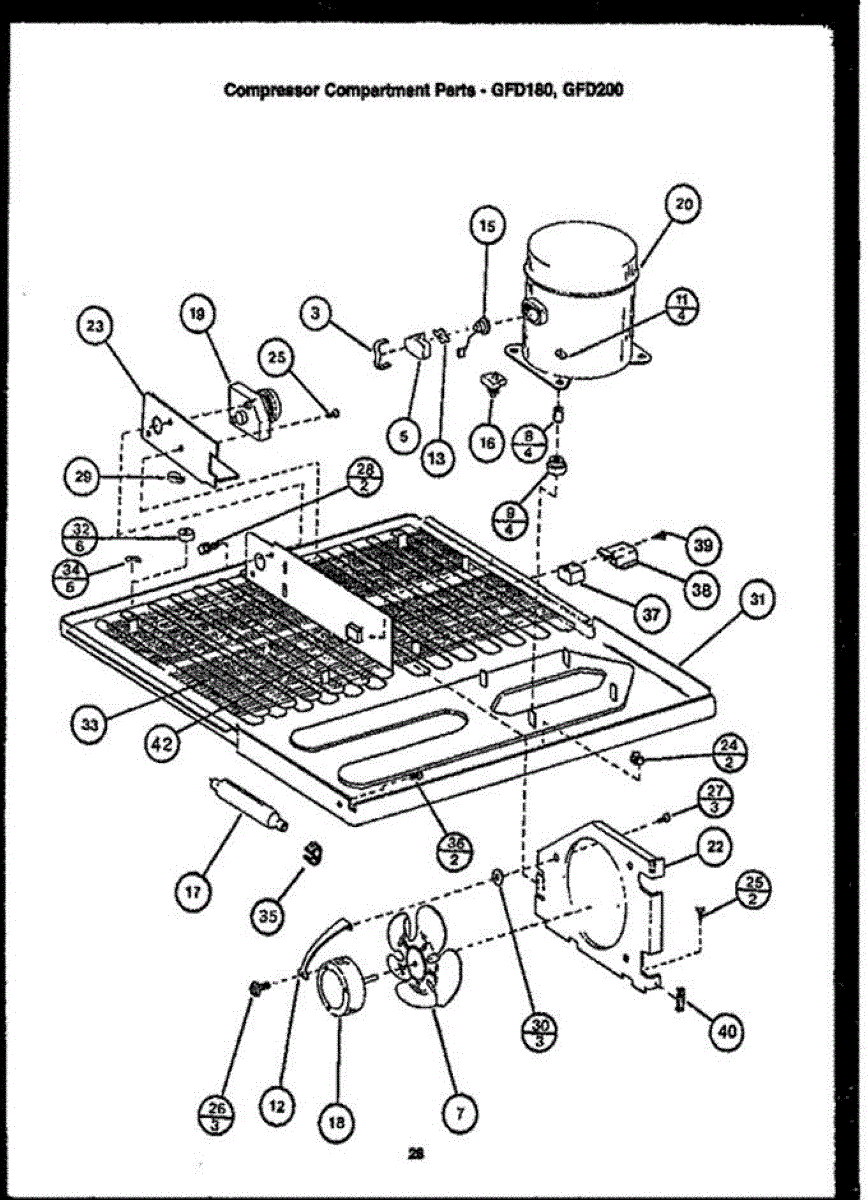

Parts for Amana GFD200: 01 - Compressor Compartment Parts

This start relay controls power to the compressor's start winding so the refrigerator can start and run. Replacing a weak or burned relay restores dependable compressor start-up and can stop repeated clicking with warming temperatures.

• Energizes the compressor's start winding to provide initial torque, then disengages from the circuit
• Common failure symptoms: refrigerator not cooling or intermittently warm; compressor hums/clicks and won't start; relay rattles, smells burnt, or shows heat damage; overload trips
• Helps prevent hard-start conditions that stress the compressor
• The relay contacts are open/shorted, the compressor may fail to start and cycle off on overload

• Disconnect power before servicing; wear appropriate PPE
• Access the rear machine compartment; remove the relay cover on the compressor. Note wire positions, pull the old relay straight off the compressor pins, transfer wires, and fully seat the new relay in the same orientation
• If equipped, safely discharge the run capacitor; inspect the overload, wiring, and terminals for heat damage and address as needed
• Reinstall the cover. If the compressor still won't start, further diagnosis of the start device, capacitor, or compressor is required

This drier is the factory replacement air/gas flow assembly that helps maintain proper airflow and drying performance in compatible laundry dryers. Replacing a worn drier restores consistent drying and reduces overheating risk. What it does:

• Directs and stabilizes heated air through the drum for efficient drying
• Helps prevent restricted airflow that can cause long dry times or damp laundry
• Supports safe exhaust flow to reduce the chance of overheating or lint buildup
• Works with the dryer's heating and ventilation components to maintain normal operation

• One drier assembly as shown

• Disconnect electrical power before beginning service; if this is a gas dryer, turn off and disconnect the gas supply
• Follow the dryer manufacturer's service manual for disassembly and reassembly steps
• Use appropriate hand tools and avoid forcing parts; inspect venting and lint traps while replacing

This OEM Replacement Part is a high-quality, 2-watt condenser fan motor for Whirlpool refrigerators.The motor is designed to optimize your refrigerator's cooling performance. This 115-volt motor operates with a clockwise rotation.

Symptoms of a bad condenser fan motor kit include:

• Gradual rise in interior freezer temperatures
• Inability to maintain consistent cooling performance
• Loud buzzing or grinding noises coming from inside
• Tripped breakers or failure to restart after service

Causes stem from normal wear of ball bearings as the high-efficiency motor operates continuously. Exposure to dust or debris introduced through openings accelerates wear over many years of use.

This OEM part is also compatible with brands including Kenmore, KitchenAid, and Danby.
