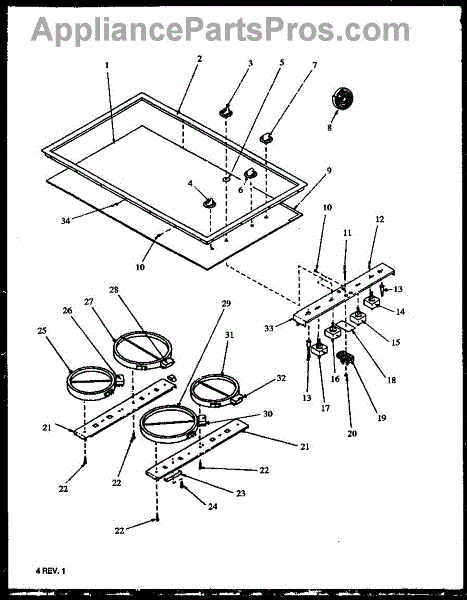

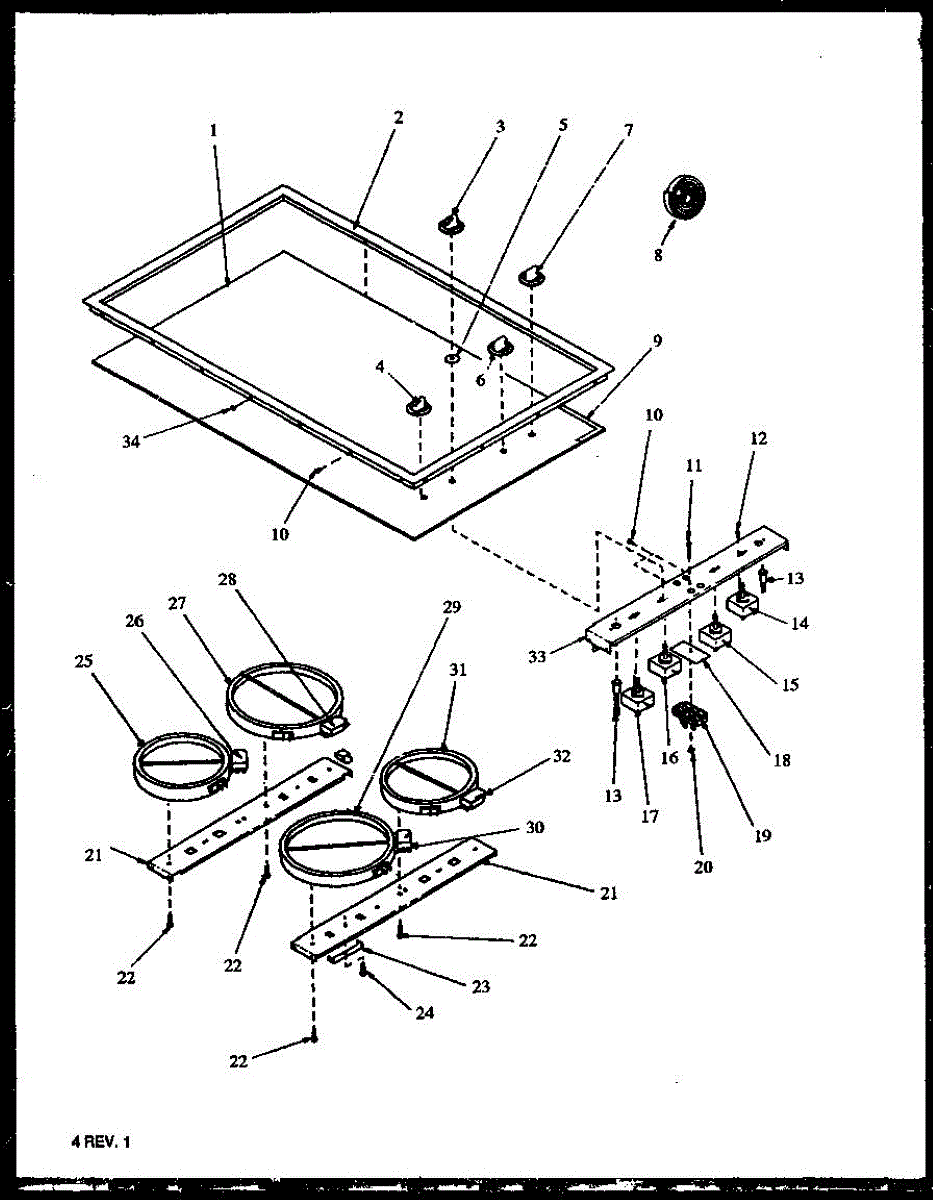

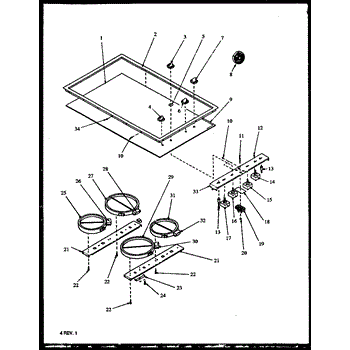

Parts for Amana AK2H35E1 / P1131547N E: 01 - Control Panel Parts

This is a one inch piece of tape

Mounting screw secures panels, brackets, and trim to the appliance frame. Replace if screw is stripped, missing, or damaged to restore secure fastening.

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This part has been discontinued and is no longer available.

This infinite switch controls heat levels for one cooktop burner, restoring precise temperature regulation for electric ranges. Replaces a worn or faulty burner control to help burners cycle and hold set heat. What it does:

• Regulates power to a single surface burner so you can set low to high heat levels
• Commonly used when a burner won't heat, has no low/high change, or heats inconsistently
• Steps the element through variable heat settings instead of a simple on/off
• Works with standard rotary knob controls

• Disconnect power at the breaker before accessing the range surface or control area
• Handle internal wiring carefully; match wire colors/positions during reinstallation
• If mounting screws, terminals, or insulation are damaged, replace them before use

A small fastening nut that secures the top pilot assembly on gas ranges and ovens, keeping the pilot tube and components properly positioned for reliable ignition. Use when the original nut is stripped, loose, or missing. What it does:

• Secures the top pilot/pilot tube to the burner assembly so the pilot remains correctly aligned.
• Helps maintain a stable pilot flame by keeping components from shifting.
• Commonly replaced when the pilot assembly is loose, the pilot won't stay lit, or there is visible wear on the nut.
• Simple replacement part that restores proper mechanical fastening for the pilot.

• Turn off gas supply and power to the appliance before beginning any work.
• Use the correct-sized wrench or socket to avoid rounding the nut; tighten just until secure — do not overtighten.
• Inspect pilot tube and surrounding fittings for damage or leaks when replacing this nut.

Restore reliable, even heat to a single cooking zone with this surface heating element. It replaces a failed top burner element on an electric range or cooktop so pots and pans heat consistently for everyday cooking. What it does:

• Supplies controlled heat to one cooktop burner zone
• Helps resolve: burner won't heat, intermittent heating, or very slow heat-up
• Can address uneven heating or visible damage to the element
• Replaces an open/failed element to restore normal cooking performance

• 1 surface heating element

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Access the element per your model's service manual; support the cooktop if lifting a glass top
• Note wire locations and transfer connections one at a time to the new element
• Secure the element with existing brackets/clips as designed, then test operation before reassembly

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.
