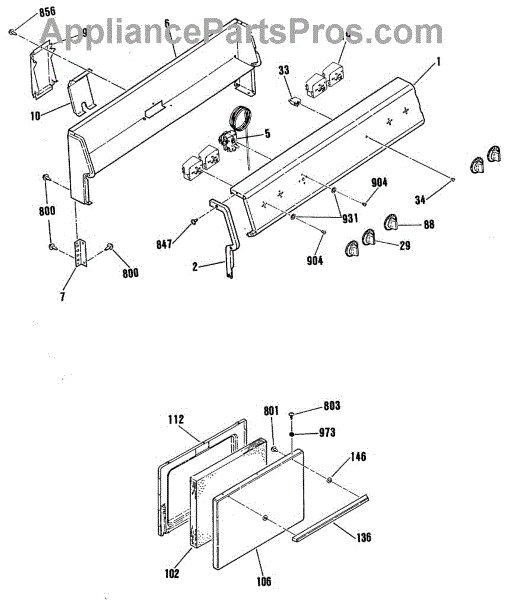

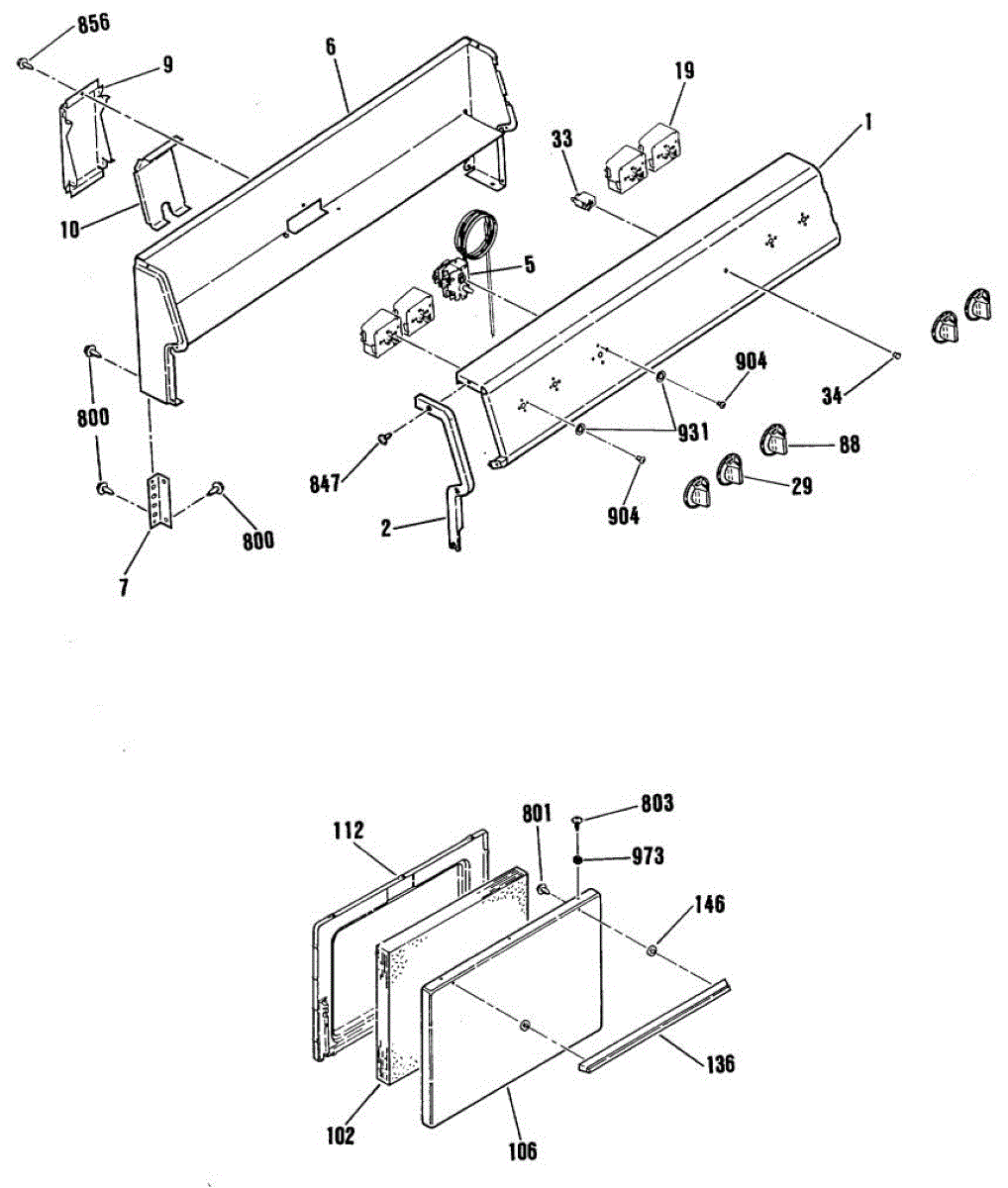

Parts for Ge RB502S2WH: 01 - Section1 Parts

This oven thermostat regulates cavity temperature to the set point on your range. Replacing a worn thermostat restores accurate heating and proper cycling, helping resolve undercooked or overbaked results, long preheat times, and temperature drift.

• Senses oven temperature via a capillary bulb and opens/closes internal contacts to maintain the selected setting
• Fixes ovens not reaching set temperature or running too hot/too cold
• Addresses ovens that won't cycle off or heat continuously
• Helps improve erratic temperature swings, inconsistent baking results, and extended preheats

• Disconnect power and allow the appliance to cool completely; turn off gas supply if applicable
• Note the exact routing of the sensing bulb/capillary; do not kink or sharply bend it, and reinstall bulb clips in the original location
• Transfer mounting hardware and the control knob as needed; align the shaft to match the original orientation
• After installation, verify operation with an oven thermometer; for gas models, leak-check any disturbed connections with an approved solution

6" element switch

The Infinite Switch is an OEM replacement part for GE ranges. This switch controls the operation of the large heating elements on the cooktop. The element switch is responsible for regulating power delivery to the various heating elements based on temperature and function settings. It allows for precise heating control to maintain optimal cooking temperatures. Over time, element switches can wear down from repeated use and heat exposure.

Causes of a bad switch include burned-out or loose internal connections, damaged terminals, or defects in the electronic components.

Symptoms of a bad element switch include:

• Inability to turn elements on or off
• Elements not heating properly or unexpectedly shutting off
• Inconsistent or fluctuating oven or surface temperatures
• Electronic display or control issues

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light installs in the control panel of compatible ranges/cooktops and illuminates to show when a heating element or function is active. Replacing a failed lamp restores clear, at-a-glance status feedback during use.

• Provides visual confirmation when a surface element or function is turned on
• Common failure symptoms include no light, intermittent flicker, or very dim illumination
• May also be referred to as a pilot light or panel indicator
• Visual indicator only; does not control heating performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the console/backguard area; note wire positions and move them to the new light one at a time
• Seat and secure the light, restore power, and test operation before reassembly

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

A replacement cabinet side panel that restores the refrigerator's exterior look and protects internal components from bumps, moisture, and corrosion. Use this panel to repair dents, rusted or punctured cabinet sides for a finished appearance. What it does:

• Covers and protects the refrigerator's internal insulation, wiring, and components along the side
• Restores the appliance's exterior appearance after dents, rust or impact damage
• Helps prevent moisture intrusion and air drafts around the cabinet side
• Maintains cabinet stability and helps keep internal components secure

• Disconnect power to the appliance before starting any work and remove food per manufacturer guidance
• Typical replacement requires removing trim, doors, and possibly shelving to access mounting screws—have basic hand tools ready
• Wear gloves to avoid sharp edges and protect the finish during handling
• If mounting clips or insulation are damaged, replace them as needed; for correct fasteners and alignment

ST10-16 X 7/16"

ST10-16 X 7/16"

Nickel

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
