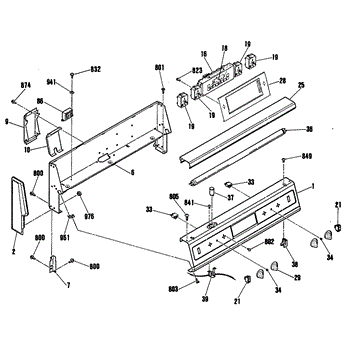

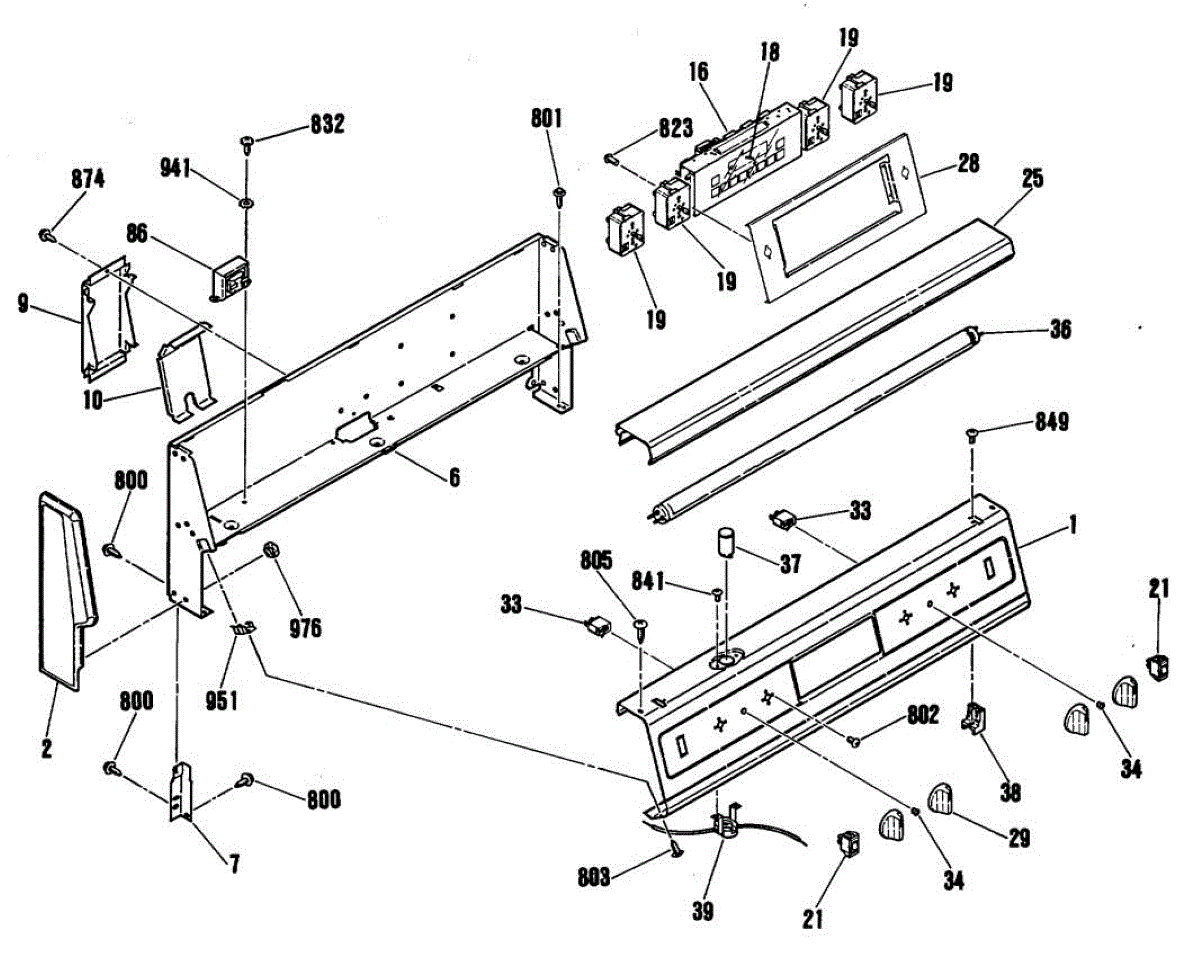

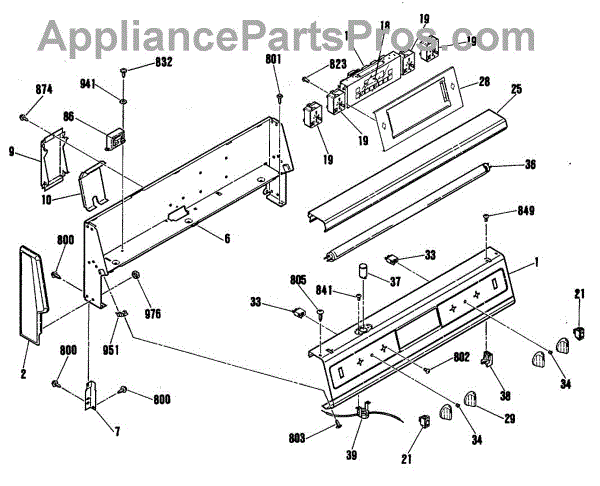

Parts for Ge RB767GN4WH: 01 - Section1 Parts

6" element switch

The Infinite Switch is an OEM replacement part for GE ranges. This switch controls the operation of the large heating elements on the cooktop. The element switch is responsible for regulating power delivery to the various heating elements based on temperature and function settings. It allows for precise heating control to maintain optimal cooking temperatures. Over time, element switches can wear down from repeated use and heat exposure.

Causes of a bad switch include burned-out or loose internal connections, damaged terminals, or defects in the electronic components.

Symptoms of a bad element switch include:

• Inability to turn elements on or off
• Elements not heating properly or unexpectedly shutting off
• Inconsistent or fluctuating oven or surface temperatures
• Electronic display or control issues

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

This is a small replacement screw used to secure appliance panels and components, restoring proper fit and preventing loose parts. It's a direct-fit fastener commonly used in various GE appliance assemblies. What it does

• Secures trim, panels, brackets or control components to prevent movement and rattling.
• Replaces missing, stripped, or corroded screws that can allow gaps or vibration.
• Helps restore proper alignment of parts that can cause noise or loose-feeling doors/panels.

• Use the matching screw hole and thread; do not force or cross-thread the screw.
• Hand-start the screw, then tighten with the correct screwdriver to a snug fit—avoid over-tightening.
• Disconnect power before working near electrical components; follow appliance safety procedures.

ST10-16 X 7/16"

ST10-16 X 7/16"

Nickel

This replacement screw secures panels and small components on your appliance to restore proper fit and help prevent rattling or loose parts. Use it wherever the original fastener has been lost or damaged. What it does:

• Secures trim, panels, or mounting brackets to keep components aligned
• Prevents vibration and rattling caused by loose fasteners
• Replaces missing or stripped screws that compromise panel fit
• Restores reliable fastening so doors and controls sit correctly

• Disconnect power before accessing internal panels or components
• Use the correct driver to avoid stripping the screw head
• Thread carefully and do not overtighten to prevent damage
• Keep small parts away from children and pets

This wire harness connects the appliance's door lock switch to the main control, restoring the electrical connection needed for the lock/switch to communicate with the control board. Replaces a damaged or frayed lock-switch lead for reliable operation. What it does

• Provides the electrical path between the door lock/latch switch and the control board.
• Restores proper signaling when a worn or broken harness causes lock faults or prevents cycle start.
• Helps stop intermittent door-lock errors caused by corroded or broken wires or terminals.
• Used when the door will not lock, the unit won't start, or the control reports a lock/switch fault.

• One lock switch wire harness.

• Disconnect power to the appliance before starting any repairs.
• Verify connectors match and seat fully; replace any damaged terminals or housings.
• Handle the lock assembly and connectors gently to avoid damaging the door latch or harness.
