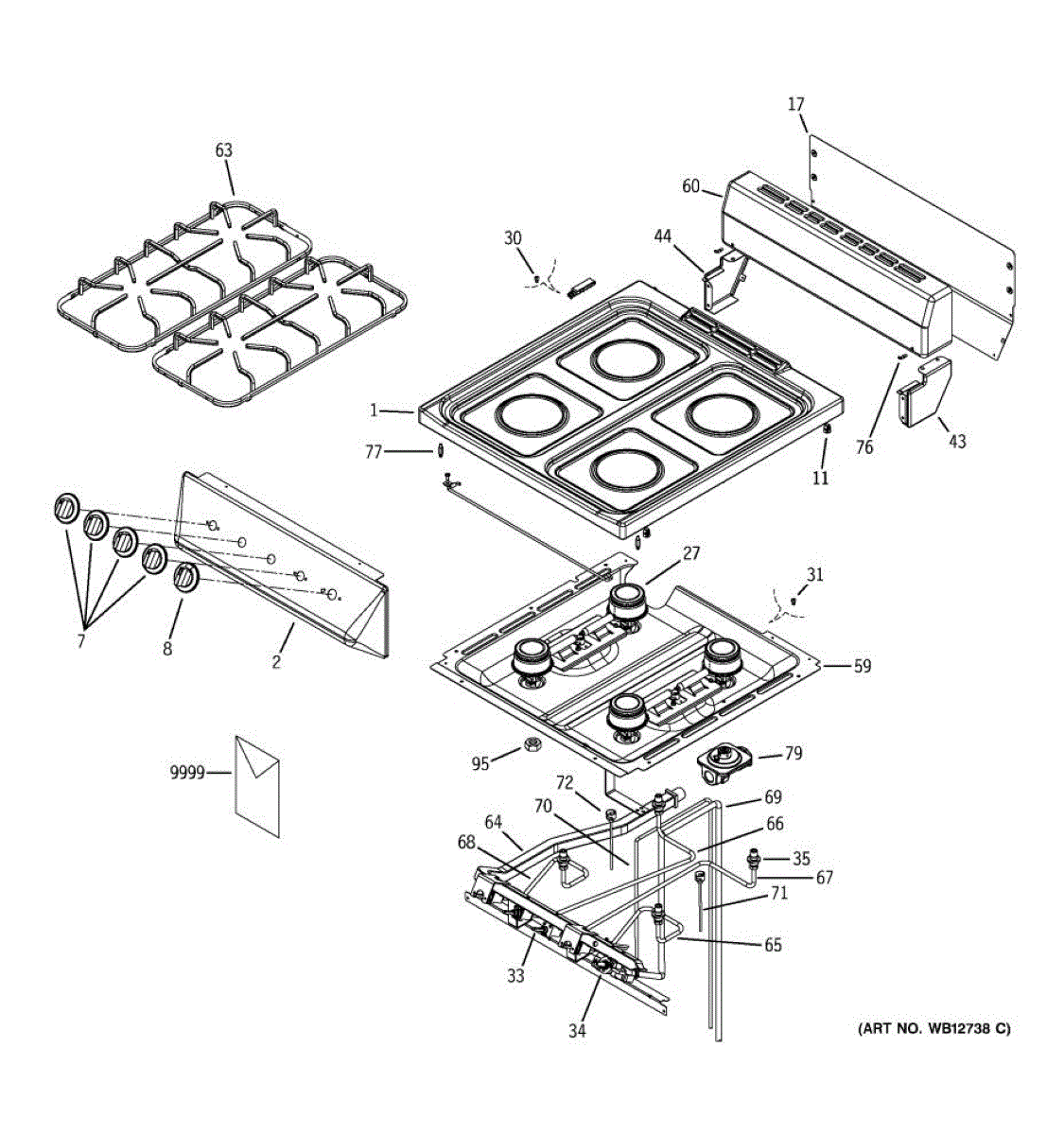

Parts for Ge RGA620PF1WH: 01 - Control Panel & Cooktop Parts

This part has been discontinued and is no longer available.

The Double Burner Kit is an OEM part for GE gas ranges. This kit includes the necessary components to replace the double burner, which is crucial for efficient cooking on GE gas stoves. The double burner provides two separate flame sources, allowing for versatile cooking options with different heat levels.

Causes of a bad double burner can include normal wear and tear, clogs from food debris, exposure to high temperatures, or physical damage. These issues can hinder the burner's performance and safety.

Symptoms of a bad double burner include:

• Uneven or weak flames
• One or both burners not igniting
• Difficulty in adjusting the flame size
• Noticeable gas odor when the burner is off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This surface burner valve regulates gas flow to a single top burner on your range, delivering smooth flame control. Replace a worn or leaking valve to resolve ignition problems and uneven flame performance.

• Regulates gas flow to the surface burner as you turn the knob
• Works with the igniter/orifice to light the burner
• Failure symptoms include: burner won't light or delayed ignition; flame won't adjust or is uneven
• Other signs: knob hard to turn or gas odor at the valve stem

• Disconnect power and shut off the gas supply before servicing; allow the appliance to cool.
• Remove the knob and access panel; note the valve's orientation and label igniter wire and gas tube locations.
• Transfer the orifice holder and any mounting hardware from the old valve if required.
• After reconnecting, restore gas and check all joints for leaks with a noncorrosive leak-detection solution before use.

Replacement cooktop guide that positions and supports the cooktop glass so the top sits level and secure. Restores proper alignment to reduce movement and uneven gaps around the cooktop edge for safer, more stable use. What it does:

• Aligns and stabilizes the cooktop glass to keep it seated correctly in the range cutout
• Helps prevent the cooktop from shifting, rubbing against trim, or vibrating during use
• Commonly replaced when the glass feels loose, sits unevenly, or the edge shows wear
• Supports a flush fit to help avoid chipping or damage where the glass meets the cabinet

• Disconnect electrical power (and gas supply if applicable) before servicing and wear cut-resistant gloves when handling the glass top
• Lift or remove the cooktop per the appliance service instructions to access and replace the guide
• Install the new guide, re-seat the cooktop, and verify the top sits flush and does not move; do not overtighten fasteners
• If the glass top is cracked or damaged, replace the glass top before reinstalling guides
