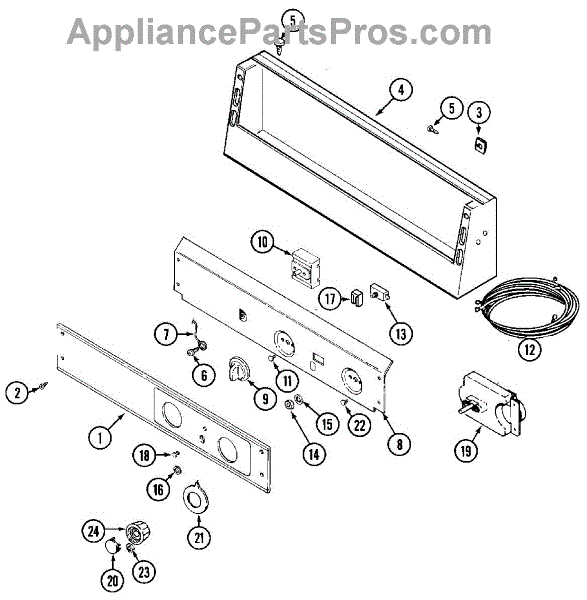

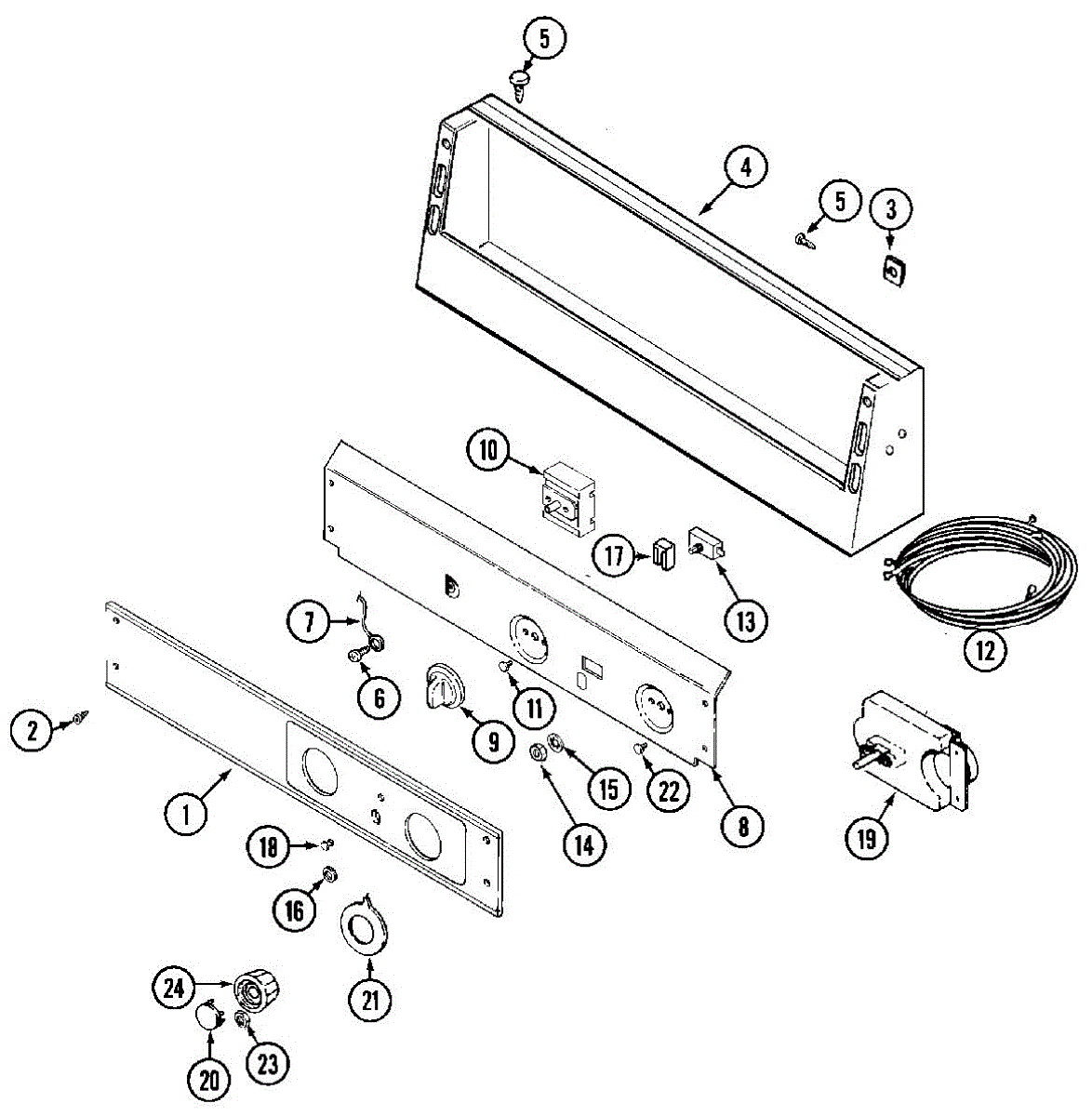

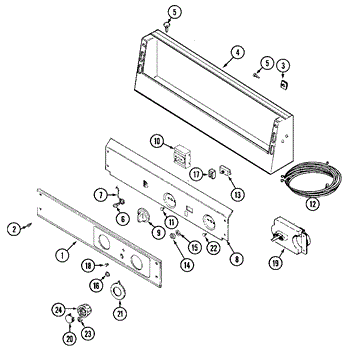

Parts for Maytag MDG16MNAGW: 01 - Control Panel Parts

Screw: 8-16 x 3/8 inch.

Size: 8-32 x .312 inch.

This cycle selector switch lets you choose and engage the desired operating cycle from the control panel. When it wears out or fails, the appliance may not start on certain settings or may change cycles unpredictably.

• Allows selection of the operating cycle from the control panel
• Routes the correct signals to the timer/main control for the chosen cycle
• Common symptoms: won't start on the selected cycle, only one cycle works, erratic or unintended cycle changes, selector feels loose or fails to hold a setting

• Disconnect power before servicing
• Access the switch from the console/control panel area
• Note wire locations or take a photo; transfer wires to the new switch one at a time
• Secure the switch, reassemble the console, and test cycle selection

Size: 8-32 x 1/4 inch.

The push-to-start switch activates the dryer motor when you press the Start button. Replacing it restores dependable starting with one press.

• Completes the start circuit to power the motor when pressed; spring-returns when released
• Restores normal operation when the original switch is worn, stuck, or electrically open
• Symptoms include: dryer won't start, starts only while button is held, intermittent starting, or no response when pressing Start
• Mounts in the control console behind the Start button/knob; connects with spade terminals

• Disconnect power to the dryer before servicing
• Remove the console/trim as needed to access the switch; pull off the knob if present
• Note wire positions (take a photo); move wires to the new switch one at a time and secure
• Test operation; also check the door switch, thermal fuse, and belt switch

Size: 8-32 x 1/4 inch.

A small hex nut used to secure components and fasteners on compatible Whirlpool appliances. Replaces a worn or missing nut to restore proper part retention and reduce noise or loose fittings. What it does:

• Secures panels, brackets, or components that use a matching bolt or stud
• Helps prevent rattling, vibration, or parts coming loose during operation
• Restores a proper threaded connection when the original nut is stripped or missing
• Works wherever the correct thread size and profile are required

• Unplug the appliance or disconnect power before starting any repair
• Use the correct-size wrench or socket to avoid rounding the nut
• Tighten securely but avoid overtightening, which can strip threads or crack parts
• Inspect mating bolts/studs and replace if damaged
