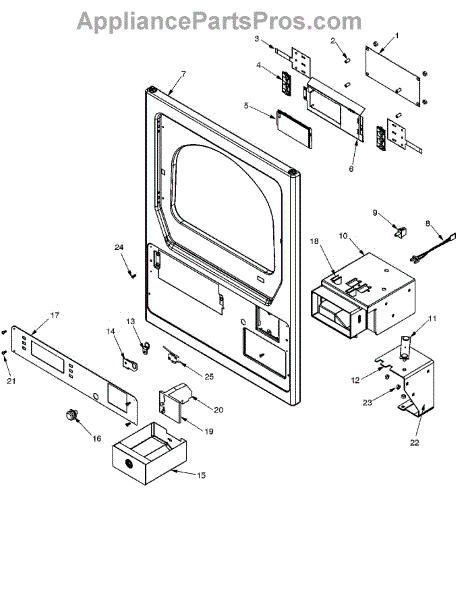

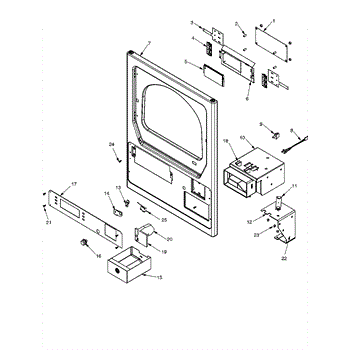

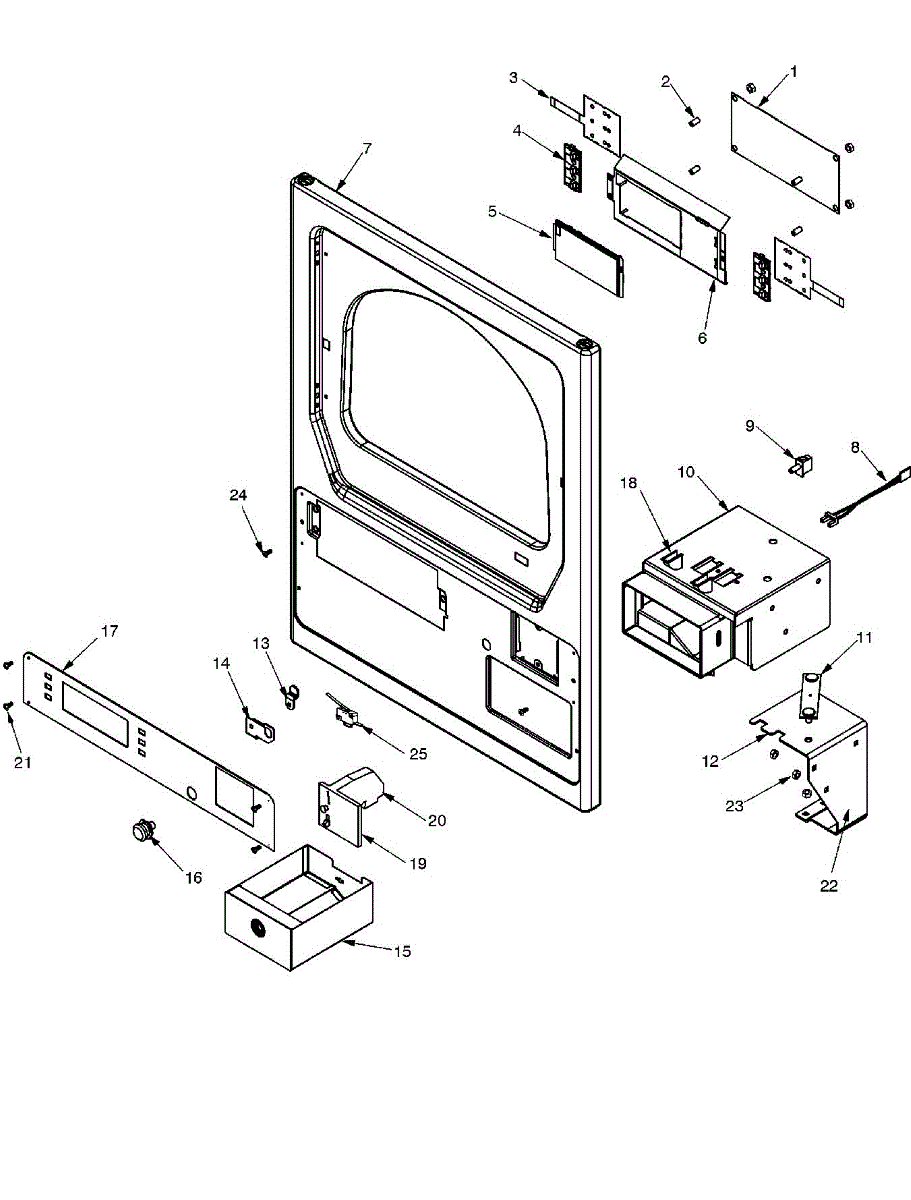

Parts for Maytag MLG23PDFWW: 01 - Control Panel Parts

This replacement switch restores reliable on/off control for the matched function in your appliance. A worn or sticking switch can prevent components from powering correctly; replacing it helps bring back consistent, safe operation.

• Opens and closes an electrical circuit to control a specific component
• Actuates via a knob, button, lever, or door/lid mechanism
• Common symptoms: unit or component won't start/turn on, intermittent operation, or must press/hold to work
• Visual clues: loose actuator, heat discoloration, or burned terminals

• Disconnect power before servicing; verify no voltage with a meter
• Document wire positions; move leads to the new switch one at a time
• Secure the switch in the original orientation and ensure proper actuator alignment
• Restore power and test the controlled function for proper operation

The Push Button is an OEM part for Whirlpool Laundry Centers. This part starts the wash or dry process, and making adjustments to settings. The push button is engineered for durability and a precise fit, ensuring it integrates seamlessly with the appliance's control panel.

Causes of a malfunctioning push button can include repeated use leading to wear and tear, accumulation of lint or detergent residue affecting its functionality, or damage to the button's contacts or the control panel circuitry.

Symptoms of a bad Push Button include:

• Difficulty in engaging the desired cycle or setting
• The button feeling stuck or failing to return to its original position after being pressed
• The appliance not responding to button presses, resulting in an inability to start or modify cycles

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This display cover protects and finishes the appliance control panel, keeping the touchpad and display lens safe while restoring a clean, readable appearance. Replaces a cracked, faded, or scratched panel trim. What it does:

• Shields the control board area from dust, spills, and everyday wear
• Restores a clear view of the display and touchpad markings for easier use
• Improves the appliance's appearance by replacing damaged or discolored trim
• Helps prevent debris from interfering with buttons or electronic controls

• Disconnect power before starting any repair to avoid shock or damage
• Remove any outer trim or screws to access the control panel; handle the cover gently to avoid breaking retention clips
• Keep track of small fasteners and note orientation for correct reassembly
• Avoid touching circuit board contacts or components when replacing the cover

A general-purpose 6-20 screw used to secure panels, brackets and small components on Whirlpool appliances. Replaces stripped or missing fasteners to restore a snug fit and reduce rattling or loose parts. What it does:

• Secures appliance panels, trim, brackets and internal components in original mounting locations.
• Stops panel movement, vibration noise and loose connections caused by missing or corroded screws.
• Fits the OEM 6-20 thread designation used on multiple Whirlpool assembly points.
• Sold individually for spot repairs and small part replacements.

• Disconnect power or gas supply to the appliance before starting any repair.
• Use the correct screwdriver or bit to avoid stripping the head; tighten until snug but do not overtighten.
• Replace like-for-like; stop and verify the correct fastener for the mounting point.
• Check the appliance's parts diagram for the exact screw location and orientation.

This lock assembly secures the appliance access panel and restores a proper, stable latching action for safe operation. It replaces a worn or broken access lock so the panel stays closed when the appliance is in use. What it does:

• Provides a secure latch for the access/service panel to prevent unintended opening
• Replaces damaged, bent, or non-engaging lock components that cause loose or rattling panels
• Helps restore normal operation when a panel won't stay closed or is difficult to latch
• Works as the mechanical locking point for service access, improving user safety during operation

• One access lock assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal may require a screwdriver and access to the service panel; keep fasteners for reassembly
• Handle plastic clips and tabs carefully to avoid breakage; replace any damaged fasteners

This coin drop is the front-panel coin acceptor that routes payment into a coin-operated washer or dryer, restoring reliable coin detection and machine start functionality. Designed to fit Greenwald-style coin mechanisms. What it does:

• Guides coins into the coin mechanism so the machine can register payment
• Helps prevent coin jams and misfeeds that stop cycle starts
• Restores proper coin sensing when worn or damaged
• Works with the existing coin box and latch assembly on compatible machines

• One coin drop assembly

• Disconnect power and follow lockout/tagout before accessing the control panel
• Remove the front panel or coin box cover to access mounting screws and wiring
• Align the drop with the coin path and secure fasteners; test coin acceptance after reassembly

Panel, oven door (screw, 10ab x 1/2)

This service access switch is the OEM-style replacement switch that detects and secures the appliance's service or control access point, helping technicians safely access internal components during diagnostics and repair. What it does:

• Detects whether the service/access panel or console is opened and signals the control board accordingly
• Helps prevent operation while the access panel is open for safer service
• Restores proper access-sensing when a worn or failed switch causes service-mode or control interlock issues
• Compatible where the appliance uses a dedicated access/service switch for control-board interlock functions

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove necessary panels or console to access and replace the switch
• Handle near control boards with care to avoid ESD damage; reconnect all wiring securely
• After installation, restore power and verify the switch correctly senses panel position and that the appliance operates normally
