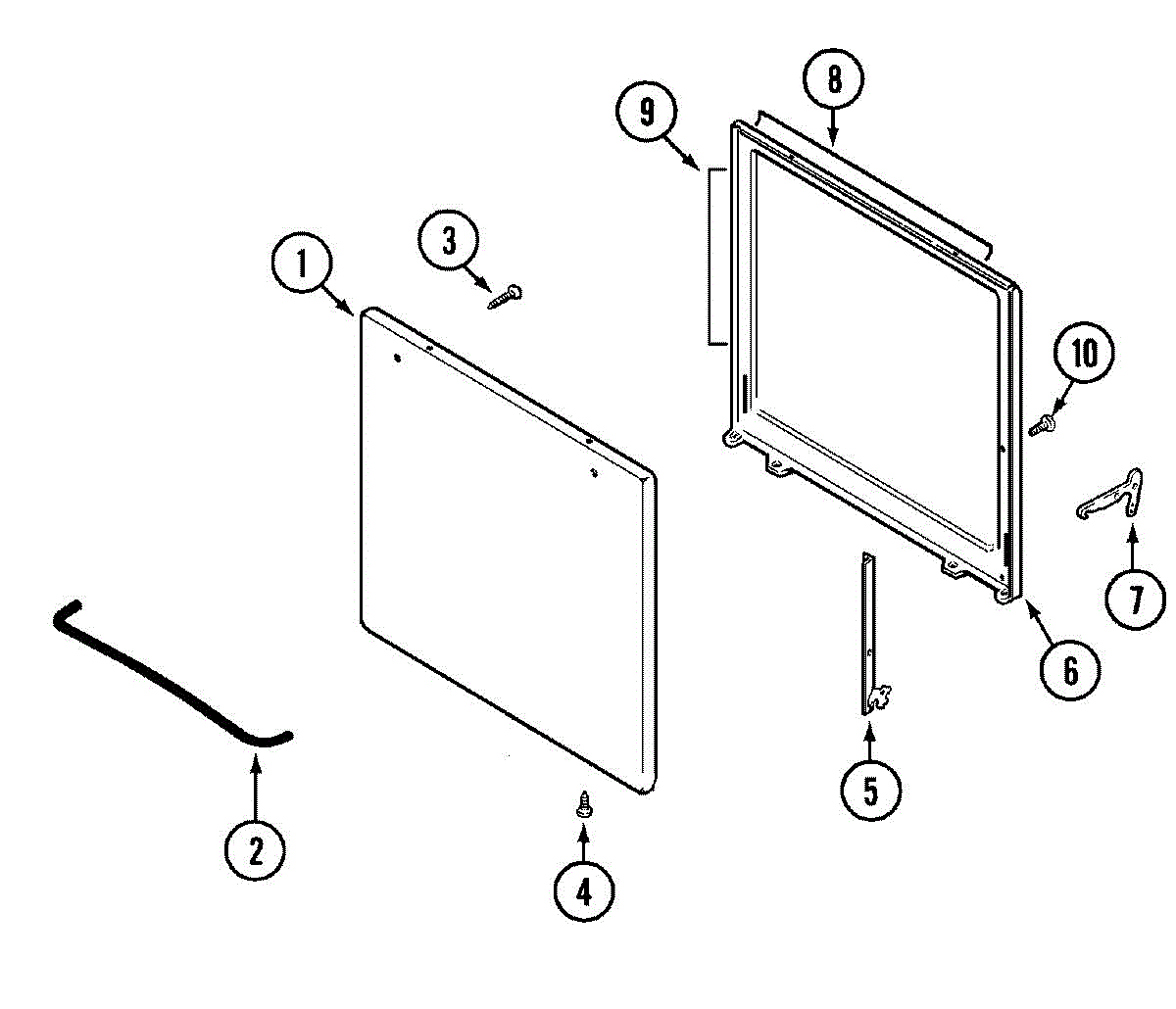

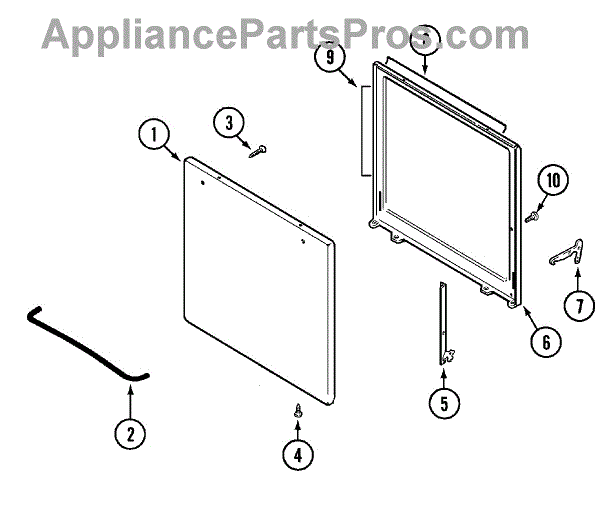

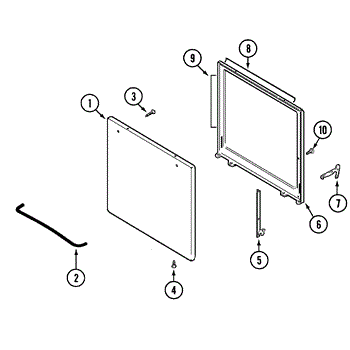

Parts for Magic Chef CLY1611BDH: 01 - Door Parts

This is a replacement screw used to secure appliance panels and components so parts stay firmly mounted and functioning. Use it to replace a missing or damaged fastener for a secure repair. What it does:

• Fastens panels, brackets, or small components to prevent loosening or vibration
• Helps stop rattling, shifting, or gaps caused by a missing or stripped screw
• Restores proper alignment of mounted parts after repair or maintenance

• Use the matching driver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent damage to threads or surrounding parts
• Disconnect power and follow manufacturer safety guidelines before servicing the appliance
• Replace like-for-like: screw size and head type match the original before installation

Size: 10-24X5/16-NI

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.
