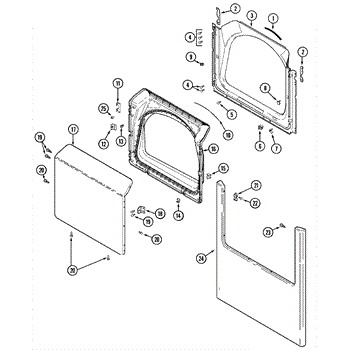

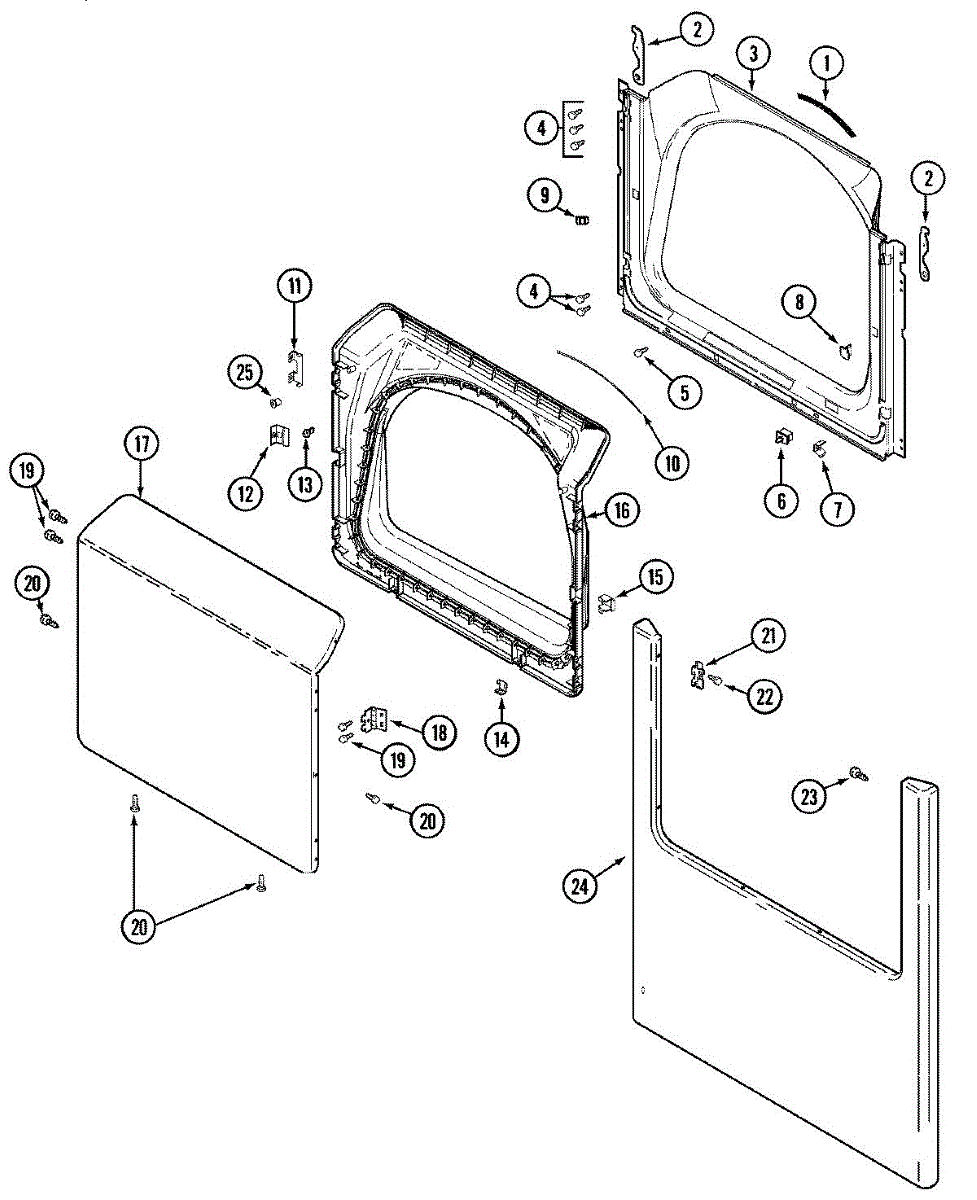

Parts for Maytag MDE5000AYQ: 01 - Door Parts

This factory screw secures appliance panels and components, keeping them properly aligned and quiet during operation. Replace a stripped, corroded, or missing fastener to restore a snug fit and dependable performance in the original mounting location. What it does:

• Fastens brackets, panels, trim, or internal hardware to the cabinet/frame as specified by the manufacturer
• Helps maintain proper alignment and reduce rattling or vibration when a screw is worn or missing
• Direct replacement for damaged, stripped, or rusted hardware
• Used in various locations per the service diagram; match to the original position

• 1 screw

• Disconnect power (and shut off water or gas, if applicable) before servicing.
• Compare length and thread style to the original; install in the same location.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• Reinstall any brackets or panels in the correct order.

The Door Switch Kit is an OEM part for Whirlpool dryers. This kit includes a door switch that plays a crucial safety and operational role in the dryer's function. It ensures that the dryer operates only when the door is firmly closed, preventing the machine from running with an open door, which could pose safety risks and inefficiency in the drying process.

The causes of door switch failure often include physical damage from slamming the dryer door, wear and tear over time, or electrical issues such as short circuits.

Symptoms of a faulty Dryer Door Switch include:

• The dryer not starting when the door is closed
• The dryer continuing to run when the door is opened, which poses a significant safety hazard.
• Unusual noises from the switch area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Catch Kit is an OEM part for Whirlpool dryers. It includes the door catch and the necessary mounting hardware to secure it in place. This kit ensures the dryer door remains securely closed during operation, preventing heat loss and ensuring the appliance functions efficiently.

Causes of a bad door catch include regular wear and tear, physical damage, or misalignment of the door, which can impact the catch's ability to latch properly.

Symptoms of a bad door catch include:

• The dryer door not staying closed
• Difficulty latching the door shut
• The dryer stopping mid-cycle due to the door opening

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Catch Kit is an OEM part for Whirlpool dryers. It includes the door catch and the necessary mounting hardware to secure it in place. This kit ensures the dryer door remains securely closed during operation, preventing heat loss and ensuring the appliance functions efficiently.

Causes of a bad door catch include regular wear and tear, physical damage, or misalignment of the door, which can impact the catch's ability to latch properly.

Symptoms of a bad door catch include:

• The dryer door not staying closed
• Difficulty latching the door shut
• The dryer stopping mid-cycle due to the door opening

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Door Latch Kit is an OEM part for Whirlpool dryers. It ensures the dryer door stays securely closed during operation, allowing the dryer to function correctly and safely. This kit typically includes the latch, strike, and necessary mounting hardware for easy installation.

Causes of a bad door latch can include wear and tear from frequent use, accidental damage from forceful closing, or alignment issues due to the door being knocked out of place. A faulty latch can prevent the dryer from starting or cause it to stop mid-cycle if the door doesn't stay closed.

Symptoms of a bad dryer door latch include:

• The dryer door not staying closed
• The dryer not starting or stopping unexpectedly during a cycle
• Difficulty in closing or latching the door
• Loose or misaligned latch components

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door seal fits around the dryer door opening to keep heat and moisture inside the drum. Replacing a worn seal restores airflow, improves drying performance, and helps prevent lint and warm air from escaping around the door.

• Seals the door perimeter to maintain proper airflow and temperature inside the drum
• Reduces heat and moisture loss that can lead to longer dry times
• Helps contain lint and dust around the door opening
• Replace if the seal is torn, brittle, flattened, missing sections, or if you feel warm air or see lint escaping around the door

• Disconnect power and allow the dryer to cool before servicing
• Remove the old seal and clean the door surface so the new seal seats flat
• Align and press the new seal evenly around the opening; avoid stretching
• Close the door to confirm latch engagement and an even seal; run a short test cycle to check for leaks

Double

This bracket strike secures the door latch strike to the appliance frame, restoring reliable door closing and sealing. Replacing a damaged or bent bracket helps prevent doors from popping open or failing to latch properly. What it does:

• Secures the door strike so the latch can engage and hold the door closed.
• Restores correct door alignment when a worn or broken bracket causes improper latching.
• Addresses symptoms such as a door that won't latch, pops open, or sits unevenly.
• Provides a direct-fit structural replacement for the original mounting point.

• Disconnect power (and water, if applicable) before beginning any service.
• Access the bracket by removing the door trim or inner panel as required; keep original fasteners.
• Align the strike with the latch, secure with appropriate screws, and test door operation before reassembly.

Male piece. For both male and female piece use LA-1003

Single

This door hinge supports and pivots the door for smooth opening and secure closing. Replacing a bent or worn hinge restores proper alignment so the door latches consistently and the appliance operates as intended. What it does and when to replace:

• Provides the pivot point between the door and cabinet
• Maintains door alignment with the catch/strike for a tight, reliable close
• Replace if the door sags, rubs, binds, or won't stay closed
• Help resolve no-start issues caused by the door switch not engaging

• 1 door hinge

• Disconnect power; shut off gas supply before servicing
• Support the door while removing/installing hinge screws to prevent strain or damage
• Transfer and reuse original mounting hardware as designed
• After installation, check and adjust latch/door-switch alignment as needed

Note: This part is one screw, order quantity needed.

This factory replacement hinge screw secures the door hinge to the appliance cabinet or door. Replacing a worn or missing screw restores solid door mounting and alignment for safe, reliable opening and closing.

• Fastens the hinge securely to the door or front panel
• Helps maintain proper door alignment to prevent rubbing or sagging
• Replaces missing, stripped, or corroded hardware
• Typical symptoms include a loose/sagging door, difficulty latching, or rattling at the hinge area

• Disconnect power before servicing; if working on a gas appliance, shut off the gas supply
• Support the door while removing and installing hinge screws
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace them together for consistent alignment

This hinge screw fastens a hinge to the appliance cabinet or door, helping keep the door aligned and operating smoothly. Replace a missing or stripped screw to restore solid hinge support and reliable closure.

• Secures the hinge to the cabinet/frame or door
• Maintains proper alignment at the hinge point
• Helps ensure smooth opening/closing and effective sealing where applicable
• Common symptoms: loose or wobbly hinge, door sagging/misaligned, poor closure/seal, rattling, or a missing/stripped fastener

• Disconnect power to the appliance; shut off gas if applicable
• Support the door to relieve hinge load before removing or installing screws
• Use the correct driver for your model to avoid stripping fasteners
• Start threads by hand and tighten snugly; do not overtighten
