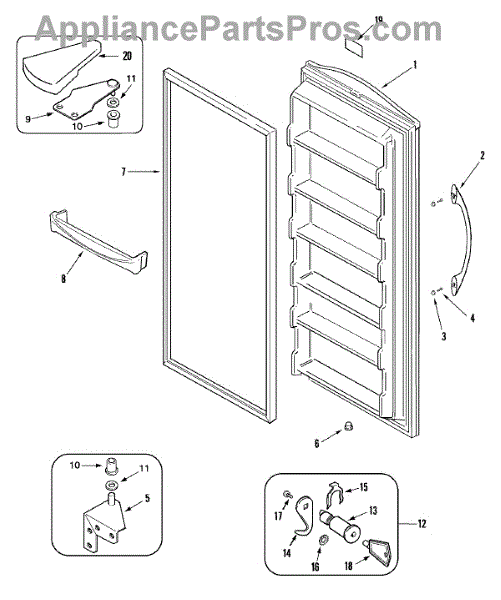

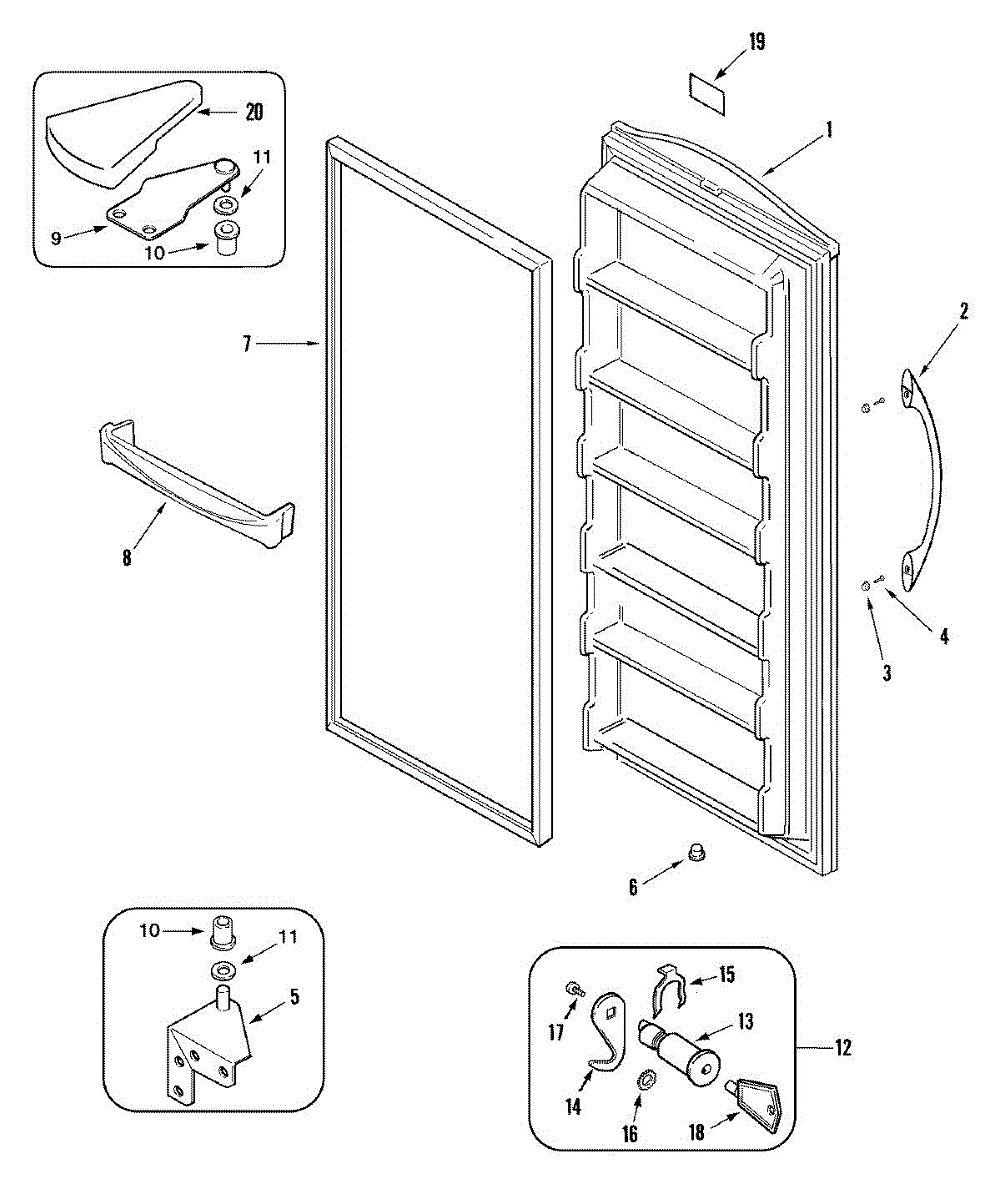

Parts for Maytag MQU1654BEW: 01 - Door Parts

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

This bottom hinge secures and guides the refrigerator/freezer door at the lower pivot, restoring proper door alignment and smooth opening/closing. Durable molded construction matches the original white finish for a clean factory look. What it does:

• Supports the door's lower pivot point to keep the door aligned and balanced
• Allows the door to swing smoothly without binding or dragging
• Helps maintain a proper seal by keeping the door level
• Common replacement when door sags, rubs on the cabinet, or won't close fully

• One bottom hinge (white)

• Unplug the appliance or disconnect power before starting work
• Support the door while removing or installing the hinge to prevent injury or damage
• Typical installation uses basic hand tools; tighten fasteners securely but avoid overtightening
• Check upper hinge adjustment and door leveling

Replacement stringer bolt that secures the appliance's stringer or support rail to the cabinet frame, restoring panel alignment and preventing movement. Use when the original bolt is missing, loose, or damaged. What it does:

• Secures the stringer/support rail to the appliance frame so panels and assemblies stay aligned.
• Helps prevent cabinet or panel movement that can cause rattling or vibration during operation.
• Restores proper alignment when a loose or missing bolt causes misaligned panels or binding doors.
• Simple, direct replacement for a corroded, stripped, or lost fastener.

• Disconnect power before working on the appliance and remove any panels.
• Use the correct-size socket or wrench; hand-tighten, then snug—do not overtighten to avoid stripping threads.
• Inspect mating threads and replace the bolt if heads or threads are damaged; for the correct fastener location.

This vent plug seals the designated vent port on the appliance assembly to maintain the intended seal and containment. Replacing a worn or missing plug helps prevent nuisance leaks and odors from an open or damaged vent.

• Seals a factory vent opening on the specified assembly
• Helps prevent moisture or drips from escaping at the vent area
• Helps keep dust and debris from entering through an open port
• Replace if the plug is cracked, hardened, shrunken, loose, or missing
• Typical signs include moisture around the vent, visible damage, or a plug that won't stay seated

• Disconnect power and shut off water or gas supplies (as applicable) before servicing
• Allow appliance surfaces to cool and dry; wear protective gloves
• Remove the old plug, clean the vent port, and press the new plug fully flush in the same orientation
• Restore power and run a brief test; inspect the vent area for leaks

This magnetic door gasket creates an airtight seal around the perimeter of your refrigerator/freezer door. Replacing a worn gasket restores proper sealing to help maintain temperature, reduce frost and condensation, and improve overall efficiency.

• Seals the door to minimize air leaks and temperature swings
• Helps reduce frost buildup and moisture around the door perimeter
• Supports consistent cooling and quieter, shorter run times
• Common failure signs: tears, gaps, hardened/compressed areas, or persistent condensation

• Disconnect power before servicing.
• Warm the new gasket (room temp; briefly in warm water or with a hair dryer on low) to relax bends.
• Seat the gasket evenly in the door's retainer/channel; align corners for uniform contact.
• Adjust retainer/door alignment as needed.

This door rail secures and guides the appliance door trim so the door closes and aligns properly. Replacing a worn or damaged rail restores a snug fit and reduces rattling or misalignment for reliable operation. What it does:

• Provides a mounting and guide surface for the door trim and related hardware
• Keeps the door aligned so seals engage and the door closes fully
• Prevents rattling or loose trim caused by worn or cracked rails
• Helps maintain proper door appearance and function

• One door rail

• Disconnect power to the appliance before starting any repair
• Remove door trim or panel fasteners as needed to access the rail
• Inspect adjacent clips, screws, and seals; replace any damaged fasteners

A thin replacement hinge shim that helps align and level the appliance door for a proper seal and smooth operation. Restores correct door spacing to reduce rubbing, uneven gaps, or misalignment. What it does:

• Centers and spaces the door at the hinge to correct misalignment and uneven gaps
• Helps doors close evenly and maintain a consistent seal
• Prevents rubbing or catching caused by out-of-position hinges
• Works with the hinge assembly to restore smooth opening and closing

• Disconnect power to the appliance before starting any repairs
• Remove the door or open/secure it to access hinge area
• Slide or position shim between hinge surfaces as shown in OEM instructions; do not force or bend excessively
• Tighten fasteners to secure alignment, then verify door operation and seal

Replacement stringer bolt that secures the appliance's stringer or support rail to the cabinet frame, restoring panel alignment and preventing movement. Use when the original bolt is missing, loose, or damaged. What it does:

• Secures the stringer/support rail to the appliance frame so panels and assemblies stay aligned.
• Helps prevent cabinet or panel movement that can cause rattling or vibration during operation.
• Restores proper alignment when a loose or missing bolt causes misaligned panels or binding doors.
• Simple, direct replacement for a corroded, stripped, or lost fastener.

• Disconnect power before working on the appliance and remove any panels.
• Use the correct-size socket or wrench; hand-tighten, then snug—do not overtighten to avoid stripping threads.
• Inspect mating threads and replace the bolt if heads or threads are damaged; for the correct fastener location.

This door hinge is the replacement pivot that supports and guides a refrigerator or freezer door for smooth opening and reliable alignment. It restores proper door movement and helps maintain an even seal. What it does

• Provides the pivot point so the appliance door opens and closes smoothly
• Keeps the door aligned to prevent sagging or rubbing
• Helps maintain a proper door seal to reduce temperature loss
• Commonly used when a door drops, drags, or doesn't close evenly

• One (1) door hinge

• Disconnect power to the appliance before starting any repair
• Support the door while removing/installing the hinge to prevent damage or injury
• Use appropriate hand tools; tighten fasteners securely but avoid over-tightening

This white hinge sleeve cap covers and protects the exposed hinge bushing/pin area, providing a clean, finished look while helping keep debris out of the hinge mechanism.

• Covers the hinge sleeve to improve appearance and protect the hinge area
• Helps prevent dirt and moisture from entering the hinge bushing
• Common failure signs include a missing/broken cap or a loose cap that won't stay in place
• May be used on door hinge locations where a sleeve/bushing is present

• Unplug the appliance or shut off power before starting
• Open the door and support it if working near a hinge
• Gently pry off the old cap; press the new cap firmly onto the hinge sleeve
• Do not force—align carefully to avoid cracking the cap

This lock assembly secures the appliance door/lid and enables normal cycle starts by engaging the latch. Replaces a worn or broken lock to restore proper door closure and allow the unit to begin and complete cycles reliably. What it does

• Physically latches the door/lid so the appliance can start and run
• Provides the mechanical engagement the control checks before permitting operation
• Common symptom: door won't stay closed or latch does not engage
• Common symptom: appliance won't start, won't advance or shows a door/lock fault

• Disconnect power (and water supply for washers) before beginning any service
• Handle small parts carefully and note their orientation for reassembly
• If wiring is present, disconnect and reconnect matching connectors only; do not force

Size: 10-24X5/16-NI

This is a replacement key used to operate an appliance key-lock or keyed latch, restoring access and security when the original key is lost or damaged. It provides a simple, low-cost way to regain normal use without replacing the lock. What it does

• Fits the appliance's keyed lock or latch to lock and unlock doors, panels, or compartments.
• Restores access when the original key is missing, worn, or broken.
• Helps secure control panels or storage compartments that use a keyed mechanism.
• Useful as a spare to prevent downtime from a lost key.

• Typically installs by inserting into the lock; no special tools required.
• Do not force the key—if it won't turn, check alignment or inspect the lock.
• If accessing electrical panels, disconnect power before opening the service area.
