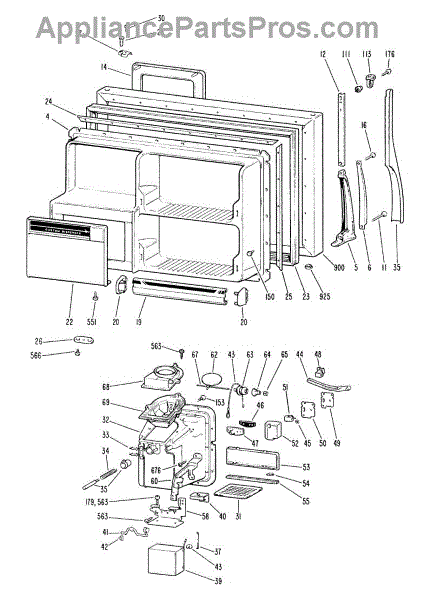

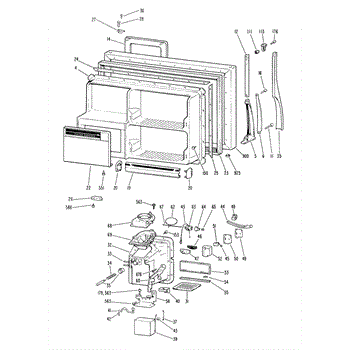

Parts for Ge TBX22RHBL: 01 - Section1 Parts

This support mounting bracket secures internal components to keep appliance parts aligned and stable, helping reduce vibration and wear for more reliable operation. What it does:

• Secures and stabilizes a component or assembly inside the appliance to maintain proper alignment
• Prevents sagging or movement that can cause rattling or misalignment
• Helps reduce vibration and noise caused by loose or unsupported parts
• Preserves fit and function of adjoining panels, shelves, or mechanisms

• Disconnect power before starting any repair to avoid shock or injury
• Basic hand tools typically required; remove access panels as needed
• Inspect surrounding hardware and replace any stripped fasteners for a secure fit

This gasket may require a service technician.

Spring for recess duct. For spring sleeve use WR2X4822.

This dispenser sleeve comes with plunger, sleeve, and screw.

This dispenser cradle is the molded housing that supports and guides the refrigerator dispenser components, helping keep the dispenser chute and actuator aligned for smooth water or ice dispensing. Replacement restores proper fit and function. What it does:

• Holds the dispenser chute and actuator assembly in the door for stable dispensing
• Guides water or ice flow to the dispense area and helps prevent spills
• Replaces cracked, warped, or broken housing that can cause misalignment or leaks
• Restores a solid mounting surface for switches, nozzles, and trim

• One dispenser cradle housing

• Disconnect power and shut off water supply before beginning any work
• Removal typically requires opening the freezer/refrigerator door and removing inner door trim and screws to access the cradle
• Handle plastic parts gently to avoid cracking; use a trim tool to disengage clips where needed

Color: White. For black use WR2X7951.

Ice maker dispenser door.

Time delay display arm.

Includes 12 washers.

Ice chute door lever.

Includes 12 screws. Size: 8-18 ab.

Includes 12 screws.

Includes 12 screws.

Includes 12 screws.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Condenser Fan Motor is an OEM part for GE refrigerators. It is designed to circulate air through the condenser coils, helping to dissipate heat and keep the refrigerator's internal components cool. This ensures efficient operation and prevents the compressor from overheating, which is essential for maintaining the refrigerator's performance and longevity.

You should replace the condenser fan motor if it becomes faulty. Causes of a bad fan motor can include electrical failures, wear and tear from regular use, or blockages that cause the motor to overheat or burn out. A malfunctioning fan motor can lead to inadequate cooling, increased energy consumption, and potential damage to other refrigerator components.

Symptoms of a bad condenser fan motor include:

• The refrigerator not cooling properly
• Unusual noises coming from the back of the refrigerator
• The compressor running hot or cycling on and off frequently
• The condenser coils feeling excessively hot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-16 ab.

Size: 8-32 t. Includes 12 screws.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This ice maker seal kit replaces worn or damaged gaskets that help seal and stabilize the ice maker assembly for reliable operation and to reduce leaks. Use it to restore a tight ice-maker-to-freezer fit. What it does:

• Replaces seals/gaskets that prevent water leaks around the ice maker
• Helps maintain proper ice maker alignment and operation
• Supports consistent ice production by ensuring proper water flow control

• Disconnect power and turn off the water supply before servicing
• Remove the ice maker assembly to access and replace seals as needed
• Use common hand tools; avoid over-tightening fasteners that can deform seals
• Inspect surrounding mounting surfaces for damage, clean before installing new seals

This ice maker seal kit replaces worn or damaged gaskets that help seal and stabilize the ice maker assembly for reliable operation and to reduce leaks. Use it to restore a tight ice-maker-to-freezer fit. What it does:

• Replaces seals/gaskets that prevent water leaks around the ice maker
• Helps maintain proper ice maker alignment and operation
• Supports consistent ice production by ensuring proper water flow control

• Disconnect power and turn off the water supply before servicing
• Remove the ice maker assembly to access and replace seals as needed
• Use common hand tools; avoid over-tightening fasteners that can deform seals
• Inspect surrounding mounting surfaces for damage, clean before installing new seals

This ice maker seal kit replaces worn or damaged gaskets that help seal and stabilize the ice maker assembly for reliable operation and to reduce leaks. Use it to restore a tight ice-maker-to-freezer fit. What it does:

• Replaces seals/gaskets that prevent water leaks around the ice maker
• Helps maintain proper ice maker alignment and operation
• Supports consistent ice production by ensuring proper water flow control

• Disconnect power and turn off the water supply before servicing
• Remove the ice maker assembly to access and replace seals as needed
• Use common hand tools; avoid over-tightening fasteners that can deform seals
• Inspect surrounding mounting surfaces for damage, clean before installing new seals

This dispenser sleeve comes with plunger, sleeve, and screw.

This ice maker seal kit replaces worn or damaged gaskets that help seal and stabilize the ice maker assembly for reliable operation and to reduce leaks. Use it to restore a tight ice-maker-to-freezer fit. What it does:

• Replaces seals/gaskets that prevent water leaks around the ice maker
• Helps maintain proper ice maker alignment and operation
• Supports consistent ice production by ensuring proper water flow control

• Disconnect power and turn off the water supply before servicing
• Remove the ice maker assembly to access and replace seals as needed
• Use common hand tools; avoid over-tightening fasteners that can deform seals
• Inspect surrounding mounting surfaces for damage, clean before installing new seals

Defrost heater that melts frost from the evaporator coil so the refrigerator can maintain efficient cooling. Replacing a failed heater restores normal defrost cycles and helps prevent ice buildup that blocks airflow. What it does:

• Heats the evaporator coil during the defrost cycle to remove frost and ice buildup.
• Restores proper airflow and cooling when ice accumulation was restricting the evaporator.
• Common symptoms of a failing heater: visible frost or ice on the evaporator, freezer running warm, or extended run times.
• Works with the appliance's defrost thermostat and control to complete the defrost cycle.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Handle the heating element carefully; avoid bending or damaging the coil or terminals.
• Verify the part number matches your appliance before installation.
• If other defrost components (thermostat, control board, sensors) show signs of failure, inspect and replace them as needed.
