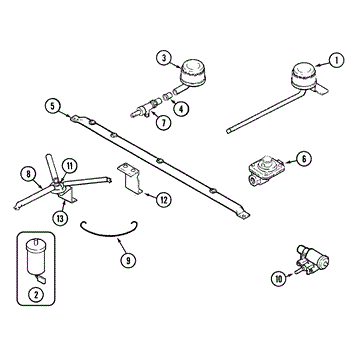

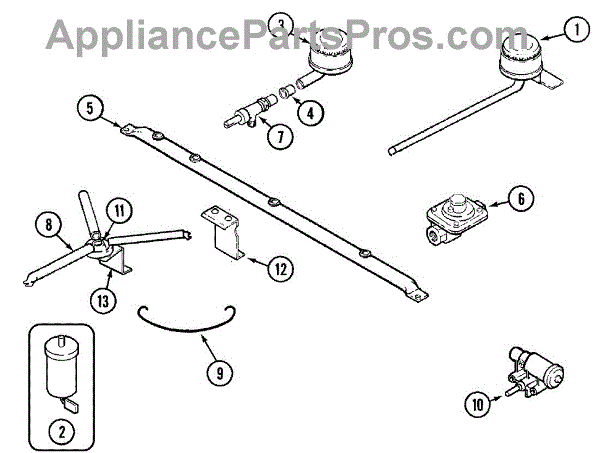

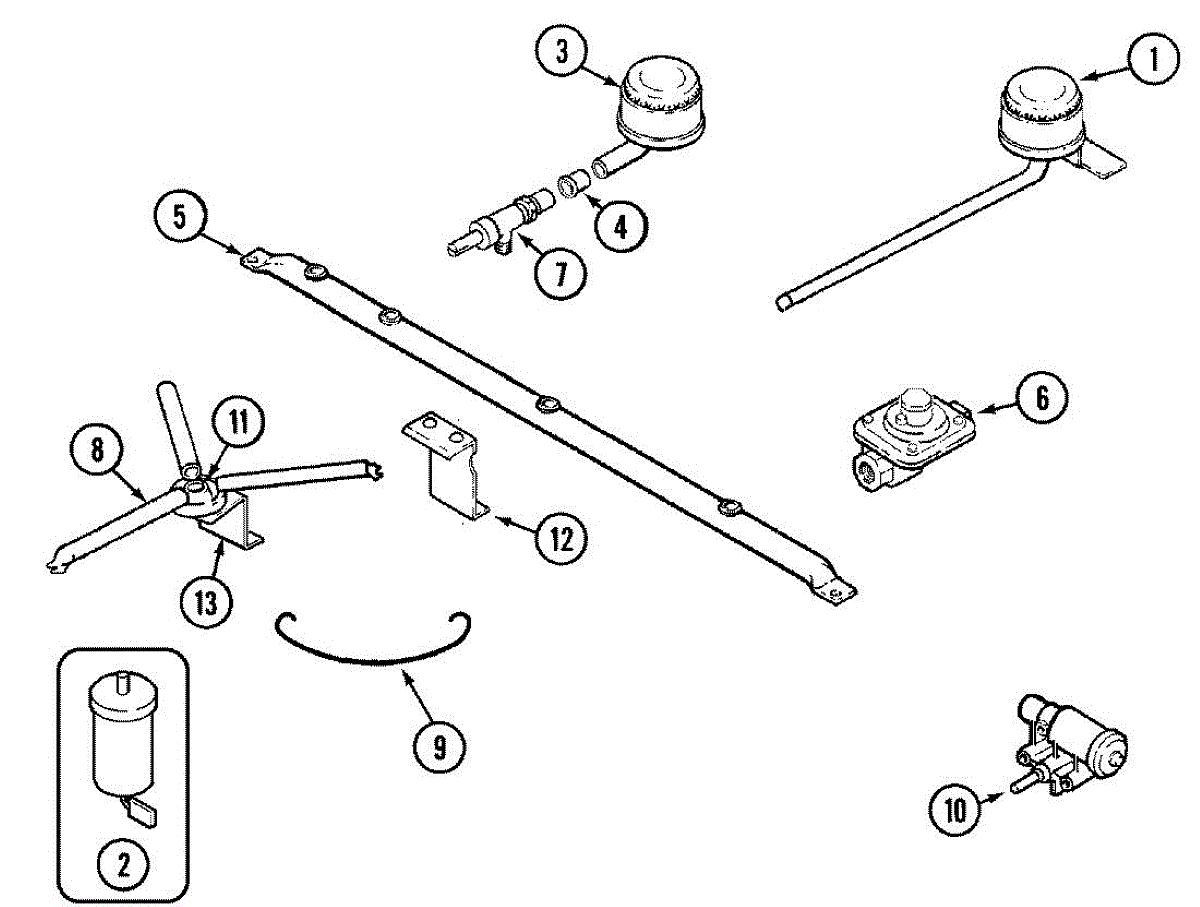

Parts for Magic Chef CLZ8502BDB: 01 - Gas Controls Parts

This hot-surface oven igniter heats and lights the gas burner to start your bake or broil cycle. Replacing a weak or failed igniter restores reliable ignition, faster preheat, and consistent oven temperatures.

• Heats to ignite the oven burner and allows the gas safety valve to open
• Common fixes: oven won't heat, very long preheat, burner lights intermittently, or igniter glows but no flame
• Designed to light the bake or broil burner, depending on model
• Restores proper burner startup and temperature recovery

• Disconnect power and shut off gas before servicing
• Handle by the ceramic base; do not touch or strike the heating element
• Mount with the existing bracket/screws and route leads away from hot surfaces
• Restore utilities and verify prompt ignition and a steady blue flame

This lighter burner assembly provides the spark/ignition component for gas cooktop burners so burners light reliably and cooking can start without delay. It replaces the burned or damaged burner igniter assembly. What it does

• Generates the spark that ignites the gas at a cooktop burner
• Restores ignition when burners fail to light or spark inconsistently
• Stops clicking or weak-spark symptoms caused by a worn igniter
• Helps ensure a stable, visible flame when the gas valve opens

• One lighter burner (igniter/burner) assembly as shown

• Shut off gas supply and power to the appliance before starting work
• Handle ceramic/porcelain and ceramic-tipped igniters carefully to avoid damage
• Basic hand tools required; keep screws and small parts organized during removal

This half-union fitting connects sections of the appliance water line to restore a secure, leak-resistant joint. It's a small but essential plumbing connector used in appliances with water supply plumbing. What it does:

• Joins two compatible water line fittings to complete the water supply connection
• Helps prevent leaks when the mating tubing and fittings are properly seated
• Commonly used where a removable connection or service access is needed
• Works with the appliance's existing water plumbing components to maintain flow

• One half-union fitting

• Turn off water supply and unplug appliance before servicing
• Inspect mating tubing and O-rings for wear; replace if damaged
• Hand-tighten as required, then follow OEM torque recommendations
