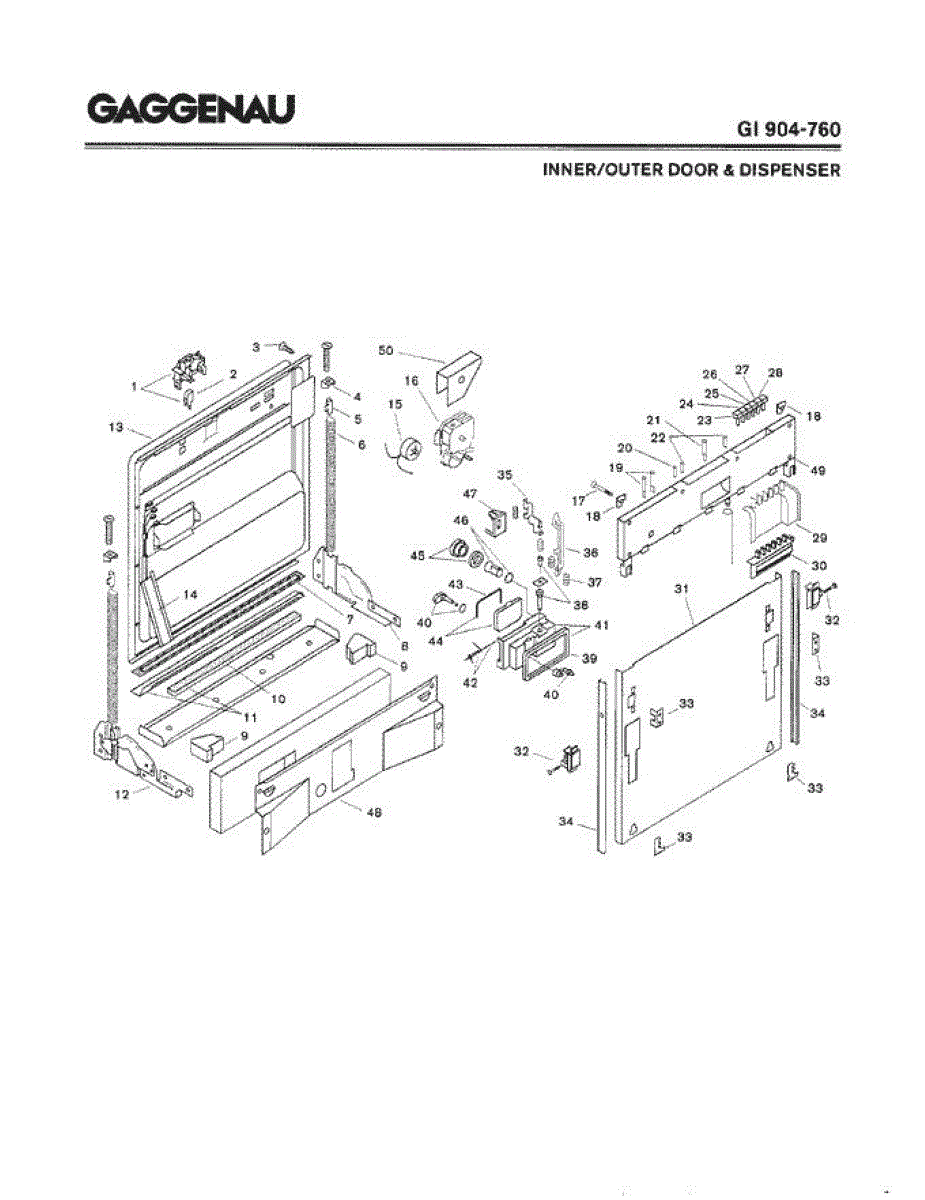

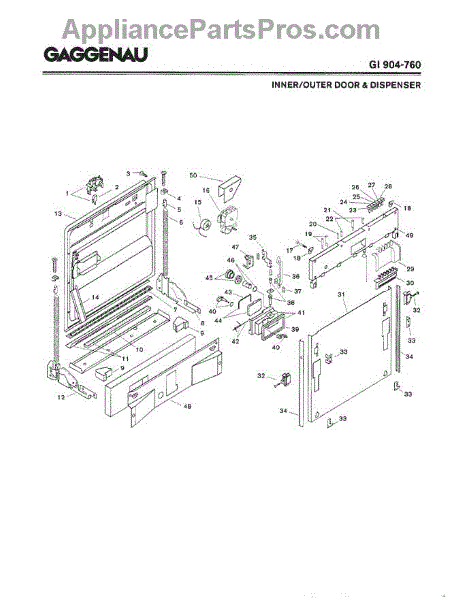

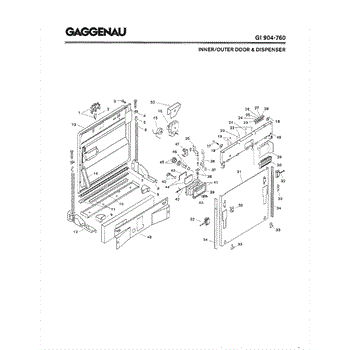

Parts for Gaggenau GI904-760: 01 - Inner / Outer Door & Dispenser Parts

The Screw Kit (Inner Door) is an OEM part for Bosch dishwashers. It is a comprehensive kit that includes 6 screws required for securing and maintaining the inner door assembly of the dishwasher.

Symptoms of needing a new screw kit:

• Loose or rattling inner door panels
• Inner door components becoming misaligned or detached
• Water leaks or vapor escaping from the inner door area
• Difficulty in opening or closing the dishwasher door smoothly

Causes of a bad screw kit can include missing or stripped screws, corrosion or wear over time, or damage during repair or maintenance work.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

This is the right side door hinge. For left side use 00086389.

This foam door seal cushions the appliance door and helps form a snug internal fit to reduce vibration and rattling. It's a simple replaceable gasket used where foam padding is required inside the door assembly. What it does

• Provides cushioning between door panels to reduce noise and vibration
• Helps maintain proper door alignment and fit during use
• Prevents metal-to-metal contact inside the door cavity
• Commonly replaced when foam is flattened, torn, or missing

• One foam door seal as pictured

• Install only with power disconnected and door supported to avoid injury
• Fitment typically requires removing the inner door panel or trim—handle panels and fasteners carefully
• Use appropriate tools and follow OEM disassembly steps to avoid damaging clips or finish

This is the left side door hinge. For right side use 00086391.

This wire harness connects electrical components inside the appliance to ensure reliable power and signal routing. Replacing a damaged harness restores secure connections and helps resolve intermittent or failed electrical operation. What it does:

• Provides insulated wiring and factory-style connectors to link controls, sensors, or modules
• Replaces frayed, burnt, or broken wires that can cause intermittent power or component failures
• Restores proper circuit routing to stop flickering lights, unresponsive controls, or no-start symptoms
• Maintains OEM connector fit and wire lengths for correct installation

• One factory-style wire harness (GI 904)

• Disconnect power (unplug or switch off breaker) before starting any repairs
• Compare harness and connector shapes to the original before installing
• Route harness along original clips and fasteners; avoid contact with sharp edges or hot surfaces

This timer motor drives the mechanical timer assembly so the appliance can advance through its programmed cycles reliably. It replaces a worn or failed motor to restore timed cycle rotation and sequencing. What it does:

• Rotates the timer/timer cam to advance the appliance through cycle steps
• Provides steady, low-speed synchronous drive for the timer mechanism
• Common symptom: timer will not advance or stops mid-cycle
• Common symptom: no motor hum or visible timer shaft movement

• One timer motor

• Disconnect power to the appliance before starting any work
• Access typically requires removing the control panel or console; keep fasteners organized
• Handle the timer shaft and any attached gears carefully to avoid misalignment
• Test motor operation before fully reassembling the control panel

This is a replacement mounting screw used to secure components and panels in compatible Bosch appliances, restoring tight, reliable connections and stopping movement or rattling caused by missing or worn fasteners. What it does:

• Secures panels, brackets, or internal components to prevent vibration and noise
• Restores proper alignment and fastening where stripped or missing screws cause looseness
• Helps maintain safe, stable operation by keeping parts firmly attached
• Works wherever the OEM screw specification matches the original fastener

• Disconnect power (and water, if applicable) before accessing internal parts
• Use the correctly sized driver; avoid overtightening which can strip threads or crack plastic
• Replace only with the exact OEM part number when fit and thread specifications matter

This orange LED indicating light notifies you when a specific function or cycle is active, restoring a clear visual status indicator to your appliance. It replaces a burned-out or damaged indicator to improve usability. What it does

• Provides a bright orange status indicator for control panels and user interfaces.
• Lights when the associated function or cycle is engaged, making operation status visible at a glance.
• Commonly used to replace a non-illuminating, flickering, or physically damaged indicator lamp.
• Works as a direct panel indicator.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Access the control panel per the appliance service instructions; small screws or clips may secure the bezel.
• Remove and replace the failed indicator; secure wiring before reassembly.

This pushbutton replaces a worn, damaged, or missing control-panel button to restore tactile feedback and reliable input on compatible appliances. It helps make cycle selection and other front-panel commands easy and predictable again. What it does:

• Serves as the user-operated button on the appliance control panel
• Replaces cracked, chipped, or non-returning buttons that affect usability
• Helps resolve symptoms like a loose, stuck, or visually damaged button
• Restores a solid push-and-release feel for consistent control input

• Turn off power to the appliance (unplug or switch off breaker) before starting
• Remove the control panel or trim per your model's service instructions to access the button
• Snap or screw the button into place as shown in the appliance's parts diagram; avoid forcing plastic tabs
• If electrical connectors are present, disconnect and reconnect carefully to avoid damage

This is a replacement pushbutton designed to restore reliable button operation and appearance on compatible Bosch appliances. It replaces a worn, broken, or unresponsive control button so controls respond correctly and look finished. What it does:

• Acts as the user-facing actuator for the appliance control panel so presses register properly.
• Replaces a cracked, sunk, or missing pushbutton that won't move or return.
• Helps resolve intermittent or unregistered button presses caused by a damaged actuator.
• Restores the control surface to a clean, finished appearance when the original button is cosmetically damaged.

• One pushbutton replacement.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Removal typically requires accessing the control panel trim; keep screws and small parts organized.
• Handle the new button gently—ensure proper orientation and engagement with the switch assembly.

This pushbutton is the replacement control button used on select cooktop/range control panels. It restores tactile button function so you can select settings and operate the controls reliably. What it does:

• Replaces a cracked, worn, or missing front control pushbutton
• Allows normal button travel and tactile response for panel switches
• Fixes symptoms like buttons that stick, won't stay engaged, or don't actuate controls
• Designed to match the original fit and appearance for straightforward replacement

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Access may require removing the control panel or trim; keep screws and fasteners organized.
• Gently pry or unclip the old button from its housing, then snap the new button into place; avoid excessive force.
• Test button function before reassembling the panel.

This is a replacement black control panel button for compatible Bosch appliances. It restores the button used to select functions and improves the appearance and usability of the control panel. What it does:

• Replaces a cracked, loose, faded or missing control button
• Restores tactile response for selecting settings and cycles
• Improves control-panel appearance and helps prevent accidental presses
• Matches original shape and mounting style for a direct-fit replacement

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Most installations require gently popping the old button out and snapping the new one into place; use a small plastic pry tool if needed.
• Handle small parts carefully.

This part has been discontinued by the manufacturer and is no longer available.

This clamp secures a wooden or custom exterior panel to the appliance door, restoring proper panel alignment and reducing rattling or looseness. Designed to match the OEM bracket location and fit. What it does:

• Holds the decorative wood panel firmly against the dishwasher door frame
• Prevents the panel from shifting, sagging, or vibrating during cycles
• Restores even door fit and helps maintain the door's seal and appearance
• Works at the bracket attachment point to stabilize panel-to-door connection

• Disconnect power to the appliance before beginning any work
• Remove the outer door panel per the service manual to access the clamp location
• Inspect surrounding clips and screws; replace any damaged fasteners for a secure fit

This dosing device is the dishwasher detergent metering unit that controls and releases the correct amount of detergent during the wash cycle, helping restore normal detergent dispensing and wash performance. What it does:

• Meters and releases detergent at the programmed point in the wash cycle to ensure proper cleaning.
• Replaces a failed or blocked dosing unit that won't dispense detergent or dispenses inconsistently.
• Helps address common symptoms like detergent not being released, incomplete wash results, or dispenser-related error indicators.
• Interfaces with the dispenser assembly and wash program signals to time detergent release.

• One dosing device

• Disconnect power (and water, if applicable) before starting any repair.
• Handle the unit and any electrical connectors carefully to avoid damage.
• Test the appliance through a full cycle after installation to ensure proper dispensing and leak-free operation.
