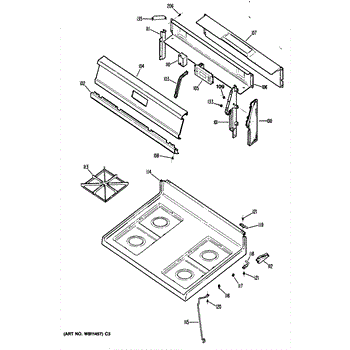

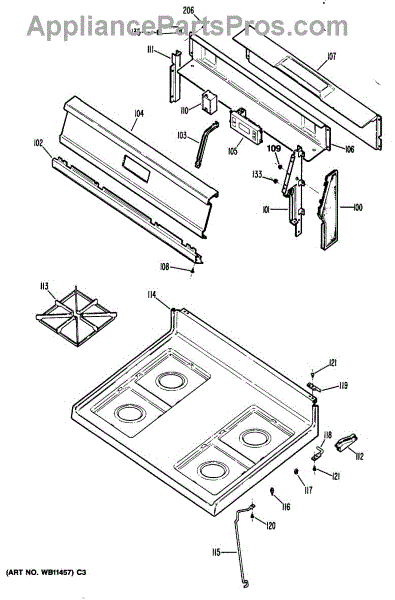

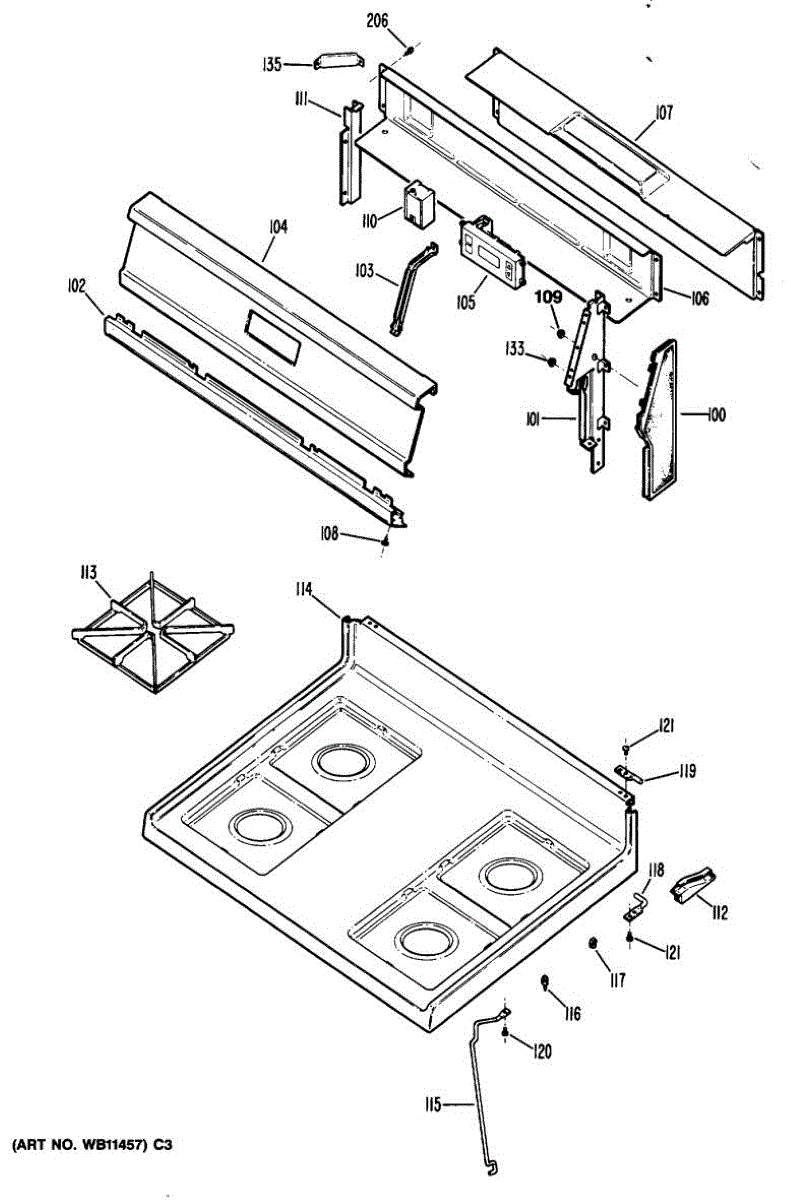

Parts for Ge JGBS15GER1: 01 - Section1 Parts

Anti-tip kit.

This replacement orifice spud for the cooktop surface burner threads into the orifice holder to meter gas flow, helping ensure proper flame size and reliable ignition for consistent cooking performance. What it does:

• Meters gas flow to the surface burner through a calibrated opening
• Helps produce stable, properly sized flames for even cooking
• Replace if the original spud is clogged, stripped, or damaged
• Common symptoms include weak/low or no flame, yellow/orange flames, uneven heating, or delayed ignition

• 1 orifice spud

• Turn off the gas supply and disconnect power; allow the appliance to cool completely
• Remove grates, burner caps, and burner heads to access the orifice holder
• Use the correct spud for the specific burner position and gas type per your model documentation
• Start threads by hand and tighten snugly without overtightening; after reassembly, check for leaks with a soapy-water solution and verify ignition and flame

The Double Burner Kit is an OEM part for GE gas ranges. This kit includes the necessary components to replace the double burner, which is crucial for efficient cooking on GE gas stoves. The double burner provides two separate flame sources, allowing for versatile cooking options with different heat levels.

Causes of a bad double burner can include normal wear and tear, clogs from food debris, exposure to high temperatures, or physical damage. These issues can hinder the burner's performance and safety.

Symptoms of a bad double burner include:

• Uneven or weak flames
• One or both burners not igniting
• Difficulty in adjusting the flame size
• Noticeable gas odor when the burner is off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Includes 12 speed nuts.

This is the right side guide holder. For left side use WB14K2.

This is the left side guide holder. For right side use WB14K1.

Black.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This is a replacement screw used to secure appliance panels and small components. It restores proper fastening and helps eliminate loose parts, rattling, or misaligned panels for a tight, safe fit. What it does:

• Secures panels, trim, brackets, or small assemblies to restore proper alignment
• Stops rattling or vibration caused by missing or loose fasteners
• Provides the correct threaded fastening where the original screw is lost or damaged
• Matches OEM fastening function for reliable reassembly

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread the screw in by hand first, then tighten snugly—do not overtighten to avoid stripping or cracking
• Keep small parts away from children and pets during installation

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.
