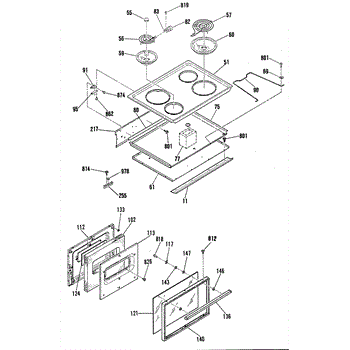

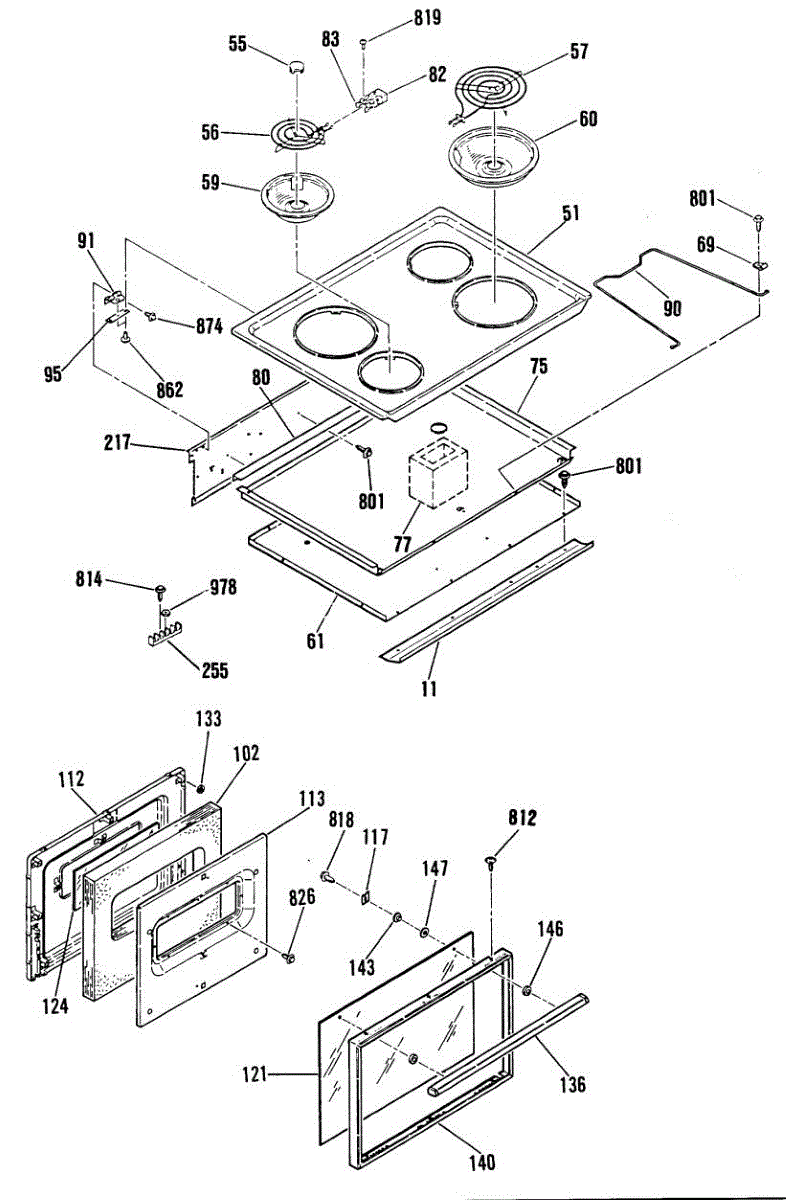

Parts for Ge RF615GP1: 01 - Section1 Parts

6-inch burner won't heat? This surface element coil restores steady heat for boiling and simmering. DIY-friendly replacement takes about 5-15 minutes.

Burner not heating or heating unevenly? This 8-inch plug-in coil element restores consistent heat to your range cooktop. Simple 5-minute replacement.

Chrome drip bowl that sits under your range's 6-inch surface burner. Replaces cracked, warped, or discolored pans. Measures 8 inches across at top rim.

Replacement drip pan sits beneath the heating element on electric ranges and cooktops. Catches spills and overflow. Replaces cracked, warped, or worn pans.

Support rod clip secures internal components in your range. Replace if loose, broken, or causing rattling noises. Verify fit with your model number.

Burner not heating or making poor contact? A damaged terminal block disrupts power to heating elements. DIY-friendly repair, takes about 10 minutes.

Fix loose or wobbly burner connections with this terminal block mounting bracket. Secures the element receptacle so coils plug in firmly and heat properly.

Outer door glass panel for your range. Replaces cracked, broken, or damaged exterior glass on the oven door. Direct fit replacement part.

Package of 12 washers for ranges and ovens. Replaces missing, worn, or damaged washers used in various mounting and assembly points throughout your appliance.

Plastic spacer that fits between range door panels to maintain proper spacing. Replace if cracked, broken, or missing to restore door alignment.

Replacement washer for oven door handles. Installs between handle and door surface. Order when original is cracked, worn, or missing to secure handle.

ST10-16 X 7/16"

Replacement screw for securing components inside your range or oven. Needed when original fasteners are stripped, lost, or damaged during repairs.

Nickel

Replace a cracked, worn, or missing washer in your oven or range. This small metal component ensures secure fastening of internal parts and panels.

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified

Replacement use and care manual for your range. Needed when original manual is lost, damaged, or missing. Provides operating instructions and maintenance guidelines.
