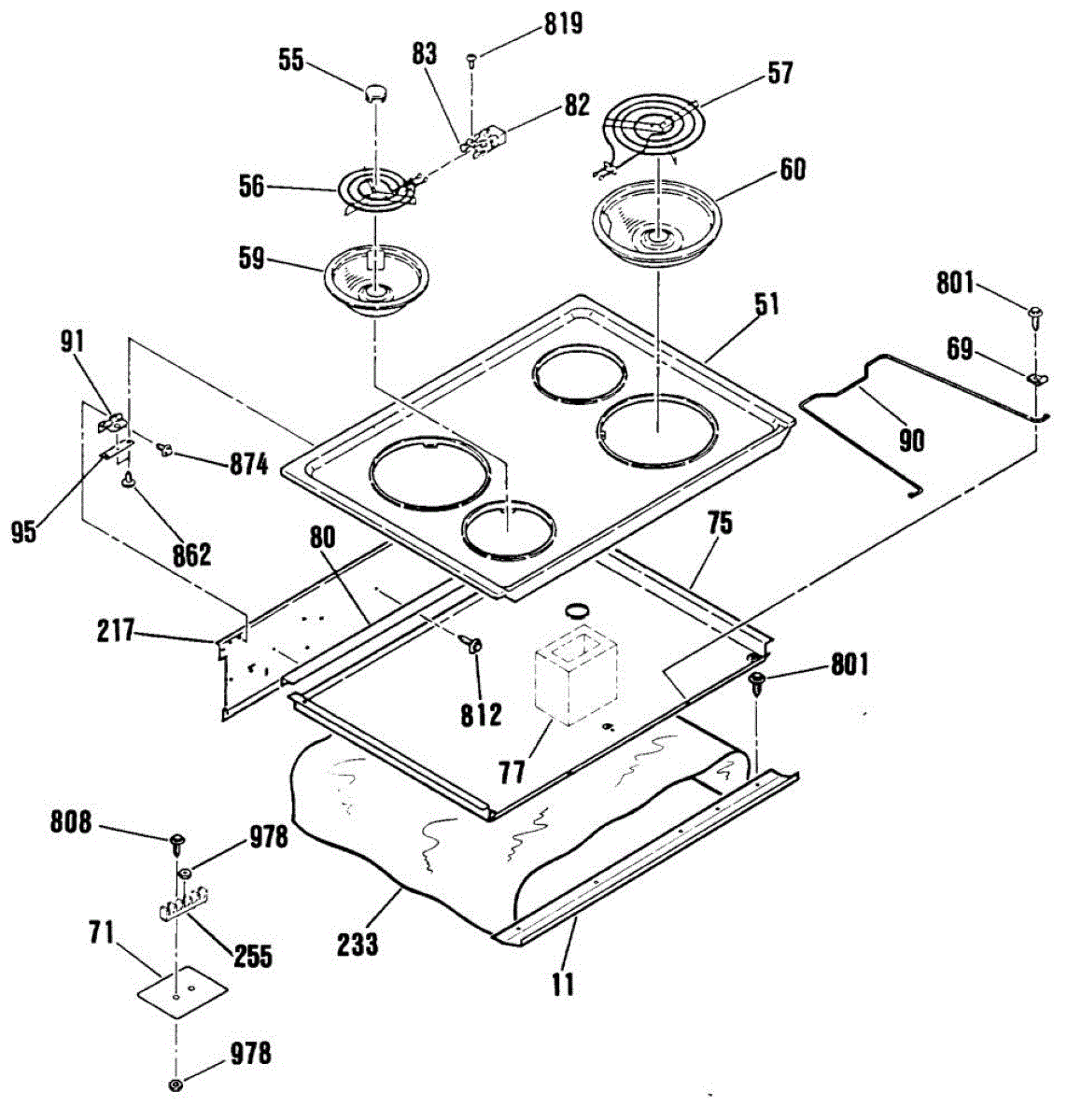

Parts for Ge RF615GP2BG: 01 - Section1 Parts

6-inch burner won't heat? This surface element coil restores steady heat for boiling and simmering. DIY-friendly replacement takes about 5-15 minutes.

Burner not heating or heating unevenly? This 8-inch plug-in coil element restores consistent heat to your range cooktop. Simple 5-minute replacement.

Chrome drip bowl that sits under your range's 6-inch surface burner. Replaces cracked, warped, or discolored pans. Measures 8 inches across at top rim.

Replacement drip pan sits beneath the heating element on electric ranges and cooktops. Catches spills and overflow. Replaces cracked, warped, or worn pans.

Support rod clip secures internal components in your range. Replace if loose, broken, or causing rattling noises. Verify fit with your model number.

A molded barrier insulator that protects wiring and terminals from shorting and heat exposure behind appliance control panels or heating components. Replaces damaged or melted insulators to restore safe electrical separation and reduce arcing risk. What it does:

• Provides electrical insulation and physical separation between terminals, wires, and metal chassis
• Helps prevent short circuits, arcing, and heat damage to nearby wiring and components
• Reduces risk of component-to-chassis conductivity caused by melted or shifted insulation
• Commonly replaced when the original shows burning, cracking, deformation, or melting

• One barrier insulator

• Disconnect power (unplug appliance or switch off breaker) before starting any repair
• Replace with the identical part number and position it exactly to restore proper clearance
• Inspect nearby wiring, terminals, and fasteners; replace any damaged components before re-energizing

This kit includes the electrical receptacle and wiring needed to connect a range heating element to the appliance's power supply. It provides the secure electrical connection point where the element plugs into the range. Replace this kit if your element won't heat up, shows signs of electrical arcing, or if the connection point is burned or damaged.

Fix loose or wobbly burner connections with this terminal block mounting bracket. Secures the element receptacle so coils plug in firmly and heat properly.

ST10-16 X 7/16"

Replacement mounting screw for securing panels, brackets, and components inside your range or oven. Restores proper fit when original is missing or stripped.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Nickel

Replace a cracked, worn, or missing washer in your oven or range. This small metal component ensures secure fastening of internal parts and panels.

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified

Replacement use and care manual for your range. Needed when original manual is lost, damaged, or missing. Provides operating instructions and maintenance guidelines.
