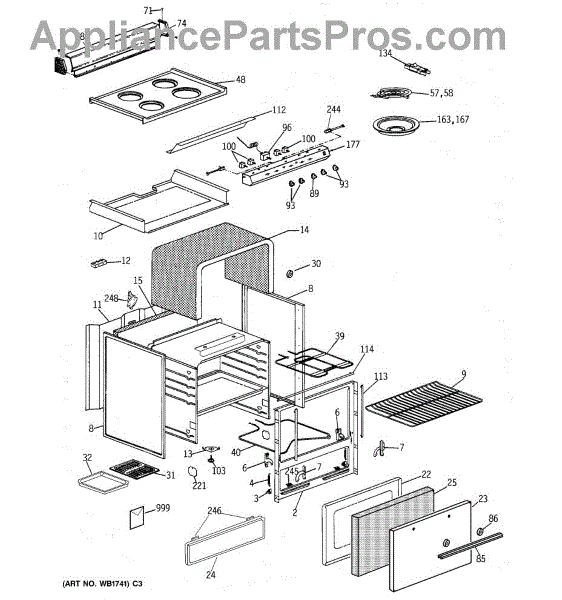

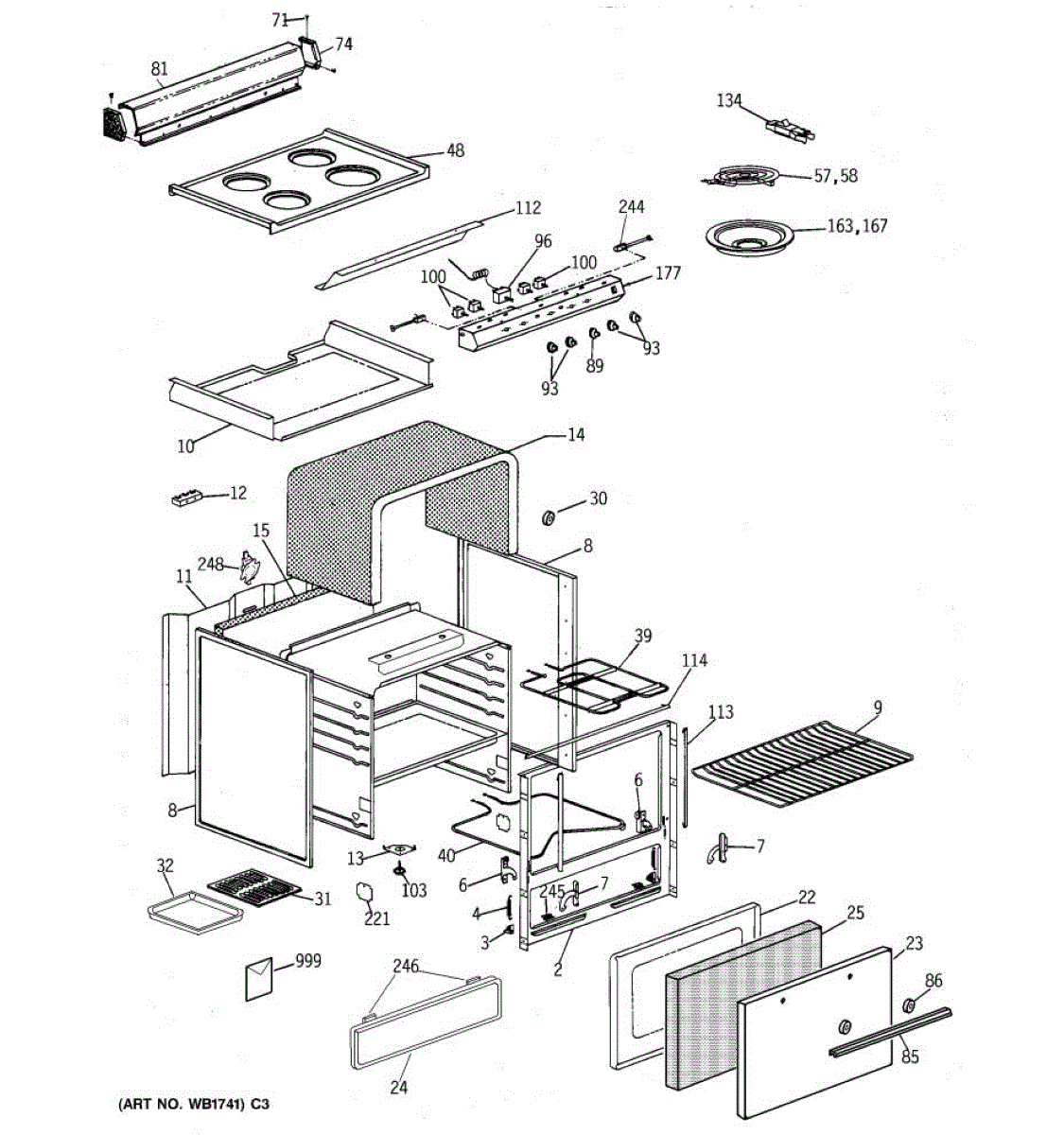

Parts for Ge RA520W2: 01 - Range Parts

Spring mounting bracket for electric ranges. Secures internal springs in place. Replace if bracket is bent, broken, or missing to restore proper support.

White side panel for electric ranges. Covers the exterior side of your range. Replace if panel is cracked, scratched, discolored, or missing.

Replacement body insulation for your range. Installs inside the range cabinet to provide thermal and sound dampening. Order a new one if worn or missing.

Oven not heating or heating unevenly? This lower bake element provides steady bottom heat during bake cycles. Common DIY repair when element breaks or burns out.

Burner not heating or heating unevenly? This 6-inch surface coil element restores consistent heat to your range's small burner. Simple plug-in install.

If your burner won't heat or has stopped working, this 8-inch surface heating element restores cooktop function. Easy plug-in installation in minutes.

Color: White. Includes both end caps that are not sold separate.

Fixes burner that won't heat or adjust temperature properly. This 6-inch surface element switch restores precise heat control to your electric range cooktop.

This is the range surface unit infinite switch for an 8-inch burner. It regulates power to the large surface element so you can set and maintain the desired heat level during cooking.

• Controls the temperature of an 8-inch surface (cooktop) element
• Replaces a switch that causes an 8-inch burner to be stuck on high, not heat, or only work intermittently
• Helps restore smooth, adjustable heat settings
• Designed for the large surface element circuit on compatible ranges

What's included: One 8-inch surface unit infinite switch Install notes:

• Disconnect power before servicing; this is a high-voltage repair
• Note knob orientation and wire positions; take a photo for reference
• Transfer wires one at a time to the new switch to maintain correct connections
• Ensure the switch shaft and knob align properly before reassembly and testing

Burner not heating or terminal block burned? This electric range terminal block kit restores power to surface elements. Easy 10-15 minute DIY repair.

The 6 Inch Small Drip Pan is an OEM part for GE ranges and stovetops. It is designed to sit beneath the burner element to catch spills and drips that occur during cooking. This helps keep the stovetop clean and reduces the risk of burns and fire by preventing spills from coming into direct contact with the heating elements. For the 8-inch large drip bowl order WB32X106

Symptoms of a bad Drip Pan include:

• Rust or corrosion that can no longer be cleaned off
• Warping or changes in shape that prevent it from fitting properly under the burner
• Accumulation of stubborn residues that can't be removed, leading to smoke and odors during cooking

Common causes for replacing the drip pan include prolonged exposure to high heat which can cause discoloration and deformation, as well as accidental damage during cleaning or heavy use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 8-inch chrome drip pan sits directly beneath a large surface burner on an electric range, catching spills and food drips before they reach the stovetop cavity below. It reflects heat upward toward your cookware, improving cooking efficiency. Replace it when your existing pan is warped, heavily stained, or so corroded that it can no longer be cleaned.

Indicator light bulb for electric ranges. Illuminates control panel settings and alerts. Replace when bulb burns out or dims. Verify fit with model number.
