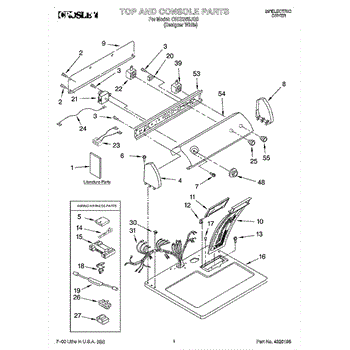

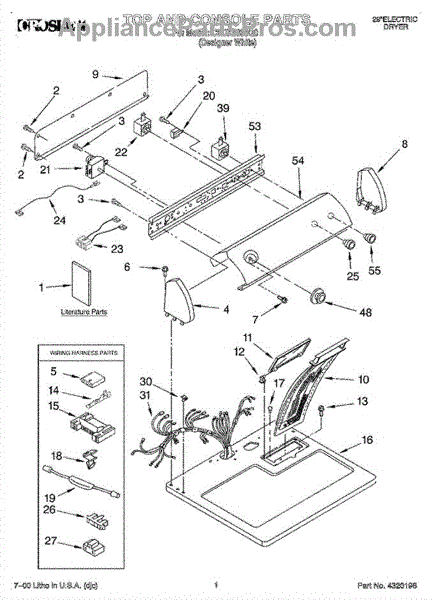

Parts for Whirlpool CEDX563JQ0: 01 - Section Parts

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

Dryer endcap kit with left and right caps. Installs on cabinet sides for a finished appearance. Replace cracked, broken, or missing endcaps.

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

Secures the control console to the washer cabinet. Replace if missing, stripped, or rusted to eliminate panel wobble and restore a tight, stable fit.

Replacement 8-18 x 7/32 machine screw for dryer panels and components. Use when original screw is missing, stripped, or damaged to secure trim and brackets.

Dryer endcap kit with left and right caps. Installs on cabinet sides for a finished appearance. Replace cracked, broken, or missing endcaps.

Rear panel for dryers. Covers the back of the cabinet. Replace if cracked, damaged, or missing to restore the outer appearance and structure.

Captures lint and debris during drying to maintain airflow and prevent vent clogs. Replace if torn, frayed, or handle is broken. Verify fit by model number.

Right-hand hinge for dryer lint filter cover. Replaces broken or missing hinges that hold the lint screen door in place. Easy snap-in installation.

Connects lint screen lid to dryer, enabling smooth opening and secure closing. Replace when bent, cracked, or broken to restore proper lid operation.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

Fix dryer electrical connection issues with this terminal. Used for wiring connections in heating and control circuits. Simple installation in minutes.

Dryer won't start or stops mid-cycle with buzzing? A cracked motor connector housing causes intermittent power to the motor. Quick DIY repair fix.

Rubber cushion bumper that protects moving parts and panels in your dishwasher. Replace if cracked, missing, or worn to restore proper spacing.

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

Timer won't advance or dryer cycles incorrectly? This resistor regulates voltage to your dryer's timer motor. DIY-friendly repair, typically 15-30 minutes.

Dryer won't signal when cycle ends or buzzer stuck on? This adjustable buzzer kit restores audible alerts for timers and notifications. DIY install.

Dryer won't start or timer doesn't advance? This timer restores accurate time-based control. Common fix when dryer only works in wrinkle shield mode.

Fix an unresponsive dryer button with this push-button switch replacement. Restores reliable front-panel operation when buttons don't register commands.

Temperature jumper wire for dryers. Connects temperature sensors and controls. Replace if wire is damaged, frayed, corroded, or has broken connectors.

White control knob for washer control panel. Replaces broken, cracked, or missing knobs on water level or temperature selector switches. Easy DIY fix.

Stack kit connector for dryers. Secures stacked washer-dryer units together. Replace if broken, cracked, or missing to ensure stable stacking.

Wire harness connector that links the control to the buzzer for audible alerts. Replace if damaged, corroded, or missing to restore cycle completion tones.

Push-in nut for washers. Secures components and panels inside the cabinet. Replace if cracked, broken, or missing to restore proper assembly.

Dryer won't start when you press the button? The start switch sends the signal to begin the cycle. Simple 5-10 minute fix with basic tools.

Replace a cracked or broken dryer timer knob with this complete dial assembly. Simple DIY repair that restores cycle control. Video available.

White acrylic touch-up paint for appliances. Covers scratches, chips, and scuffs on refrigerators, washers, dryers, and ranges. 1-quart can restores finish.

Gray acrylic spray paint for coating worn or chipped dryer drum interiors. Restores the protective finish when the original coating is scratched or flaking.

White push-to-start knob for dryer control panel. Replaces broken, cracked, or missing start knobs. Direct fit replacement for dryer control interface.

White acrylic spray paint for appliance exterior touch-ups. Restores worn, chipped, or scratched surfaces on refrigerators, ranges, and more. 13 oz can.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
