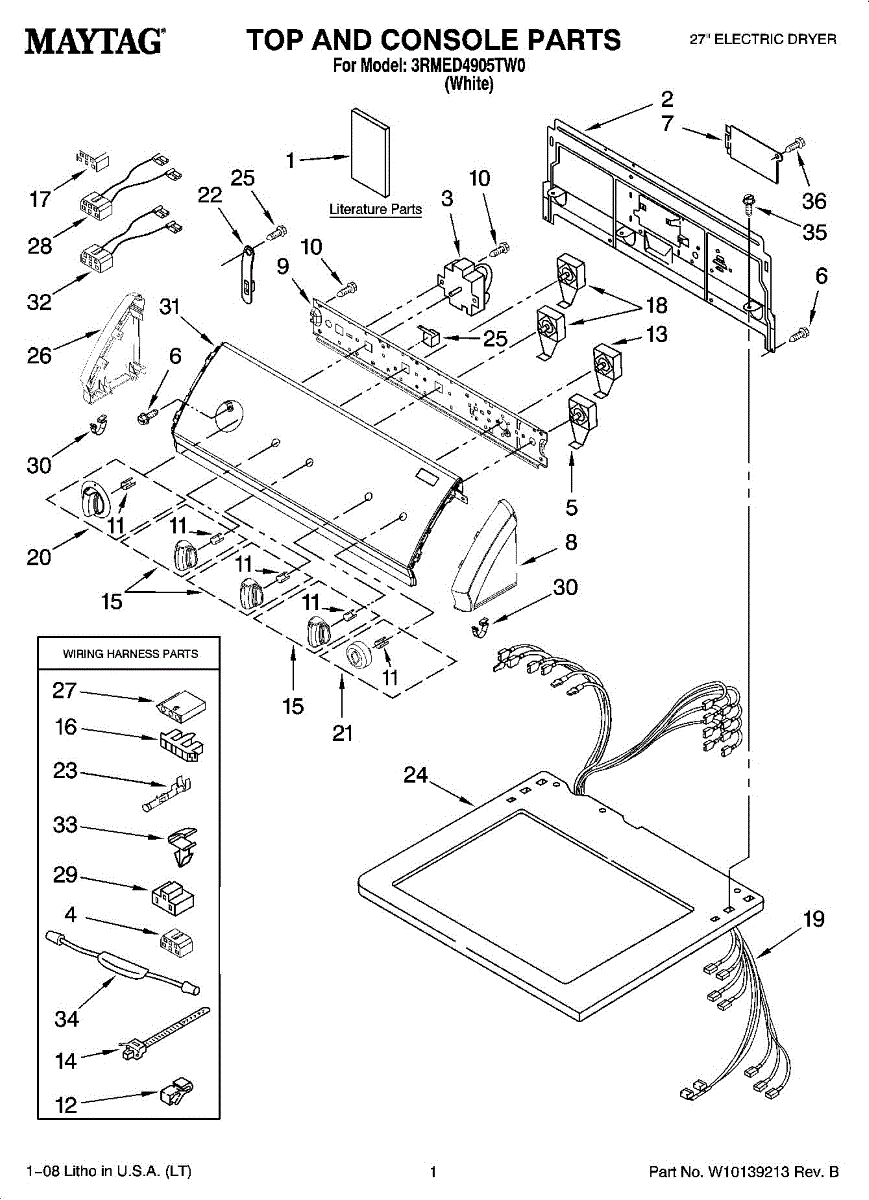

Parts for Maytag 3RMED4905TW0: 01 - Top And Console Parts

This 3-cycle timer controls the sequence and duration of wash/dry cycles, restoring proper cycle advancement and timing so your appliance completes its selected program reliably. What it does:

• Advances the appliance through programmed cycles and controls how long each cycle runs
• Replaces a worn or failed timer that prevents cycle progression or causes the unit to stop mid-cycle
• Can resolve symptoms like cycles not starting, not advancing, or failing to complete
• Works as the timed control for mechanical cycle selection and sequencing

• Disconnect power before starting; for gas models, shut off the gas supply first
• Handle the timer carefully and note wiring locations or take a photo for reference
• Mount and wire the new timer exactly as the old unit was connected

This is a replacement 8-18 x 7/32 machine screw used to secure panels and small components in compatible Whirlpool appliances. It restores proper fastening where a screw is missing, stripped, or damaged. What it does:

• Secures panels, trim pieces, brackets or small components to prevent movement
• Helps stop rattling, vibration noise, or loose-fitting parts
• Replaces missing or damaged screws to restore proper alignment of panels or controls
• Used wherever an 8-18 x 7/32 machine screw is specified by the manufacturer

• Unplug the appliance or turn off power before servicing.
• Use the correct screwdriver or bit to avoid stripping the head; tighten snugly but do not over-torque.
• Replace any stripped inserts or mating hardware if threads are damaged.

This terminal cover protects and conceals the appliance's electrical wire terminals for safer handling and cleaner internal appearance. It helps reduce accidental contact with live connections and keeps wiring organized. What it does:

• Covers exposed wire terminals to help prevent accidental contact and shorting
• Keeps wiring routed and held in place for improved serviceability
• Protects terminals from dust and debris that can affect connections
• Supports safer access during diagnostics and repairs

• One terminal cover, as shown

• Disconnect power to the appliance before attempting any service
• Remove outer panels as needed to access the terminal area; use manufacturer service guide for panel removal steps
• Align cover over the terminal block and secure per factory mounting points; do not force or modify
• If terminals or wiring appear damaged or corroded, replace or repair those components before reinstalling the cover

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement clamp secures flexible hoses and lines to prevent leaks and keep connections tight. It restores a secure seal so appliances move water or air without escaping at the joint. What it does:

• Secures inlet, drain or water lines to fittings and housings
• Helps stop leaks from loose or worn hose connections
• Keeps hoses from slipping off during operation or vibration
• Commonly replaced when clamps are corroded, broken, or no longer hold tension

• Inspect hose and fitting for damage before installing the new clamp
• Position clamp over the hose barb and tighten evenly until snug; avoid over-tightening
• Use appropriate tools (pliers or clamp driver) and follow appliance safety procedures
• Disconnect power and shut off water supply when working on water lines

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This control knob assembly replaces a worn or broken oven/stove knob to restore safe, reliable temperature and function control. It provides a firm grip and a precise interface for adjusting settings. What it does:

• Replaces a damaged or missing control knob so you can select heat and cooking settings accurately.
• Restores tactile feedback and secure attachment to the control shaft.
• Helps resolve symptoms like loose knob, slipping during adjustment, or inability to change settings.
• Matches OEM fit and mounting style for straightforward replacement.

• Remove power to the appliance before replacing the knob to avoid injury.
• Pull the old knob straight off the control shaft; align and push the new knob onto the splined shaft until fully seated.
• If the knob feels loose after installation, inspect the control shaft and hub for damage and replace the underlying control if necessary.
• Use common hand tools only.

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.

For mating terminal use [AP31136300].

This connector buzzer wire harness links the appliance control to the buzzer/alert so the unit can emit audible tones for cycle completion and error warnings. Replaces a damaged or corroded buzzer connector to restore alert sounds. What it does:

• Provides the electrical connection between the control board and the buzzer/alert assembly.
• Restores audible beeps or tones when the original connector is loose, broken, or corroded.
• Helps prevent intermittent or no-sound conditions caused by poor connector contact.
• Fits into the existing harness and plugs into the buzzer/board mating connector.

• One connector buzzer wire harness (1 piece).

• Disconnect power to the appliance before inspecting or replacing the connector.
• Unplug the old connector from the buzzer/control; note orientation and routing before removing.
• Plug the replacement connector into the matching buzzer/control socket until it snaps into place.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

This fixed-value resistor is an electrical component used in select dryers to limit current in a specific control circuit. It helps the timer or electronic control operate correctly by dropping voltage to safe, design-intended levels.

• Provides precise resistance to reduce voltage/current in the designated dryer circuit
• Supports proper operation of the timer, control board, or end-of-cycle signal (varies by model)
• Failure may present as a timer that won't advance, an inoperative signal/buzzer, or irregular cycle behavior
• Replace if visibly burned/damaged or if testing shows an open or shorted condition

• Disconnect power to the appliance before servicing
• Access the console/wiring harness and note original wire routing
• Make secure, insulated connections and route the resistor/leads exactly as original to avoid heat or chafing
• After installation, run a test cycle to ensure proper operation of the affected function
