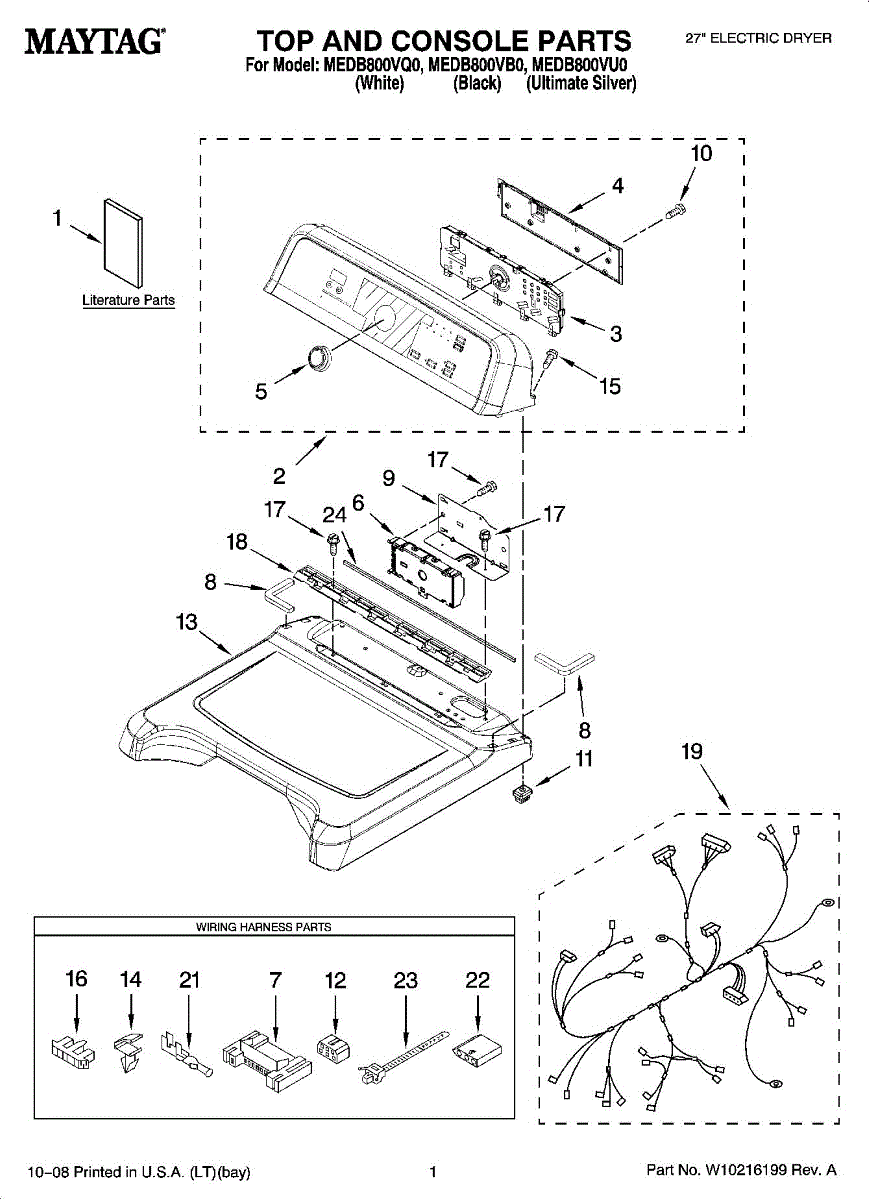

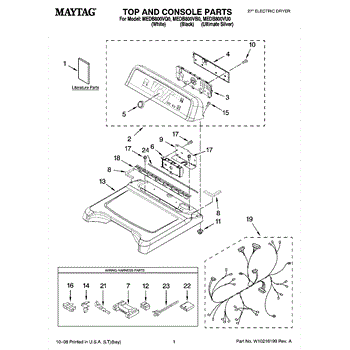

Parts for Maytag MEDB800VB0: 01 - Top And Console Parts

Electronic Sahara control board that manages cycle selection, timing and the user interface. Replaces a failed control to help restore responsive controls and correct cycle operation when the dryer exhibits unresponsive buttons, error codes, or won't start. What it does:

• Regulates cycle selection, timing and control signals for the appliance
• Manages start/stop inputs, user interface feedback and cycle sequencing
• Common symptom part: unresponsive touchpad/buttons, blinking lights or error codes

What's included: One electronic control board. Install notes:

• Always disconnect power before servicing the appliance
• Access requires removing the control console or panel; keep fasteners organized
• Handle the board by the edges and avoid static discharge; transfer any overlays or mounting hardware if required

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Screw for control panel.

Secures dryer drum components and prevents rattling. Replace if broken or missing to restore quiet operation. Verify fit with your model number.

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

Replacement mounting screw for dryer assembly. Used to secure internal components and panels. Order a new screw if original is stripped, lost, or damaged.

Self-drilling screw secures panels, brackets, and trim without pre-drilling. Replace missing or stripped screws during appliance repair or reassembly.

For mating terminal use [AP31136300].

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it
