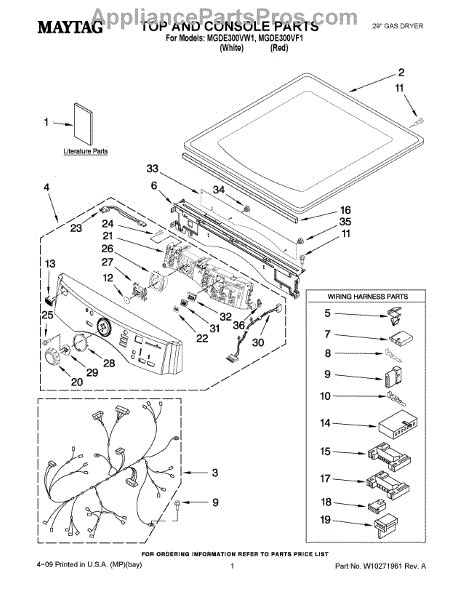

Parts for Maytag MGDE300VF1: 01 - Top And Console Parts

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

For mating plug use 691707.

For mating terminal use [AP31136300].

For mating terminal use WP94614.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

A replacement control knob that restores safe, accurate control of your appliance's settings. Simple push-on design matches original fit and lets you adjust temperature or function with a secure grip. What it does:

• Replaces a worn, cracked, or missing control knob so you can reliably change settings
• Engages the control shaft splines to provide positive, slip-free rotation
• Restores correct tactile feel for precise adjustments
• Helps prevent accidental changes caused by damaged knobs

• One control knob

• Disconnect power to the appliance before servicing to avoid shock or injury
• Pull the old knob straight off the control shaft; install the new knob by aligning splines and pushing firmly until seated
• Do not force the knob if it resists—check spline orientation and fit first
• If the control shaft is damaged or the knob does not seat properly, replace the control.

This replacement screw secures appliance components and panels so they stay aligned and rattle-free during operation. Replace stripped, missing, or corroded hardware to restore a tight fit and dependable performance. What it does

• Fastens brackets, panels, and internal sub-assemblies in the appliance
• Helps maintain alignment to reduce vibration and rattling
• Replaces missing, rusted, or stripped screws that no longer hold
• Useful when a part won't mount securely or a screw backs out during use

• One screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Compare to the original for length and thread style for the location
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Do not overtighten; if the mounting hole or clip is worn, replace it
