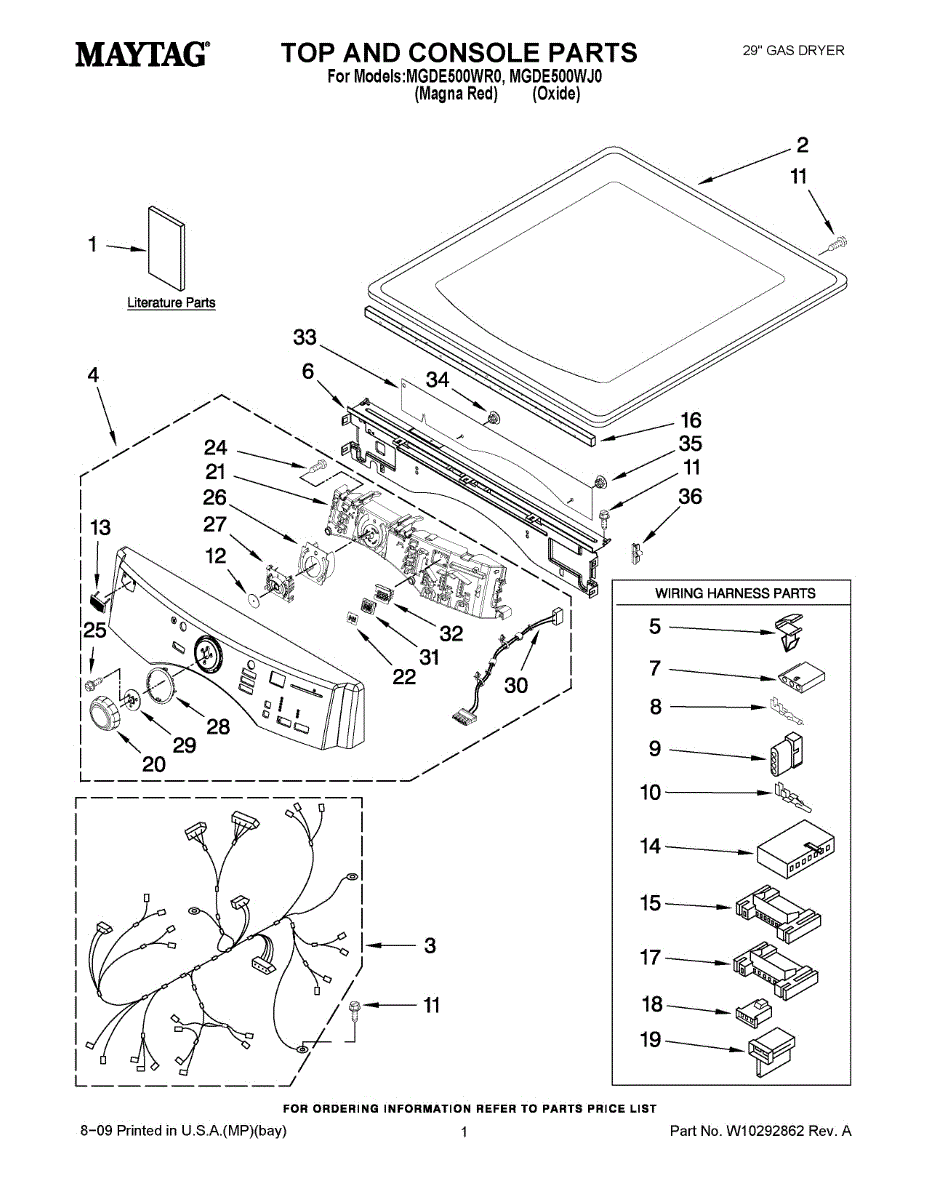

Parts for Maytag MGDE500WJ0: 01 - Top And Console Parts

Wire harness for dryers. Connects electrical components inside the dryer cabinet. Replace if wires are frayed, damaged, or connections are loose or burnt.

Replaces the front control console and trim on your dryer. Needed when the original console is cracked, broken, or worn, restoring a finished look.

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

For mating plug use 691707.

For mating terminal use [AP31136300].

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

For mating terminal use WP94614.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• O

Replace your dryer seal to prevent air leaks and improve drying efficiency. Install when you notice gaps or worn edges. Verify fit with your model number.

5-circuit wire harness connector for dryers. Connects wiring harness to control board. Replace if cracked, damaged, or pins are bent or corroded.

2-position wire connector for dryers. Replaces damaged, melted, or corroded connectors in electrical wiring harnesses. Essential for restoring connections.

A replacement control knob that restores safe, accurate control of your appliance's settings. Simple push-on design matches original fit and lets you adjust temperature or function with a secure grip. What it does:

• Replaces a worn, cracked, or missing control knob so you can reliably change settings
• Engages the control shaft splines to provide positive, slip-free rotation
• Restores correct tactile feel for precise adjustments
• Helps prevent accidental changes caused by damaged knobs

• One control knob

• Disconnect power to the appliance before servicing to avoid shock or injury
• Pull the old knob straight off the control shaft; install the new knob by aligning splines and pushing firmly until seated
• Do not force the knob if it resists—check spline orientation and fit first
• If the control shaft is damaged or the knob does not seat properly, replace the control.

This replacement screw secures appliance components and panels so they stay aligned and rattle-free during operation. Replace stripped, missing, or corroded hardware to restore a tight fit and dependable performance. What it does

• Fastens bracket

Replace your dryer's internal wire harness if damaged, frayed, or showing exposed wires. Connects electrical components inside the dryer cabinet.
