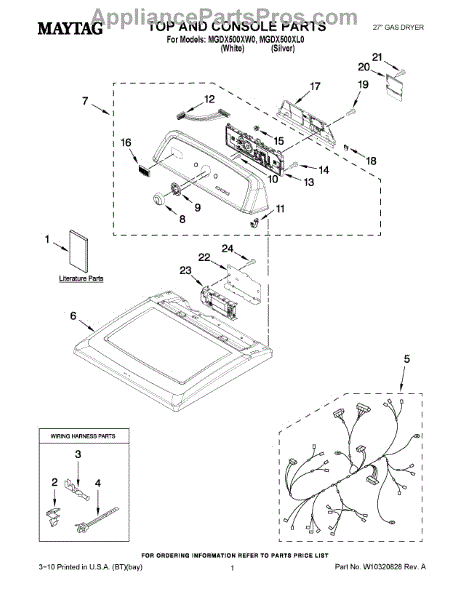

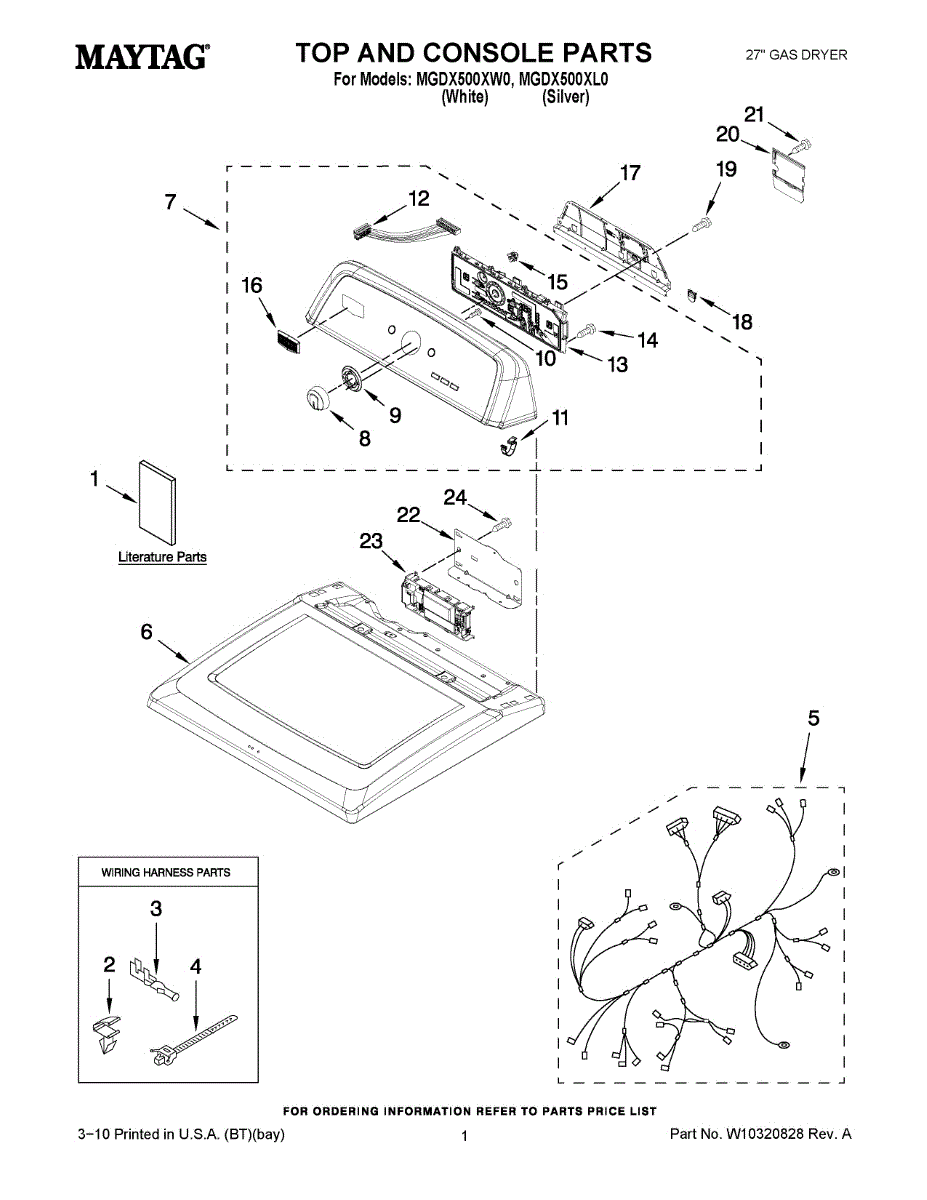

Parts for Maytag MGDX500XW0: 01 - Top And Console Parts

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

For mating terminal use [AP31136300].

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This replacement control knob lets you select settings and operate the appliance's controls with a secure grip and clear position index. Restores reliable user control when the original knob is cracked, loose, or worn. What it does:

• Replaces a damaged or missing control/selector knob so you can turn and set controls accurately
• Snaps onto the control shaft to provide a solid tactile stop and visible setting indicator
• Commonly used when the original knob is cracked, stripped, stiff, or spins on the shaft
• Matches OEM fit and rotation for proper function and alignment

• One control knob

• Remove power to the appliance before replacing the knob to avoid injury
• Pull the old knob straight off the control shaft and push the new knob onto the shaft until it seats
• If the knob will not fully seat, check for obstructions or a damaged shaft before forcing it

This replacement bezel restores the control panel trim for a smooth, finished look and helps protect the console area from spills and wear. It's a direct-fit cosmetic and protective piece for the appliance control area. What it does:

• Covers and protects the control panel surface and underlying components from spills and damage
• Provides the finished trim that secures buttons, dials, or the display area
• Replaces cracked, warped, or cosmetically damaged trim that can catch debris or impede controls
• Helps keep the control area sealed and easier to clean

• Disconnect power to the appliance before starting any repairs to avoid shock or injury
• Typical installation requires removing a few screws or clips on the control console; keep fasteners for reassembly
• Handle painted or plastic surfaces carefully to avoid scratching; use a soft, non-marring tool to pry clips if needed

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening so panels and parts stay aligned and stable during normal use. What it does:

• Fastens appliance panels, trim or internal components in place
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop panel vibration and maintain proper component alignment
• Matches OEM fit where specified for a secure installation

• One replacement mounting screw

• Verify screw size and fit before installation; use the correct screw location from your parts diagram
• Turn off and disconnect power to the appliance before accessing internal components
• Hand-start the screw to avoid cross-threading; tighten until snug—do not over-tighten
• Wear safety glasses and follow manufacturer service instructions when applicable

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This electronic control board is the dryer user interface assembly that manages cycle selection, timing and display feedback so the dryer responds correctly to button presses and cycle commands. Replaces a failed console control for reliable operation. What it does:

• Receives input from buttons/knobs and sends commands to the dryer to start, stop and select cycles
• Controls timing, display indicators and mode selections for proper cycle sequencing
• Helps resolve symptoms like unresponsive buttons, no display or incorrect cycle settings
• Interfaces with other modules to coordinate heating and drum functions

• Disconnect power at the breaker before servicing to avoid electrical shock
• Handle the PCB by edges and avoid static discharge; use anti-static precautions if possible
• Replacement typically requires removing the dryer console; refer to your service manual for panel removal steps

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This electronic control board (CCU Sahara2 VMD) manages and coordinates your appliance's user interface, cycles, and system diagnostics so the machine runs the settings you choose reliably. It replaces a failing main control to restore normal control functions. What it does:

• Receives user inputs and sends commands to motors, valves, and heaters to run selected cycles
• Manages timing, cycle sequencing, and diagnostic/error reporting
• Updates and displays status to the console and coordinates sensor feedback
• Common symptoms of a failing board: no response to controls, intermittent operation, incorrect cycles, or persistent error codes

• One electronic control board (CCU Sahara2 VMD)

• Disconnect power before servicing to avoid shock or damage
• Handle the board by the edges and avoid static discharge; use an anti-static wrist strap if available
• Verify all harness connections are fully seated and inspect connectors for damage before powering up

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening
