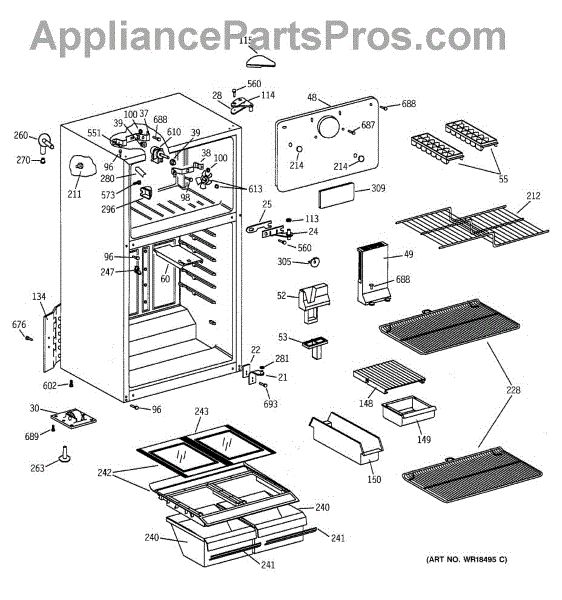

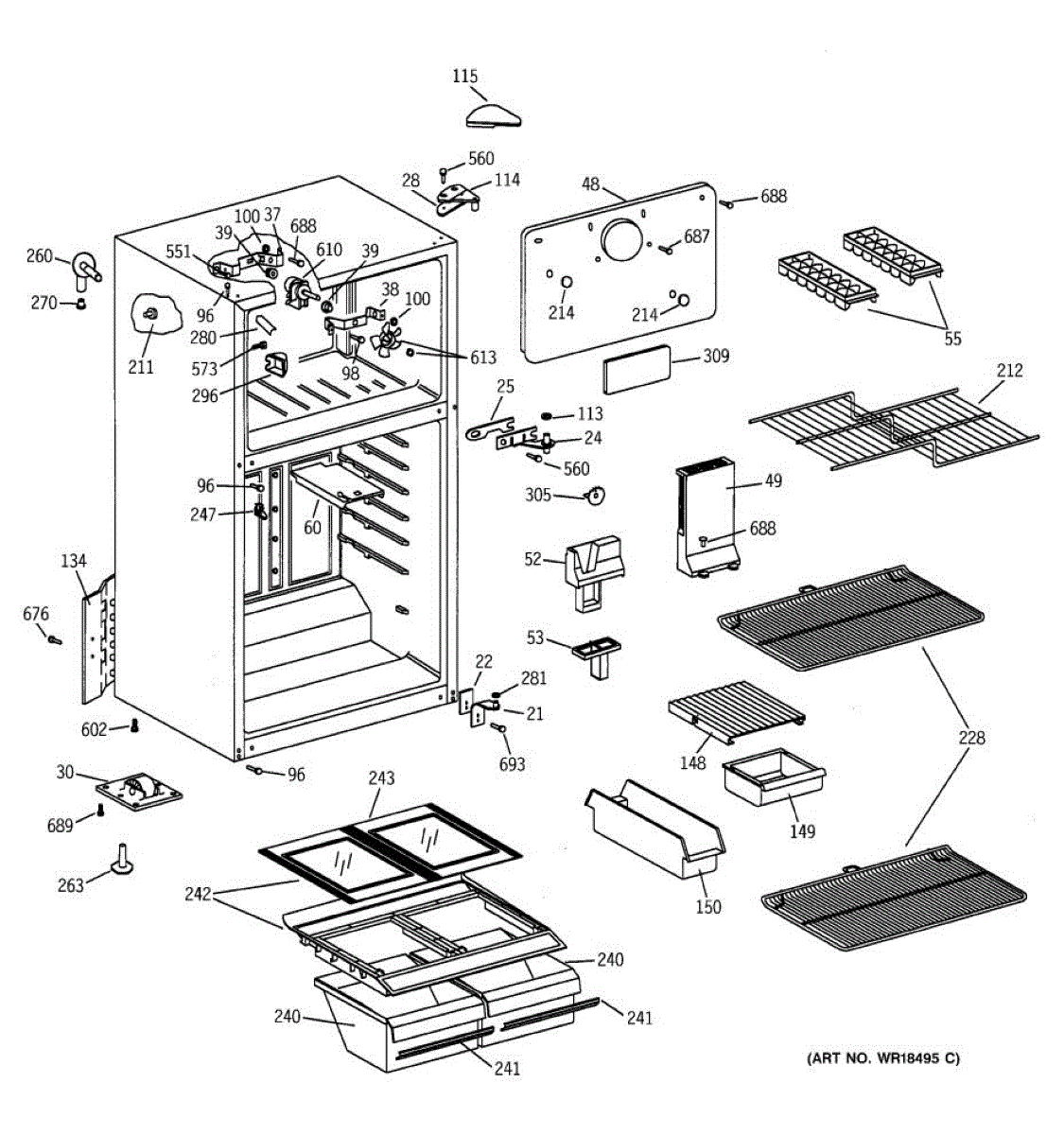

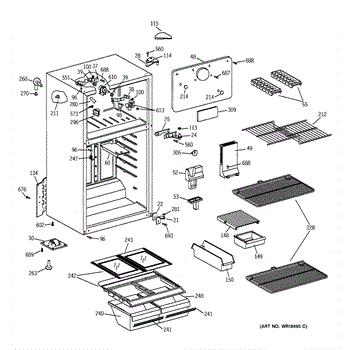

Parts for Ge CTX16FAZBAD: 02 - Cabinet Parts

This hinge center shim assembly helps align and stabilize the refrigerator door hinge for smooth operation and proper door sealing. Use it to correct minor door tilt or to replace a worn or damaged hinge shim. What it does:

• Centers and spaces the door hinge to maintain correct door alignment
• Reduces door sag and helps ensure an even seal along the cabinet
• Restores smooth hinge movement when original shim is cracked or deformed
• Helps prevent rubbing or binding that can cause wear on hinge parts

• Inspect hinge and surrounding hardware before installation; replace any worn fasteners.
• Power off and empty door items if removal of the door is required for access.
• Use appropriate hand tools; do not force parts into position to avoid damage.

Mounting bracket that secures shelves and internal components in your refrigerator. Replace if cracked, broken, or missing to keep shelves stable and prevent shifting.

The Freezer Shelf is an OEM replacement part for GE freezers. This shelf provides storage throughout the freezer compartment. It measures approximately. 25" x 12".

Causes of a bad freezer shelf can include cracked or broken steel from overloading, corrosion from moisture exposure over years of use, or damage from impact.

Symptoms of a faulty shelf include:

• Visible cracks, breaks, or fractures in the steel
• Shelves that cannot adequately bear the weight of frozen items
• Missing or detached shelf mounting fasteners
• Sharp edges or projections creating a safety concern

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Wire shelf for refrigerator fresh food section. Provides stable storage surface for organizing food items. Replace if cracked, broken, or missing.

Leveling leg threads into the refrigerator base to support and stabilize the cabinet. Replace if cracked, broken, or worn to keep your unit level.

Refrigerator plug button that installs in the cabinet or liner. Replace this insert if the original is cracked, broken, missing, or worn from use.

This 1/4-20 tap screw secures appliance components where a coarse 1/4-20 thread is required. It restores fastener strength for panels, brackets, or assemblies to reduce rattling and maintain proper alignment. What it does:

• Fastens panels, brackets, and small assemblies that use a 1/4-20 tapped hole
• Restores secure attachment when original screw is stripped, missing, or damaged
• Helps stop vibration-related noise by holding parts tightly in place
• Matches OEM thread type to ensure correct fit in tapped holes

• Turn off power and unplug the appliance before accessing internal components.
• Use the correct driver and apply steady pressure to avoid stripping the head or the tapped hole.
• Do not overtighten; stop when the part is snug and secure.
• Repair or replace the threaded insert before installing a new screw.

The Evaporator Motor is an OEM part for GE refrigerators. This air circulation is essential for maintaining the set temperature within the refrigerator and freezer compartments, ensuring your food stays fresh and frozen items remain solid.

Causes of a bad Evaporator Motor can range from wear and tear over time, which can degrade the motor's components, to electrical issues like short circuits or failed bearings, which can impede the motor's ability to function properly.

Symptoms of a malfunctioning Evaporator Motor include:

• The refrigerator or freezer not cooling adequately
• Unusual noises coming from the refrigerator, indicating the motor may be struggling or has failed
• Frost build-up on the evaporator coils due to insufficient air circulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Freezer not cooling or making buzzing noise? The evaporator fan blade circulates cold air. Easy DIY fix in under 5 minutes—simply pull off and press on.

Size: 10-16 ab.

Panel mounting screw for refrigerators. Secures access panels, trim pieces, and internal brackets. Replace lost, stripped, or corroded fasteners.

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage
