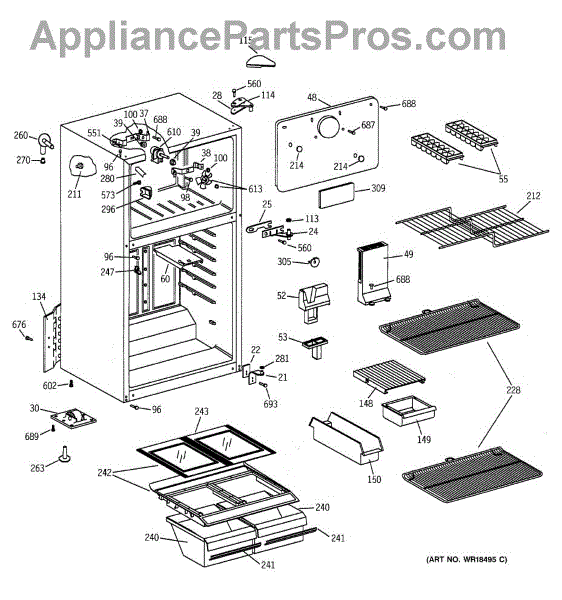

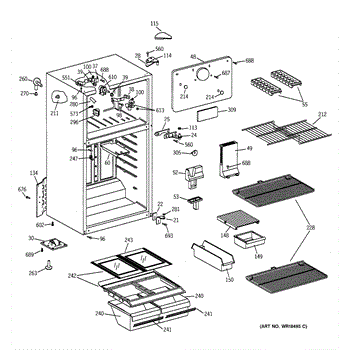

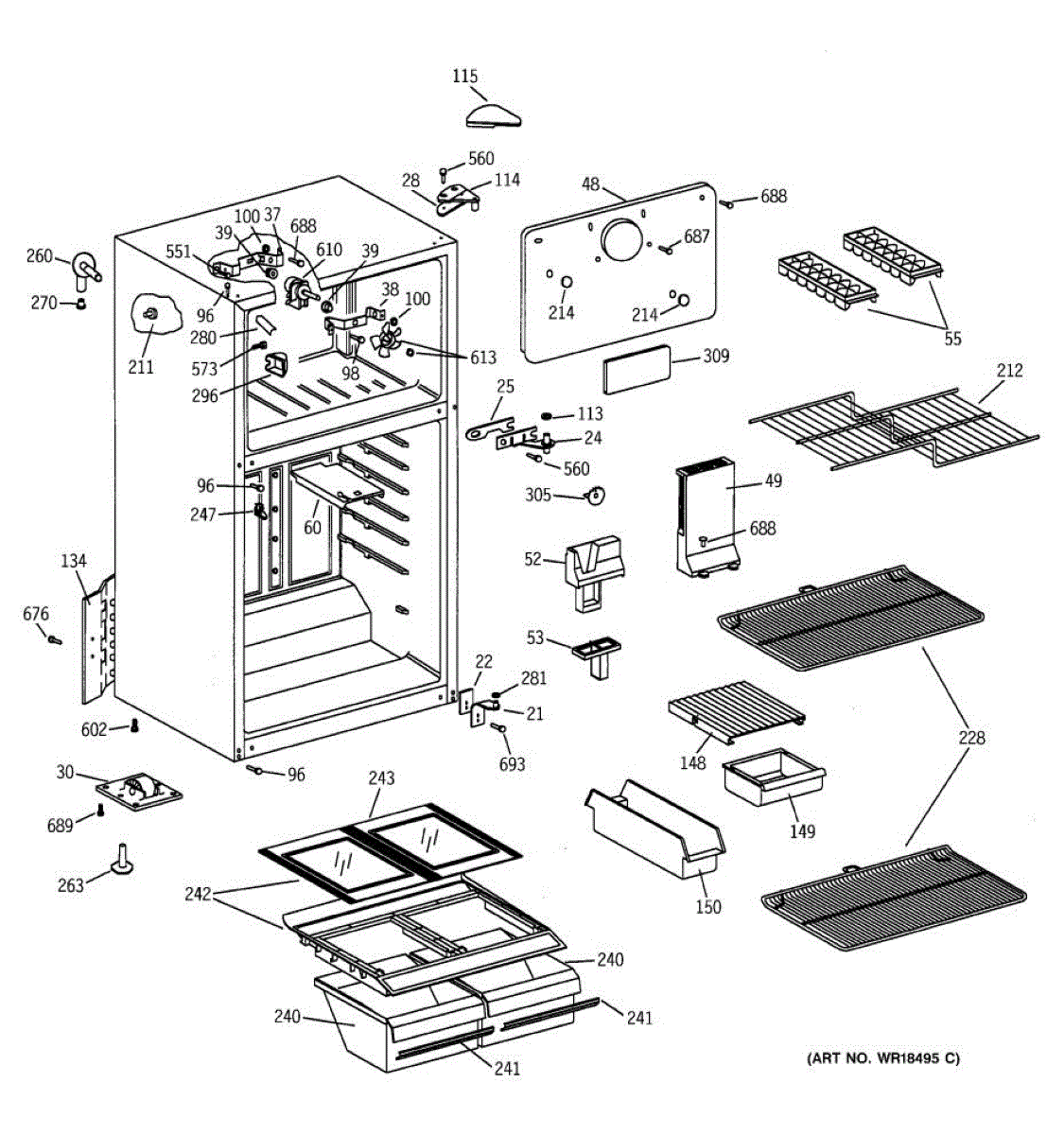

Parts for Ge CTX16FAZBWH: 02 - Cabinet Parts

This OEM-style support secures internal components to restore proper alignment and stability. Use it to replace a cracked or worn support so shelves, drawers, and mounted parts stay in place and stop shifting or rattling. What it does:

• Stabilizes and supports internal appliance components to maintain proper alignment.
• Replaces cracked, broken, or worn supports that cause sagging, shifting, or rattling.
• Restores mounting points so shelves, drawers or panels sit and operate correctly.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Basic hand tools are typically required; you may need to remove adjacent trim or shelves for access.
• Inspect surrounding mounting points and clips; replace any additional damaged hardware.

The Freezer Shelf is an OEM replacement part for GE freezers. This shelf provides storage throughout the freezer compartment. It measures approximately. 25" x 12".

Causes of a bad freezer shelf can include cracked or broken steel from overloading, corrosion from moisture exposure over years of use, or damage from impact.

Symptoms of a faulty shelf include:

• Visible cracks, breaks, or fractures in the steel
• Shelves that cannot adequately bear the weight of frozen items
• Missing or detached shelf mounting fasteners
• Sharp edges or projections creating a safety concern

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Shelf is an OEM part for GE refrigerators. It provides a stable and durable surface for storing food and other items within the refrigerator. The shelf is designed to fit seamlessly into the refrigerator's interior, maximizing space and organization. It measures approximately 25 inches wide by 14 inches deep.

Over time, the shelf can become damaged due to heavy loads, accidental impacts, or regular wear and tear. If you notice cracks, chips, or instability in the shelf, it is important to replace it to ensure safe and effective storage.

Symptoms of a bad shelf include:

• Cracks or visible damage
• Difficulty in keeping items stable
• Reduced storage capacity due to instability

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This leveling leg supports and stabilizes the refrigerator cabinet. Adjusting it keeps the unit level so doors align and seal correctly, helping reduce vibration and noise for smoother, more reliable performance.

• Threads into the base to support and level the appliance
• Allows height adjustment for proper door alignment and gasket contact
• Helps reduce rocking, vibration, and rattling noises
• Resolve issues like doors not closing fully, uneven gaps, or a wobbly cabinet

• Disconnect power and move the appliance carefully to access the leg
• Use a helper and protect flooring; tip the unit slightly and support it securely
• Unthread the old leg; hand-thread the new leg, then adjust as needed with a wrench
• Level front-to-back and side-to-side; avoid cross-threading or overtightening

This 1/4-20 tap screw secures appliance components where a coarse 1/4-20 thread is required. It restores fastener strength for panels, brackets, or assemblies to reduce rattling and maintain proper alignment. What it does:

• Fastens panels, brackets, and small assemblies that use a 1/4-20 tapped hole
• Restores secure attachment when original screw is stripped, missing, or damaged
• Helps stop vibration-related noise by holding parts tightly in place
• Matches OEM thread type to ensure correct fit in tapped holes

• Turn off power and unplug the appliance before accessing internal components.
• Use the correct driver and apply steady pressure to avoid stripping the head or the tapped hole.
• Do not overtighten; stop when the part is snug and secure.
• Repair or replace the threaded insert before installing a new screw.

The Evaporator Motor is an OEM part for GE refrigerators. This air circulation is essential for maintaining the set temperature within the refrigerator and freezer compartments, ensuring your food stays fresh and frozen items remain solid.

Causes of a bad Evaporator Motor can range from wear and tear over time, which can degrade the motor's components, to electrical issues like short circuits or failed bearings, which can impede the motor's ability to function properly.

Symptoms of a malfunctioning Evaporator Motor include:

• The refrigerator or freezer not cooling adequately
• Unusual noises coming from the refrigerator, indicating the motor may be struggling or has failed
• Frost build-up on the evaporator coils due to insufficient air circulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Blade is an OEM component for GE freezers and bottom-mount refrigerator designs. Located inside the freezer compartment, this fan blade spins to circulate cold air evenly throughout the storage space.

Causes of a faulty evaporator fan blade include natural fatigue from running year-round. Freezers exposed to humid environments may experience faster corrosion.

Symptoms include:

• Abnormal sounds like knocking or clunking from inside the walls
• cold spots developing in certain freezer areas
• Higher power bills from inefficient temperature regulation
• Frost or ice patches forming on evaporator coils

This part is also compatible with some brands like Hotpoint, RCA, and Kenmore.

Size: 10-16 ab.

This screw secures panels and components on compatible GE appliances to restore proper fit and reduce vibration. Use it to replace a lost or stripped fastener and keep covers and brackets held firmly in place. What it does:

• Fastens access panels, trim pieces, or internal brackets to maintain proper alignment
• Stops rattling or vibration caused by missing or loose screws
• Restores secure mounting after repair or parts replacement
• Works where the appliance requires a short sheet-metal or machine screw for fastening

• Disconnect power to the appliance before removing panels or performing repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Hand-start the screw to ensure proper threading; tighten until snug but avoid over-torquing.

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage
