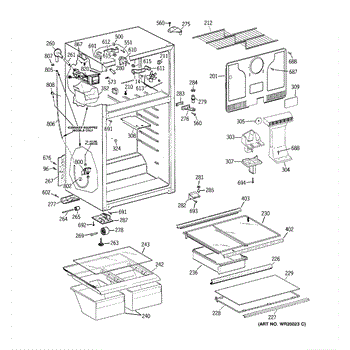

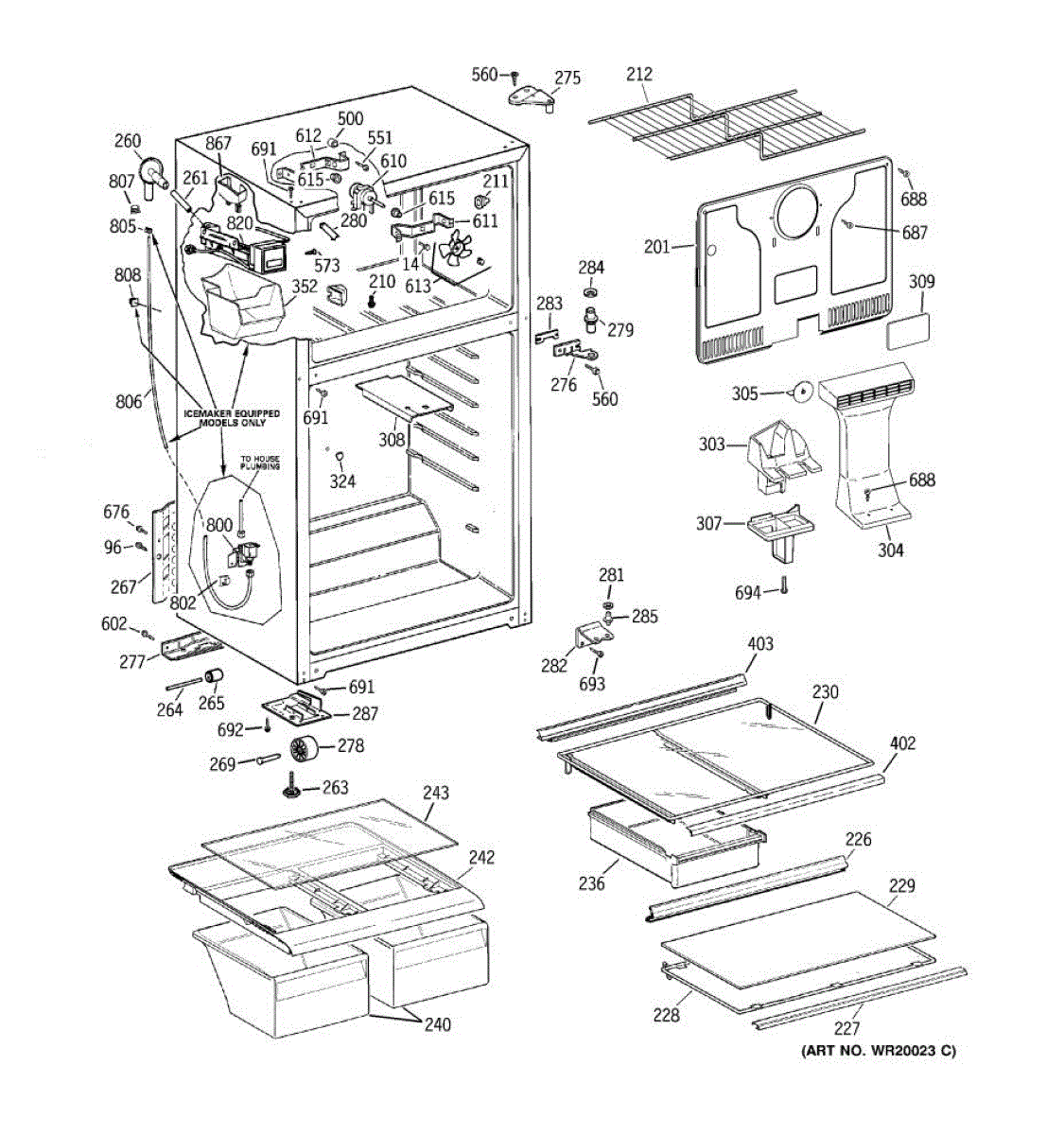

Parts for Ge HTM17GCSERSA: 02 - Cabinet Parts

Mounting bracket that secures shelves and internal components in your refrigerator. Replace if cracked, broken, or missing to keep shelves stable and prevent shifting.

The Freezer Shelf is an OEM replacement part for GE freezers. This shelf provides storage throughout the freezer compartment. It measures approximately. 25" x 12".

Causes of a bad freezer shelf can include cracked or broken steel from overloading, corrosion from moisture exposure over years of use, or damage from impact.

Symptoms of a faulty shelf include:

• Visible cracks, breaks, or fractures in the steel
• Shelves that cannot adequately bear the weight of frozen items
• Missing or detached shelf mounting fasteners
• Sharp edges or projections creating a safety concern

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Shelf Frame only, Glass not included

Replace a cracked, chipped, or missing glass shelf in your refrigerator. Restores smooth storage surface to keep food organized and visible.

Replacement meat pan drawer for the fresh food section. Restores organized storage when original is cracked, broken, or missing. Slides into shelf rails.

Clear lower crisper drawer for refrigerator vegetable storage. Replace your cracked, broken, or missing drawer to restore organized produce storage.

The Glass Shelf is an OEM part for GE refrigerators. This sturdy glass shelf is designed to fit securely within the refrigerator compartment, providing a stable surface for organizing food and beverages. The glass shelf measures approximately 24 inches in width and 12 inches in depth.

You should replace this glass shelf if it becomes cracked, chipped, or otherwise damaged. Common causes of damage include accidental impacts, placing excessively heavy items on the shelf, or sudden temperature changes that can weaken the glass over time.

Symptoms of a bad glass shelf include:

• Visible cracks or chips in the glass
• The shelf not sitting securely or wobbling
• Difficulty in organizing items due to the shelf's instability

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vegetable Pan Cover is an OEM replacement part for GE refrigerators. This transparent cover fits over the vegetable/crisper drawers, helping to maintain the ideal humidity levels and keep produce fresh for longer periods. The pan measures approximately 24 inches wide by 19 inches deep.

Symptoms of a bad vegetable pan cover include:

• Crisper drawers drying out too quickly, causing produce to wilt or spoil prematurely
• Inability to properly control humidity levels within the crisper compartment
• Cracks or damage to the cover, preventing an airtight seal

Causes of needing to replace the vegetable pan cover can range from physical damage due to impact or mishandling, to general wear and tear over time that can cause warping or degradation of the plastic material.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Donut-shaped gasket creates a tight seal between refrigerator components. Replace when worn to stop minor leaks and restore secure fit. Verify fit with your model number.

Leveling leg threads into the refrigerator base to support and stabilize the cabinet. Replace if cracked, broken, or worn to keep your unit level.

Rear mobility wheel mounts to the back base of your refrigerator. Replace if worn, cracked, or causing uneven rolling when moving the unit for cleaning.

The GE access cover is an OEM replacement part responsible for covering the compressor area on a refrigerator. This panel is located on the rear or bottom of the refrigerator and provides easy access to the compressor and condenser coils and prevents dirt and debris from entering the compressor area. When this part becomes damaged, it can lead to issues such as poor cooling performance, excessive noise from the compressor area, or even compressor overheating.

Symptoms of a bad access cover include:

• Visible cracks, breaks, or deformation in the cover
• Difficulty in securing the cover properly in place
• Increased dust or debris buildup inside the refrigerator
• Exposed internal components

Causes of a bad access cover can include accidental impacts, wear and tear from frequent removal and reinstallation, and environmental factors like temperature fluctuations or moisture exposure.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Secure rivet for refrigerator interior panels and structural components. Replace if worn, loose, or missing to restore proper assembly and fit.

Rear rail support plate for refrigerators. Mounts inside the cabinet to support shelving rails. Replace if cracked, broken, or missing for stability.

Black corner cap cover for top-mount refrigerators. Replaces cracked, broken, or missing corner trim pieces. Installs on exterior cabinet edges.

Small washer that fits on refrigerator door hinges to distribute weight and reduce friction. Replace if worn, cracked, or missing to restore proper alignment.

Bottom door hinge mounts at the lower corner of your refrigerator door. Replace if cracked, broken, or causing door misalignment and sagging issues.

Positions refrigerator door components with correct clearance for smooth swinging and level alignment. Replace if worn, cracked, or missing to restore fit.

Bottom hinge pin secures the refrigerator door at the base, allowing smooth opening and closing. Replace if worn, damaged, missing, or door sags.

Replace the right-hand mounting gusset bracket in your top-mount refrigerator. Needed when the original bracket is cracked, broken, or missing.

Left-hand support gusset plate for top-mount refrigerators. Replaces cracked, broken, or missing structural brackets that secure internal components.

Insulating foam duct that directs cold air from the evaporator through the fresh food compartment. Replace if cracked, compressed, or missing.

Channels cold air from the evaporator fan through the freezer compartment. Replace if cracked, broken, or missing to restore proper airflow seal.

Insulation foam that protects electrical components in your top-mount refrigerator. Replace if cracked, deteriorated, or missing to maintain proper coverage.

Air duct gasket seals the air passage in your refrigerator to maintain proper airflow and temperature. Replace if torn, compressed, or causing cooling issues.

Ice overflowing freezer or ice maker won't shut off? Replace the missing or broken ice bucket. Installs in minutes, no tools required.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement mounting screw for refrigerator interior components. Needed when original hardware is stripped, missing, or damaged during repairs or maintenance.

Fixes noisy fan, ice buildup, or warm fridge temps. This evaporator fan motor circulates cold air between compartments. DIY-friendly repair, 1 hour.

Mounts the evaporator fan assembly inside the freezer compartment. Replace if cracked, broken, or damaged from repeated fan motion or temperature stress.

Rear mounting bracket that secures the evaporator fan in your refrigerator. Replace if bracket is cracked, bent, or broken, causing fan misalignment.

Refrigerator not cooling evenly or making noise? The evaporator fan blade circulates cold air. Simple press-on installation in under 30 minutes.

Rubber grommet that seals and cushions where the evaporator fan motor shaft mounts. Replace if cracked, worn, or missing to eliminate noise and vibration.

Size: 10-16 ab.

Hex washer head screw for refrigerator assembly. Secures internal components like fan housings and panels. Replace if stripped, missing, or damaged.

Secures brackets, panels, trim, and covers inside your refrigerator. Replace this screw if stripped, missing, or damaged to restore tight assembly.

This 8-18 x 3/4 machine screw fastens appliance panels and small brackets to keep components secure and stable. It's a direct-fit replacement screw used where the original hardware has stripped, broken, or gone missing. What it does:

• Secures access panels, mounting brackets, and small assemblies
• Restores proper alignment and reduces rattling or vibration
• Replaces stripped or damaged fasteners
• Keeps wiring and components held in place for safe operation

• Unplug the appliance or disconnect power before starting work
• Use the correct driver and size to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to parts
• Replace corroded or damaged fasteners for best results

Replace missing or stripped mounting screws in your refrigerator. This screw secures internal components and panels. Essential for reassembly after repairs.

Ice maker not filling or water dispenser not working? This refrigerator water inlet valve controls water flow to both. DIY install in 10 minutes.

Secures trim and panels in your refrigerator. Replace when broken clips cause loose parts or rattling. Verify fit with your model number.

Secures refrigerator wiring to prevent chafing and vibration noise. Replace when damaged or missing to keep harnesses organized. Confirm fit by model.

Plastic water line that connects the water inlet valve to the ice maker. Replace if cracked, leaking, or damaged. Includes installation video.

Secures water lines and wiring inside your refrigerator to prevent vibration, rubbing damage, and leaks. Replace if broken or missing. Confirm fit.

Secures water tubing or wiring to your refrigerator cabinet. Replace if missing or damaged to prevent vibration, rubbing, or leaks. Confirm fit.

Ice maker not filling or water spilling? This fill cup directs water into the ice maker mold for proper ice production. Simple clip-on install.
