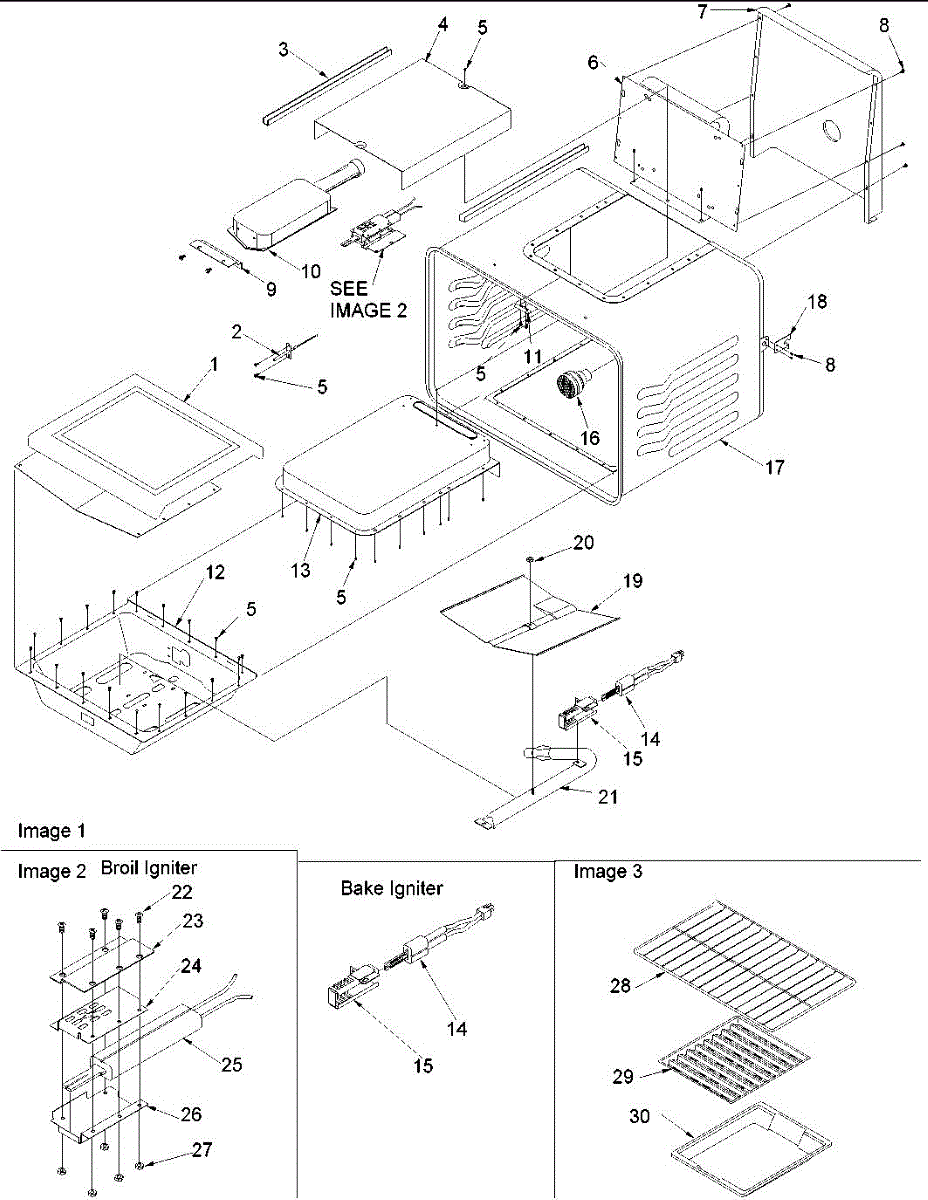

Parts for Amana ARGS7650E / P1130764N E: 02 - Cavity Parts

This temperature sensor monitors internal temperature and relays it to the control so heating or cooling can be regulated. Replacing a faulty sensor helps restore accurate temperature control, consistent cycling, and dependable performance. What it does

• Measures compartment or cavity temperature and sends a signal to the control
• Helps the unit reach and maintain the set temperature
• Common failure symptoms: temperature too hot/cold vs. setting, long/short cycling, failure to reach setpoint, or related error codes
• Tests out-of-range for resistance/ohms when defective

• 1 temperature sensor

• Disconnect power before servicing; shut off gas
• Access the sensor; note wire routing and connector orientation
• Do not pull on wires; transfer any clips, grommets, or brackets from the old sensor
• Restore power and run any model-specific diagnostics or calibration if required

The Oven Bake Igniter is an OEM replacement part for Whirlpool ovens and ranges. This igniter is responsible for sparking the gas or electrically heated bake burners in the oven. It ensures reliable ignition of the burners to provide consistent, even heat for baking.

Symptoms of a bad oven bake igniter include:

• Oven not heating up or baking as expected
• Unlit or intermittent bake burner flames
• Safety devices interrupting the oven cycle
• Visible aging or cracks in the igniter

Note: This igniter has been redesigned by the manufacturer and may not appear as shown in the photo. The photo is for identification purposes only. The part received may need ceramic wire connectors, part number TJMA01165-1.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas burner to produce heat, which is essential for baking and broiling. The igniter heats up to a high temperature and then sparks to ignite the gas, ensuring that the oven reaches and maintains the desired cooking temperature.

You should replace the oven igniter if it becomes faulty. Causes of a bad igniter can include electrical failures, wear and tear from regular use, or damage from exposure to high temperatures. A malfunctioning igniter can prevent the oven from heating properly or at all.

Symptoms of a bad oven igniter include:

• The oven not heating up or taking longer than usual to reach the desired temperature
• The igniter glowing but failing to ignite the gas burner
• No visible glow from the igniter when the oven is turned on
• The oven producing a clicking sound without igniting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Color: chrome. Measures about 23 inches wide by 16 inches deep.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
