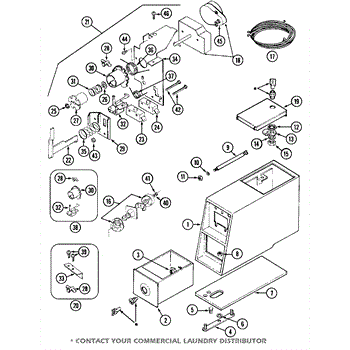

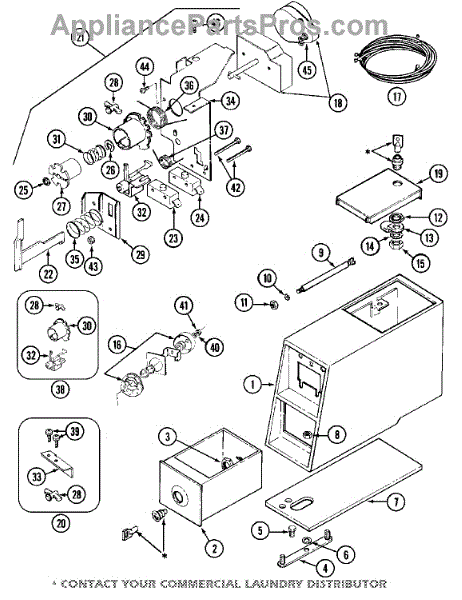

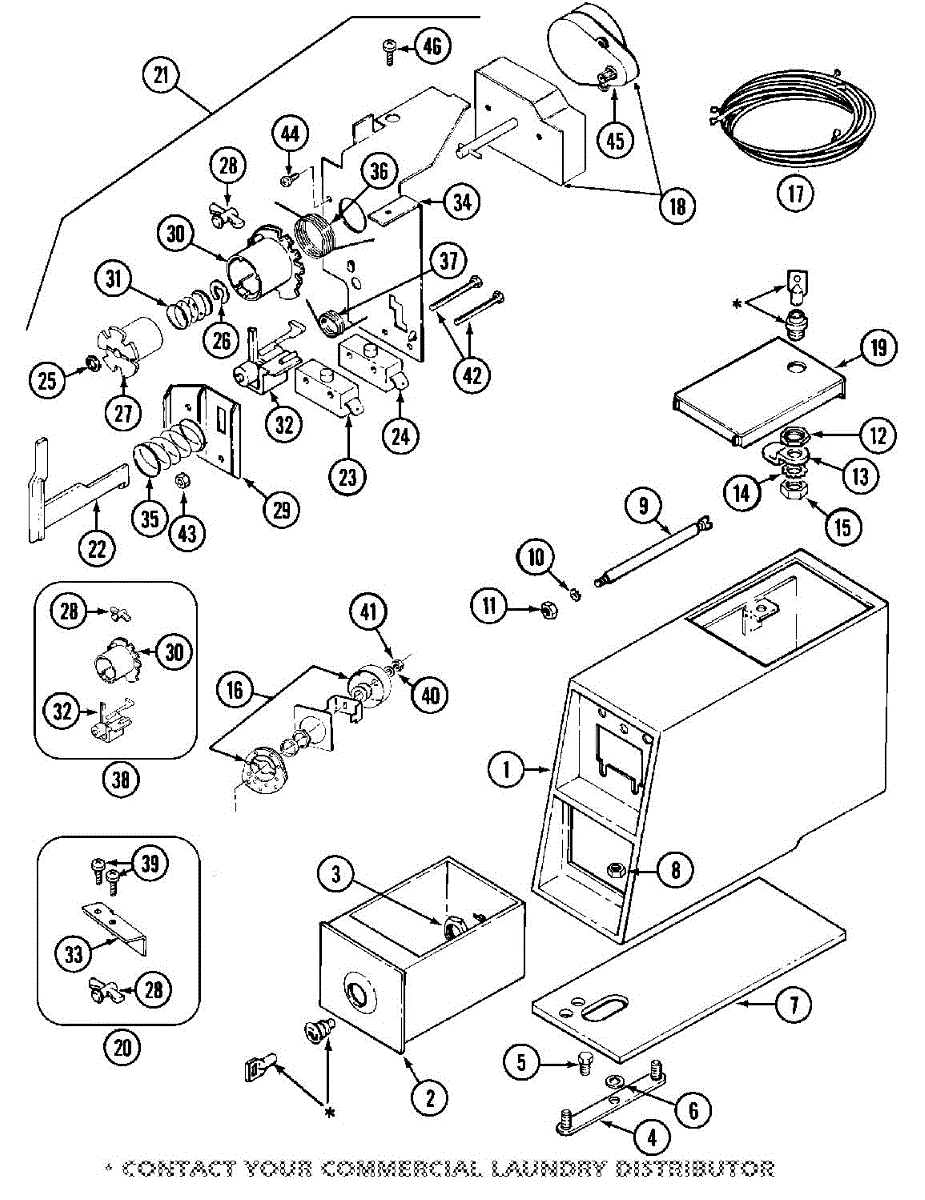

Parts for Maytag MDG10CSABL: 02 - Control Center Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A replacement 3/8-16 nut that secures fasteners and assemblies on compatible Whirlpool appliances. Restores proper fastening so panels, brackets and components stay tight and aligned during normal operation. What it does:

• Fastens and secures bolts, studs or threaded shafts in appliance assemblies.
• Prevents loose connections that can cause rattling, vibration or misalignment.
• Used where a 3/8-16 threaded nut is required for structural or mounting applications.
• Replaces missing, stripped or corroded nuts to restore reliable mechanical connection.

• Disconnect power and follow all appliance safety procedures before servicing.
• Inspect mating threads and remove debris; replace if threads are damaged.
• Thread onto bolt or stud by hand first, then snug with the correct wrench; avoid overtightening.
• Follow the appliance manufacturer's torque and assembly instructions.

This lock assembly secures the appliance access panel and restores a proper, stable latching action for safe operation. It replaces a worn or broken access lock so the panel stays closed when the appliance is in use. What it does:

• Provides a secure latch for the access/service panel to prevent unintended opening
• Replaces damaged, bent, or non-engaging lock components that cause loose or rattling panels
• Helps restore normal operation when a panel won't stay closed or is difficult to latch
• Works as the mechanical locking point for service access, improving user safety during operation

• One access lock assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal may require a screwdriver and access to the service panel; keep fasteners for reassembly
• Handle plastic clips and tabs carefully to avoid breakage; replace any damaged fasteners

This replacement control timer restores cycle sequencing and timing so the appliance advances through its selected cycles reliably. It replaces a worn or faulty timer to bring back consistent cycle control and operation. What it does

• Controls cycle timing and routes power to the appliance's functional circuits so selected cycles advance correctly.
• Advances mechanical/electrical cycle stages; a failing timer can prevent cycle changes or stop progress.
• Common symptoms: appliance won't advance through cycles, gets stuck on one cycle, or shows no response to the selector.
• Works as the main timing/control interface behind the control console—restores predictable cycle behavior when defective.

• Disconnect power (unplug or shut off breaker) before starting; verify power is off to avoid shock.
• Access typically requires removing the control panel or console; keep track of screws and fasteners.
• Match the replacement to the original (orientation and shaft length) before installing; secure mounting screws and reconnect connectors firmly.

This retaining ring secures a component in its groove on a shaft or housing, keeping parts aligned and in place during operation. Replace a bent, stretched, or missing ring to restore a tight hold and reduce movement or noise.

• Secures a component by seating in a groove on a shaft or inside a bore
• Maintains correct axial position so parts don't slide off during use
• Helps reduce wobble, vibration, or rattling caused by loose assemblies
• Typical symptoms: part won't stay seated, excess play or movement, scraping/rattling noises, or a visibly deformed ring

• Disconnect power; shut off water or gas if applicable. Wear eye protection and gloves
• Note ring orientation; use appropriate snap-ring/circlip pliers or picks—avoid overstretching
• Clean the groove and seat the ring fully; secure fit
• Replace any damaged spacers, washers, or seals found during service

This spring-timer knob replaces a worn, cracked or missing timer knob so you can set and adjust the appliance's mechanical timer reliably. Simple, direct replacement that restores the user control interface. What it does:

• Fits onto the appliance's mechanical timer shaft to allow setting and advancing the timer
• Restores a secure grip and pointer for accurate time selection
• Commonly used to fix loose, cracked, stripped, or missing timer knobs
• Helps resolve inability to turn or set the mechanical timer caused by a damaged knob

• Disconnect power to the appliance before starting any repair
• Pull the old knob straight off the timer shaft; align splines and press the new knob fully onto the shaft until seated
• If the knob is tight, use a proper knob puller or gentle, even leverage to avoid damaging the shaft

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

This lock assembly secures the appliance access panel and restores a proper, stable latching action for safe operation. It replaces a worn or broken access lock so the panel stays closed when the appliance is in use. What it does:

• Provides a secure latch for the access/service panel to prevent unintended opening
• Replaces damaged, bent, or non-engaging lock components that cause loose or rattling panels
• Helps restore normal operation when a panel won't stay closed or is difficult to latch
• Works as the mechanical locking point for service access, improving user safety during operation

• One access lock assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal may require a screwdriver and access to the service panel; keep fasteners for reassembly
• Handle plastic clips and tabs carefully to avoid breakage; replace any damaged fasteners

Size: 8-32 x 1/4 inch.

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing
