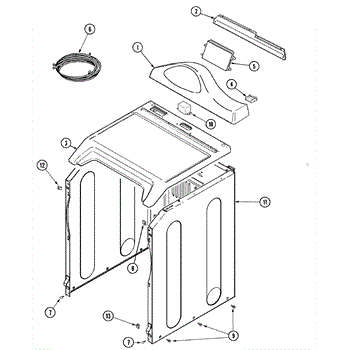

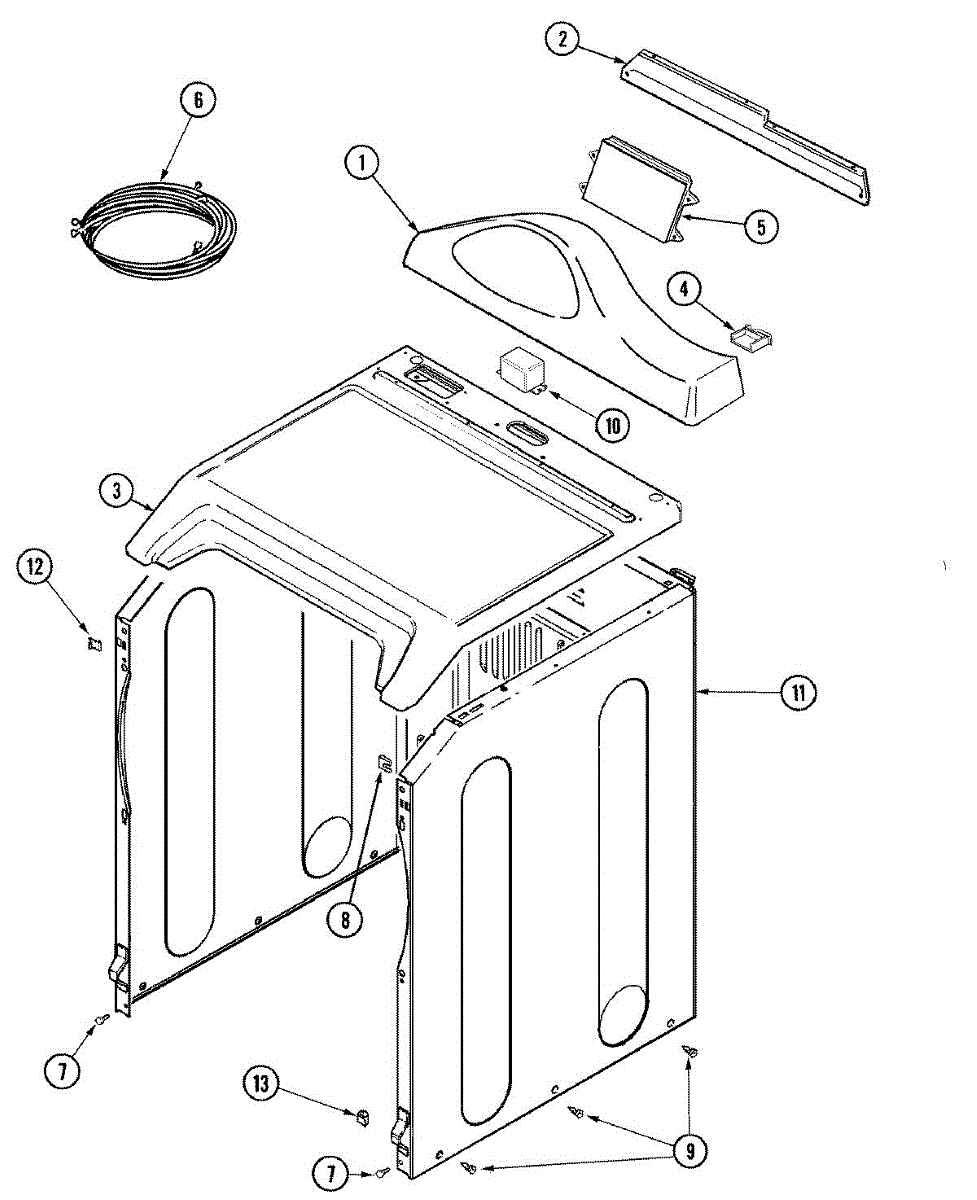

Parts for Admiral MDE7550AGW: 02 - Control Panel & Cabinet Parts

This is a genuine replacement screw used to secure appliance panels and components, restoring proper fit and reducing vibration or rattling. Simple, low-cost fastener that helps keep parts aligned and stable. What it does:

• Fastens panels, brackets, or trim to the appliance frame
• Restores secure connections that can cause buzzing, rattling, or loose trim
• Replaces missing or stripped hardware to prevent further movement or wear
• Works where the original OEM screw was specified for fit and compatibility

• Disconnect power before working on electrical appliances to avoid shock
• Use the correct size driver to avoid stripping the head
• Install by hand initially to ensure proper threading, then snug—do not overtighten
• Retain removed hardware and compare to the new screw for correct fit before final assembly

Color: White

Color: White

This factory screw secures appliance panels and components, keeping them properly aligned and quiet during operation. Replace a stripped, corroded, or missing fastener to restore a snug fit and dependable performance in the original mounting location. What it does:

• Fastens brackets, panels, trim, or internal hardware to the cabinet/frame as specified by the manufacturer
• Helps maintain proper alignment and reduce rattling or vibration when a screw is worn or missing
• Direct replacement for damaged, stripped, or rusted hardware
• Used in various locations per the service diagram; match to the original position

• 1 screw

• Disconnect power (and shut off water or gas, if applicable) before servicing.
• Compare length and thread style to the original; install in the same location.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• Reinstall any brackets or panels in the correct order.

Screw kit for front panel.

Spesc: #12 pozi - drive

Replacement heater relay for Whirlpool appliances that controls power to the heating element. It restores reliable heat switching so cycles reach the correct temperature when the appliance calls for heat. What it does:

• Switches electrical power to the heating element when the control signals demand heat
• Replaces a failed relay that can cause no heat or intermittent heating
• Helps restore normal heating cycles and consistent performance
• Works with the appliance's control system to enable safe heating operation

• Disconnect power at the breaker or unplug the appliance before servicing
• Use appropriate tools and avoid bending connector terminals; secure all wiring after replacement

Color: White This part has been discontinued and is no longer available.

This clip is a small retaining fastener used to secure components inside your appliance, keeping parts aligned and in place during operation. Replacing a worn or missing clip helps stop looseness, vibration, and premature wear.

• Holds a designated part firmly to its mating surface
• Maintains proper alignment to reduce rattling and shifting during cycles
• Symptoms of failure: parts that won't stay attached, misalignment, buzzing/rattling noises, or a visibly bent/missing clip
• Restores a secure, factory-style fit

• Disconnect power; turn off water supply before servicing
• Note the original clip position and orientation (a quick photo helps)
• Use needle-nose pliers to release/install; avoid over-bending the clip
• Ensure the component is fully seated and secure before reassembly and testing
