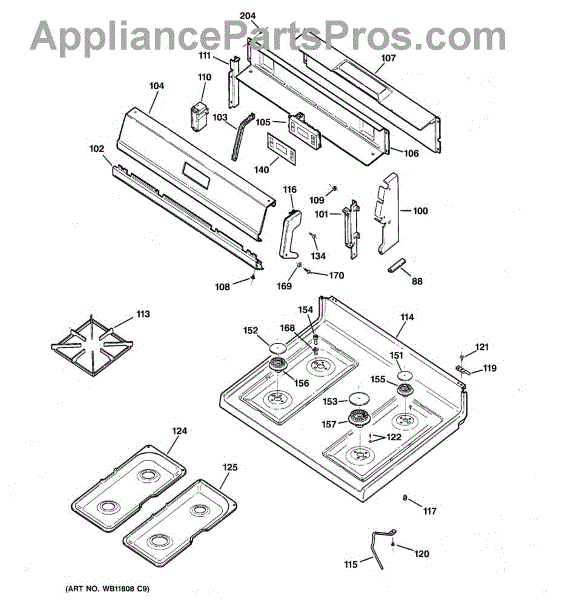

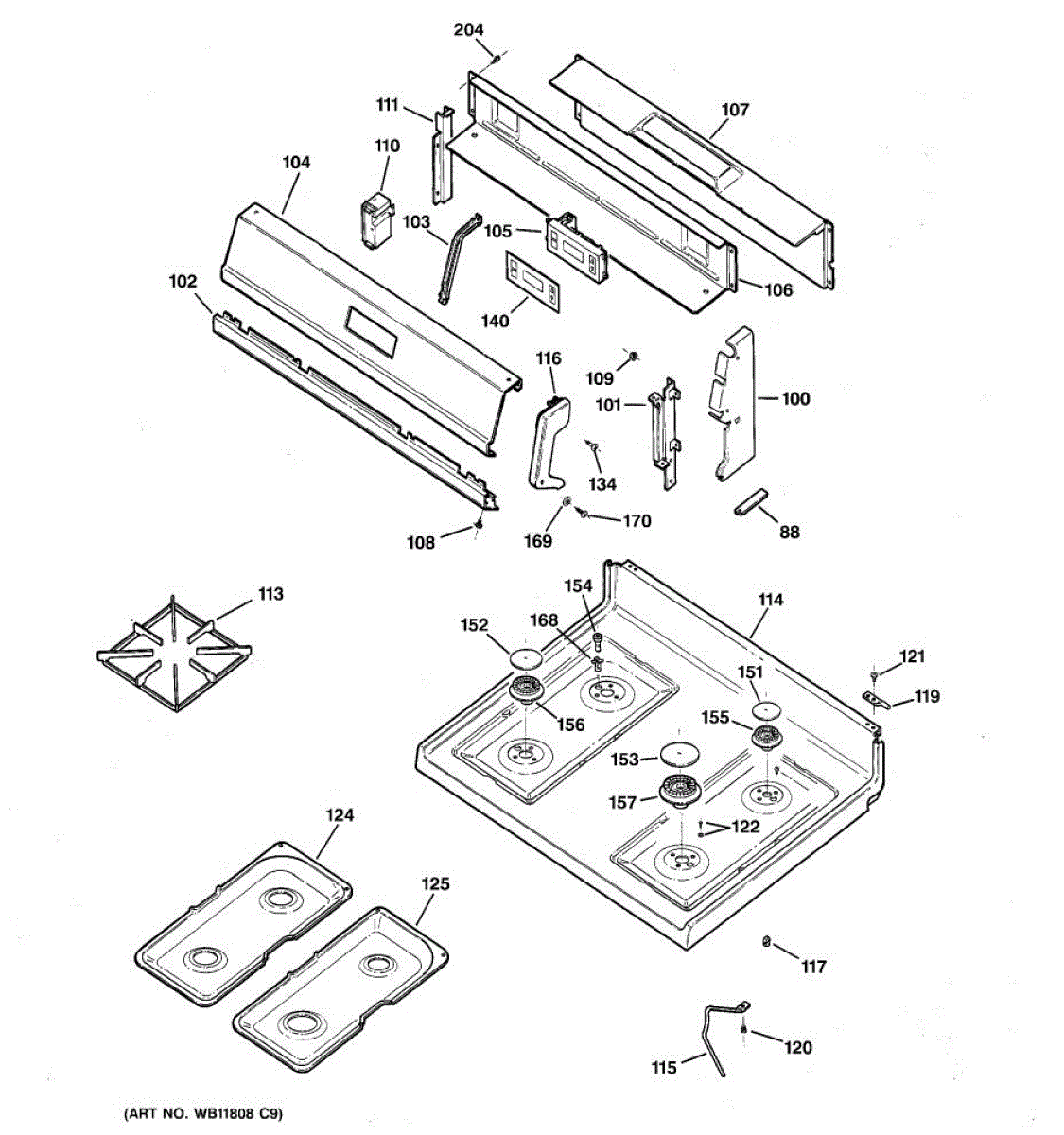

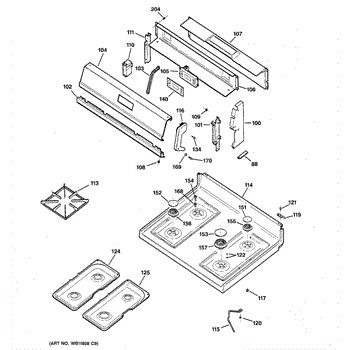

Parts for Ge RGB533WEA8WW: 02 - Control Panel & Cooktop Parts

Replace worn felt pad gasket to prevent heat loss and reduce noise in your range. Cushions components and ensures proper sealing. Confirm fit with model number.

White left-side end cap cover for range control panels. Replaces cracked, broken, or missing endcaps. Installs at the left edge of the console.

Right-hand end plate for electric ranges. Replaces cracked, bent, or corroded exterior panel. Restores proper support and alignment to side components.

Left side end plate for electric ranges. Replaces cracked, broken, or missing end panels that provide structural support and finished appearance.

Range clock or timer not working? This control board restores display and cooking time functions. DIY-friendly with video guide. Fits electric and gas ranges.

Replace the upper back cover on your gas range. This housing panel protects internal components and completes the exterior finish. Order now if cracked or missing.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Includes 12 speed nuts.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

Protective wire cover for range burner igniter wires. Replaces cracked, broken, or missing covers. Shields wiring from damage inside the range cabinet.

Color: Gray

Color: White

Top support plate for gas ranges. Mounts beneath the cooktop surface to provide structural reinforcement. Replace if cracked, bent, or damaged.

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Single fastening screw for range components. Replaces missing, stripped, or damaged screws that secure panels, brackets, and trim pieces in place.

Double drip pan installs beneath range burners to catch spills and cooking residue. Replace when cracked, stained, or coated with burnt-on grease.

Replace cracked, stained, or worn drip pans that sit beneath burner elements. Catches spills and crumbs during cooking. Easy cosmetic upgrade.

This is a replacement 8-18 x 1.5 screw in white finish used to secure appliance panels and components. It restores proper fastening where original screws are missing, stripped, or corroded. What it does:

• Fastens trim, panels, brackets and other appliance parts that use an 8-18 thread
• Helps stop rubbing, rattling or loose panels caused by missing or damaged fasteners
• Restores proper alignment for parts that rely on secure threaded attachment
• Matches original appearance where a white finish is used

• One screw as shown

• Use the correct driver to avoid stripping the head; tighten until snug but do not overtighten
• Verify material and finish match surrounding hardware before installing in visible areas
• Disconnect power and follow appliance safety precautions when accessing internal components
• Replace any damaged mating threads or inserts for a secure fit

Replaces chipped, cracked, or missing burner cap on your gas range cooktop. This grey cap sits atop the burner base to direct and shape the flame properly.

Medium. Color: Grey. It measures about 3 inches in diameter.

Large. Color: Grey. It measures about 3-1/2 inches in diameter.

Electrode

Replacement small surface burner for gas ranges and cooktops. Installs on stovetop to provide heat for smaller pots. Replace if damaged, discolored, or missing.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Burner base holds and secures the gas burner assembly on your cooktop. Replace if cracked, warped, or corroded to restore proper burner seating.

Secures the ignition electrode on gas range burners. Replace if burners won't spark, igniter clicks continuously, or clip is corroded or loose. Confirm fit with your model number.

Clear washer for range assembly and mounting applications. Replaces worn, cracked, or missing washers in your range. Essential hardware component.

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.
