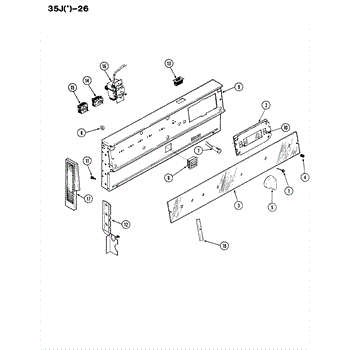

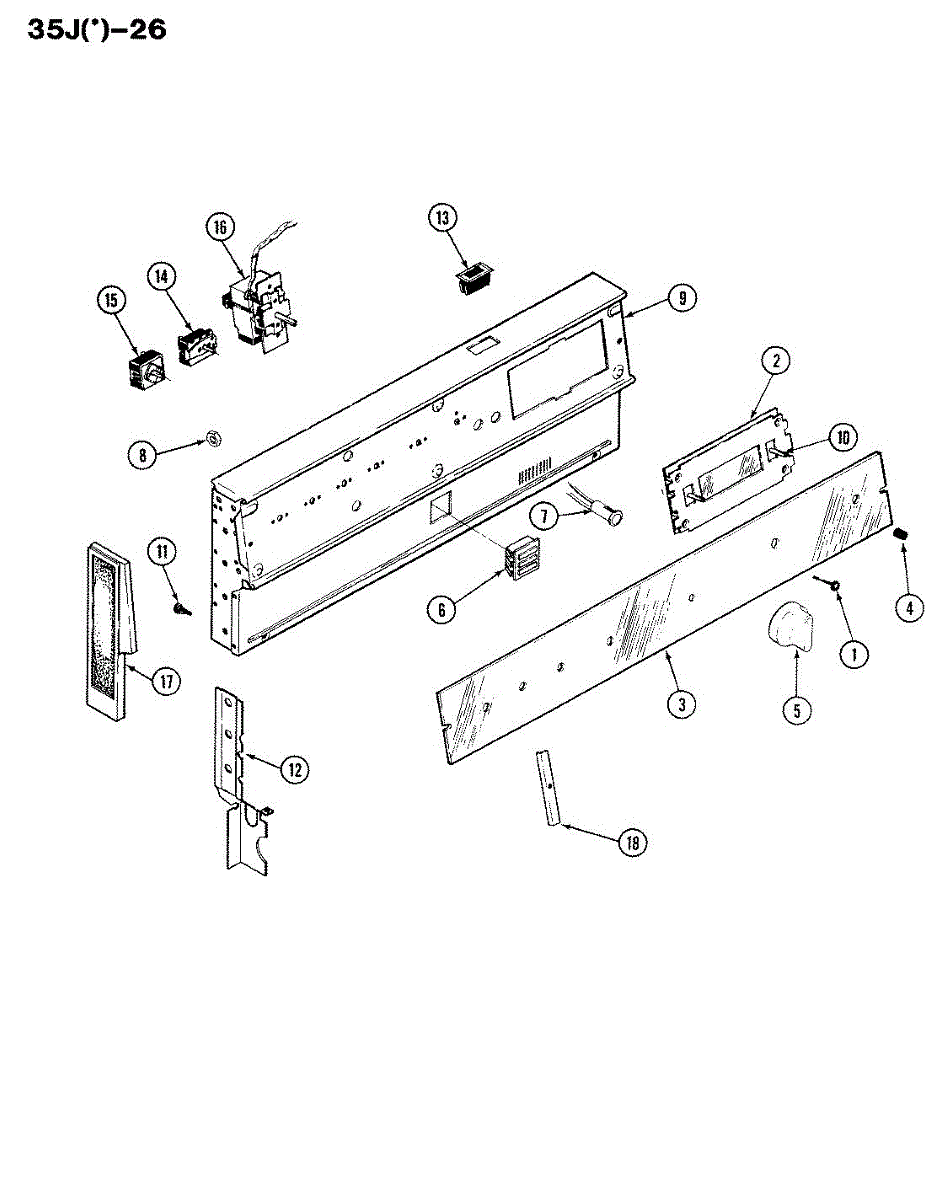

Parts for Magic Chef 35JA-26X-ON: 02 - Control Panel Parts

This part has been discontinued by the manufacturer and is no longer available.

Size: 10-24X5/16-NI

This shaft-bit generator is a replacement drive shaft component that transfers motor rotation to the appliance's moving assemblies, restoring proper mechanical motion and reducing noise from damaged or worn shaft parts. What it does:

• Transfers rotary motion from the motor to the driven components for normal operation
• Helps maintain alignment and smooth rotation of connected parts
• Worn or broken units can cause grinding, rattling, or loss of movement
• Replacing a failed shaft can stop intermittent operation and restore reliable performance

• High-level replacement only: remove power before accessing internal assemblies
• Follow appliance-specific disassembly steps; secure panels and wiring before removing the old shaft
• Inspect adjacent bearings, seals, and mounting hardware; replace any damaged items

This spacer maintains the correct gap between mating components inside your appliance, keeping parts aligned and operating smoothly. Replacing a worn or missing spacer restores proper fit and helps prevent rubbing, noise, and premature wear. What it does:

• Sets and preserves the correct stand-off between components for proper alignment
• Helps ensure smooth operation and consistent control feel
• Reduces friction and contact that can cause noise or wear
• Common failure signs: loose or wobbly parts, rubbing/scraping sounds, misalignment, poor fit

• 1 spacer

• Disconnect power and, if applicable, shut off gas supply before servicing.
• Note the orientation of the original spacer and match it during reassembly.
• Handle nearby trim and control components carefully to avoid damage.
• After reassembly, verify smooth operation and proper clearances before restoring power/gas.

Color: Black

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.
