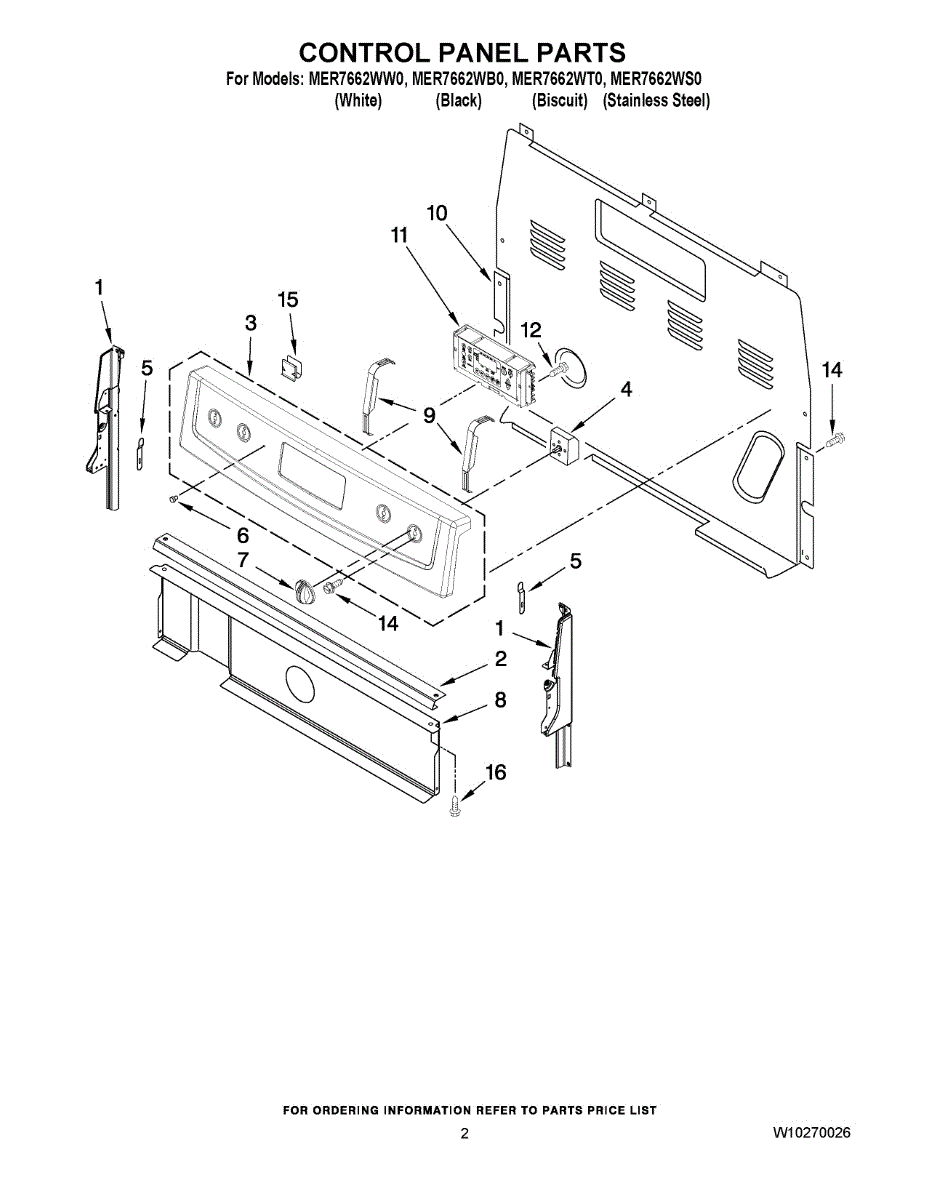

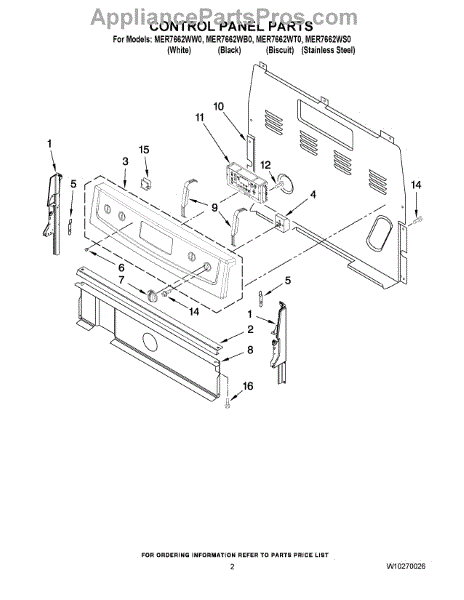

Parts for Maytag MER7662WT0: 02 - Control Panel Parts

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

This end cap panel covers and finishes the exposed edge of a control or cabinet panel for a clean, factory appearance while protecting edges from chips and wear. It restores the look and helps prevent debris buildup in the gap. What it does:

• Covers and protects the exposed edge of a control/cabinet panel to restore a finished appearance
• Hides fasteners and raw panel edges for improved cosmetics
• Prevents dirt and debris from collecting in the panel gap
• Common replacement for cracked, chipped, loose, or missing end caps

• One end cap panel

• Disconnect power to the appliance before starting any repair
• Remove adjacent trim or screws as needed; align end cap and secure with original fasteners
• Handle carefully to avoid scratching the finish; do not overtighten screws
• Replace any damaged clips or mounting hardware to ensure a secure fit

Color: White  Note: Right side endcap

This control bracket secures the appliance control or console assembly, keeping the control board and user interface stable for reliable operation. It helps prevent loose or misaligned controls that can affect button response or display visibility. What it does:

• Provides a rigid mounting surface for the control board or console assembly
• Keeps control components aligned and stable during normal use
• Helps reduce vibration-related connector or wire stress
• Can restore proper fit and button alignment when the panel is loose

• One control bracket

• Disconnect power to the appliance before starting any repair
• Handle the control board and wiring harness carefully to avoid damage
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Reuse existing screws or verify hardware compatibility

Color: Black

Color: Bisque

Color: Stainless

Color: White

The Infinite Switch is an OEM replacement part for Whirlpool ovens and ranges. It is a crucial component that controls the flow of electricity to the heating elements, allowing for precise temperature regulation during cooking.

Symptoms of a need to replace the infinite switch:

• Oven or range not heating properly or cycling on and off erratically
• Inability to maintain consistent temperatures during cooking
• Knob or dial feeling loose or not turning smoothly
• Heating elements not turning on or off as expected

Causes of a faulty infinite switch can include general wear and tear, electrical malfunctions, or physical damage due to impact or mishandling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven and range models.

The Infinite Switch is an OEM replacement part for Whirlpool ranges and cooktops. Located behind the control knob, this switch regulates the power delivered to the heating elements, allowing users to set and adjust the desired cooking temperature.

A malfunctioning Infinite Switch can arise from wear and tear, electrical shorts, or internal component failures. When this essential component is not working correctly, it can lead to inconsistent or uncontrolled heating of the burners.

Symptoms of a faulty Infinite Switch include:

• Burner not heating at all or heating continuously regardless of the knob setting
• Inability to achieve or maintain the desired cooking temperature
• Burner heating inconsistently or fluctuating in temperature
• The control knob feeling loose or not aligning with the indicated settings

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops. This part controls the temperature of the small burner on electric ranges and cooktops by regulating the power supplied to the burner. The infinite switch allows for precise temperature settings, providing the flexibility to cook a wide variety of dishes by adjusting the heat level as needed.

Over time, infinite switches can wear out or malfunction, leading to issues with controlling the burner's temperature.

Symptoms of a bad Infinite Switch include:

• The burner does not heat or heats intermittently
• The burner heats to full power regardless of the setting
• Inability to adjust the burner's temperature accurately
• Physical damage to the switch, such as cracking or melting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This spring clip is a small metal retainer used to secure wiring or small components in place, preventing movement and accidental disconnection. It helps maintain reliable electrical and mechanical connections inside the appliance. What it does:

• Holds wiring harnesses or small terminals securely to reduce chafing and intermittent connections
• Keeps connectors and small components from shifting during operation or transport
• Helps prevent wire strain that can cause shorts or loss of function
• Commonly replaced when clip is bent, broken, or missing and wiring becomes loose

• One spring clip

• Turn off power to the appliance at the breaker before inspecting or replacing
• Use needle-nose pliers to compress and seat the clip; avoid forcing or over-bending
• Verify the clip secures the intended wire or terminal without pinching insulation
• If wiring shows damage, replace the wiring/harness per OEM guidance rather than relying on the clip alone

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

Color: White

The Range Knob is an OEM part for Whirlpool ranges. This component allows the user to control the heat output for elements on the stovetop. It is designed to fit snugly onto the control switch and rotates smoothly to adjust the desired level of heat.

A range knob may go bad due to factors like frequent use, physical impact that causes it to crack or break, or worn internal parts that prevent it from gripping the control valve securely.

Color: Black

Symptoms of a bad Range Knob include:

• Difficulty in adjusting element heat
• Knob slipping or not gripping the control valve
• Cracked, broken, or missing knob

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mounting bracket secures appliance components and panels to keep assemblies aligned and stable, helping prevent rattles and loose parts. It's a simple replacement that restores proper fit and support where the original bracket has failed. What it does:

• Provides rigid support for internal components or exterior panels to maintain alignment
• Stops vibration and rattling caused by a broken or bent bracket
• Restores secure attachment points for screws and fasteners
• Helps prevent additional wear from loose parts moving during operation

• Always unplug the appliance or disconnect power before starting any repair
• Remove necessary access panels to reach the damaged bracket; keep track of fasteners
• Reuse original screws if undamaged; replace stripped or corroded fasteners
• If alignment issues persist after installation, recheck fit and mounting points for damage

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

This electronic control board manages oven functions and the user interface, restoring reliable cycle selection and timed cooking features. Fits microwave/oven control assemblies that use a single main PCB to run display and key inputs. What it does:

• Receives user commands and sends signals to oven heating elements and relays.
• Controls bake/broil cycles, timers, and display readouts.
• Can stop oven operation or cause incorrect temperatures when failing.
• Common symptom: unresponsive touchpad, blank or erratic display, or oven not starting.

• Disconnect power at the breaker before accessing the oven control area.
• Handle the board by its edges to avoid ESD damage; wear ESD protection if available.
• Verify connector locations and match wire harness before disconnecting.

This product is now only available in white.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

Color: Biscuit. For black order WP98008545. For white order WP98008544.

Color: White. Size: 8-18 x 3/8 inch.

Screw for side trim.
