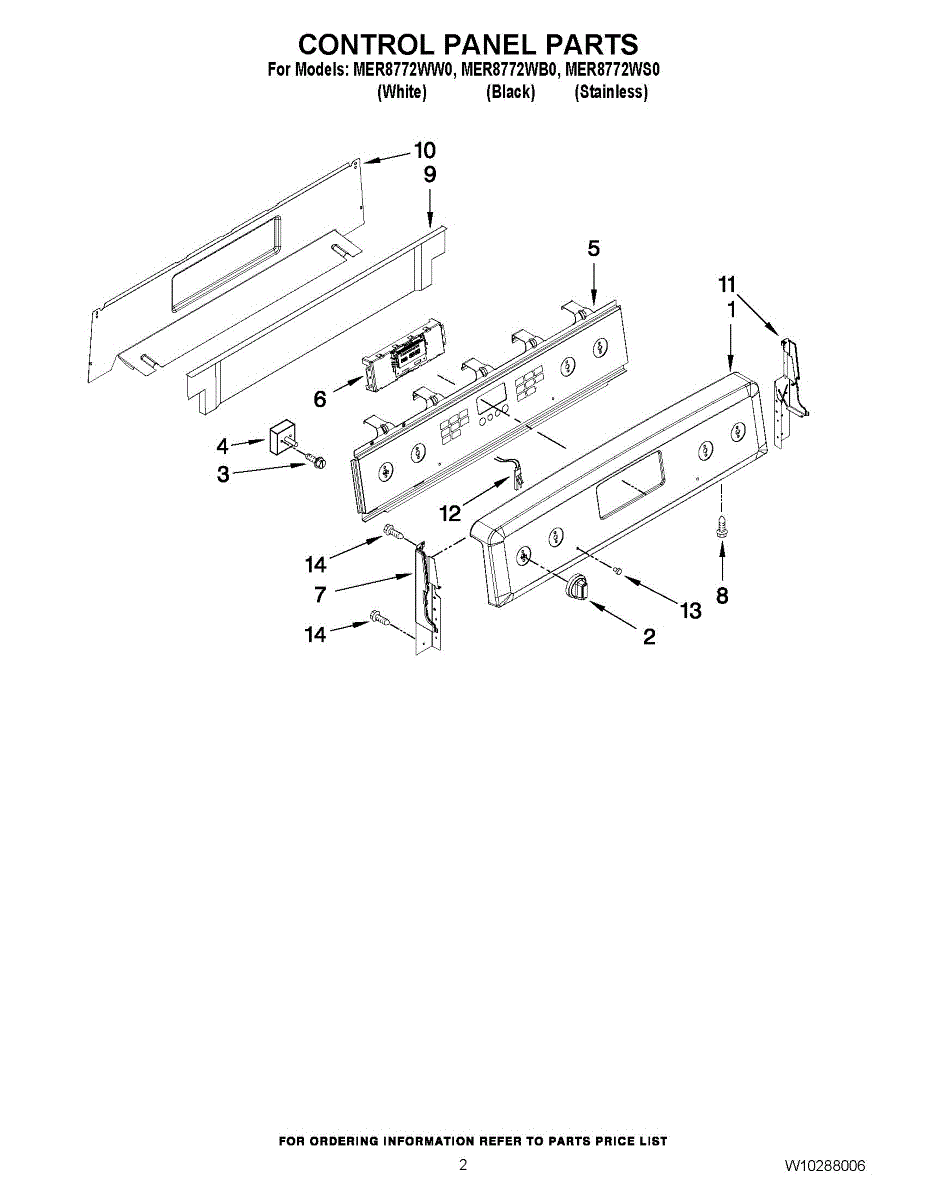

Parts for Maytag MER8772WS0: 02 - Control Panel Parts

Color: White

Color: Black

Color: Stainless

The Range Knob is an OEM part for Whirlpool ranges. This component allows the user to control the heat output for elements on the stovetop. It is designed to fit snugly onto the control switch and rotates smoothly to adjust the desired level of heat.

A range knob may go bad due to factors like frequent use, physical impact that causes it to crack or break, or worn internal parts that prevent it from gripping the control valve securely.

Color: Black

Symptoms of a bad Range Knob include:

• Difficulty in adjusting element heat
• Knob slipping or not gripping the control valve
• Cracked, broken, or missing knob

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This is the surface burner control switch for a triple radiant element. It regulates power to the outer and inner coils so you can select small, medium, or large burner sizes and fine-tune heat output while cooking.

• Controls a triple-size radiant surface element and adjusts heat levels
• Common failure signs: burner won't heat, only heats on high, won't turn off, or heat level won't adjust
• Restores proper temperature control and size selection for the triple burner

• Disconnect power before servicing to avoid electrical shock
• Match knob orientation/flat to the new shaft before reassembly
• Transfer wires one at a time from old switch to new to maintain correct positions
• Verify secure mounting and knob operation before restoring power

The Infinite Switch is an OEM replacement part for Whirlpool ovens and ranges. It is a crucial component that controls the flow of electricity to the heating elements, allowing for precise temperature regulation during cooking.

Symptoms of a need to replace the infinite switch:

• Oven or range not heating properly or cycling on and off erratically
• Inability to maintain consistent temperatures during cooking
• Knob or dial feeling loose or not turning smoothly
• Heating elements not turning on or off as expected

Causes of a faulty infinite switch can include general wear and tear, electrical malfunctions, or physical damage due to impact or mishandling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven and range models.

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops. This part controls the temperature of the small burner on electric ranges and cooktops by regulating the power supplied to the burner. The infinite switch allows for precise temperature settings, providing the flexibility to cook a wide variety of dishes by adjusting the heat level as needed.

Over time, infinite switches can wear out or malfunction, leading to issues with controlling the burner's temperature.

Symptoms of a bad Infinite Switch include:

• The burner does not heat or heats intermittently
• The burner heats to full power regardless of the setting
• Inability to adjust the burner's temperature accurately
• Physical damage to the switch, such as cracking or melting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-18 x 1/2 inch.

Surface unit indicactor light.

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
