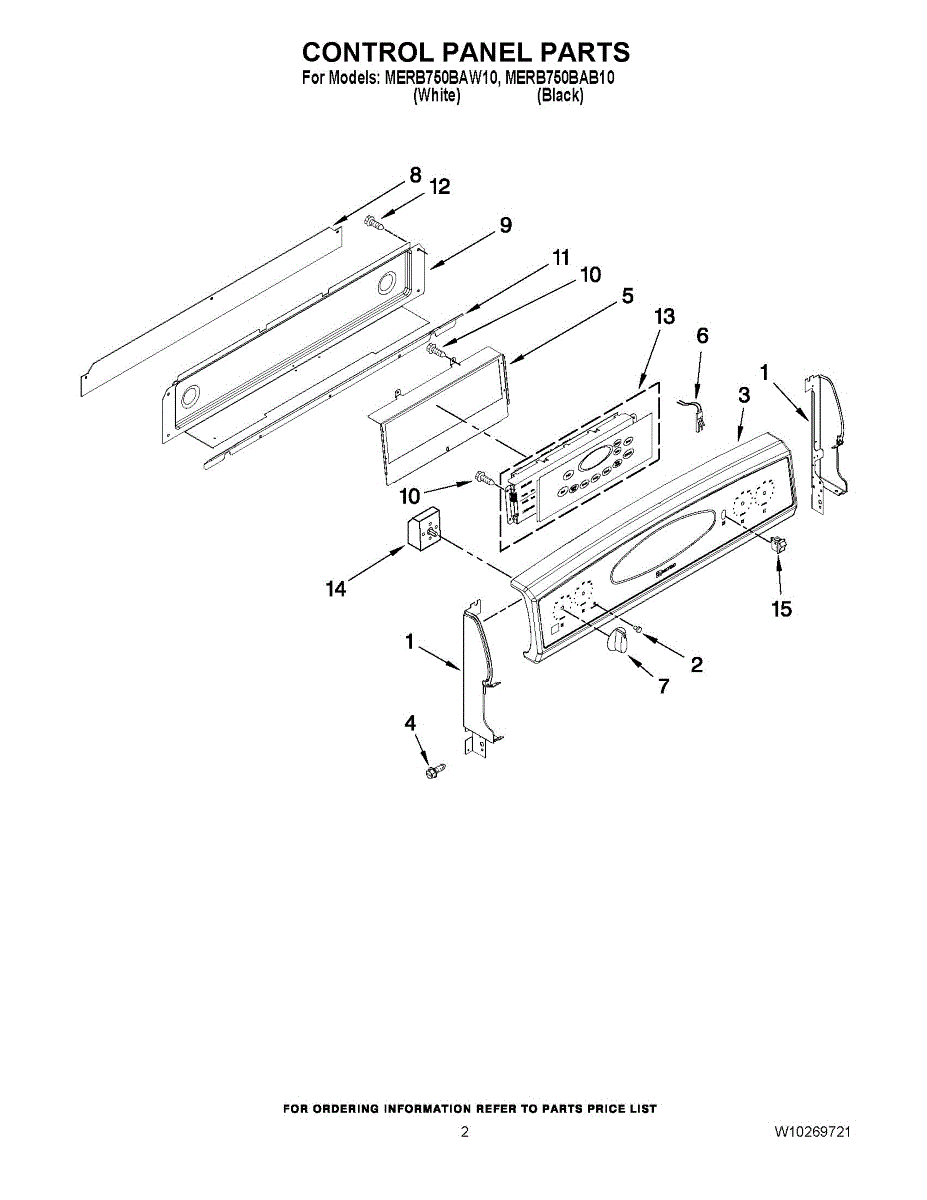

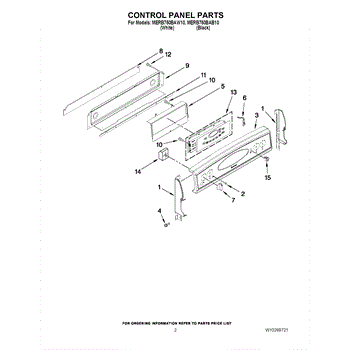

Parts for Maytag MERB750BAB10: 02 - Control Panel Parts

Note: Left hand side

Note: Right hand side.

Indicator light lens covers the pilot lamp opening on your range control panel. Replace when cracked, discolored, or missing to restore visibility.

Color: Black. For biscuit order 98008169. For white order WP98008544.

Indicator light that illuminates when functions are active on your range control panel. Replace if stuck on, dim, or fails to light. Verify fit by model number.

Replacement control knob for range or oven. Restores temperature and cooking mode selection. Replaces worn, cracked, faded, or missing knobs. Direct fit.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Oven won't heat, display blank, or controls unresponsive? Replace the electronic control board. DIY-friendly repair, typically 30 minutes with basic tools.

Oven won't heat, display blank, or controls unresponsive? Replace the electronic control board. DIY-friendly repair, typically 30 minutes with basic tools.

Burner won't turn off or only heats on high? This infinite switch controls heat settings for your electric range's surface element. DIY repair.

Fix a burner stuck on high or an indicator light that won't turn off. This infinite switch controls heat settings on electric range burners. DIY-friendly repair.

This rocker switch is a direct-replacement control button that restores reliable on/off input for the appliance. It replaces a worn or broken front-panel switch so controls respond correctly during normal use. What it does:

• Replaces a failed rocker/control switch used to send on/off or selection signals to the appliance's control circuitry
• Restores consistent electrical contact when the original switch is cracked, stuck, or intermittently working
• Commonly used when push/panel buttons no longer activate functions or display response is erratic
• Simple, single-function mechanical switch — no programming or calibration required

• Disconnect power to the appliance before attempting any service to avoid shock or injury
• Access may require removal of the control panel; keep screws and fasteners organized for reassembly
• Verify switch orientation and wiring before final reassembly; match connectors to original terminals
