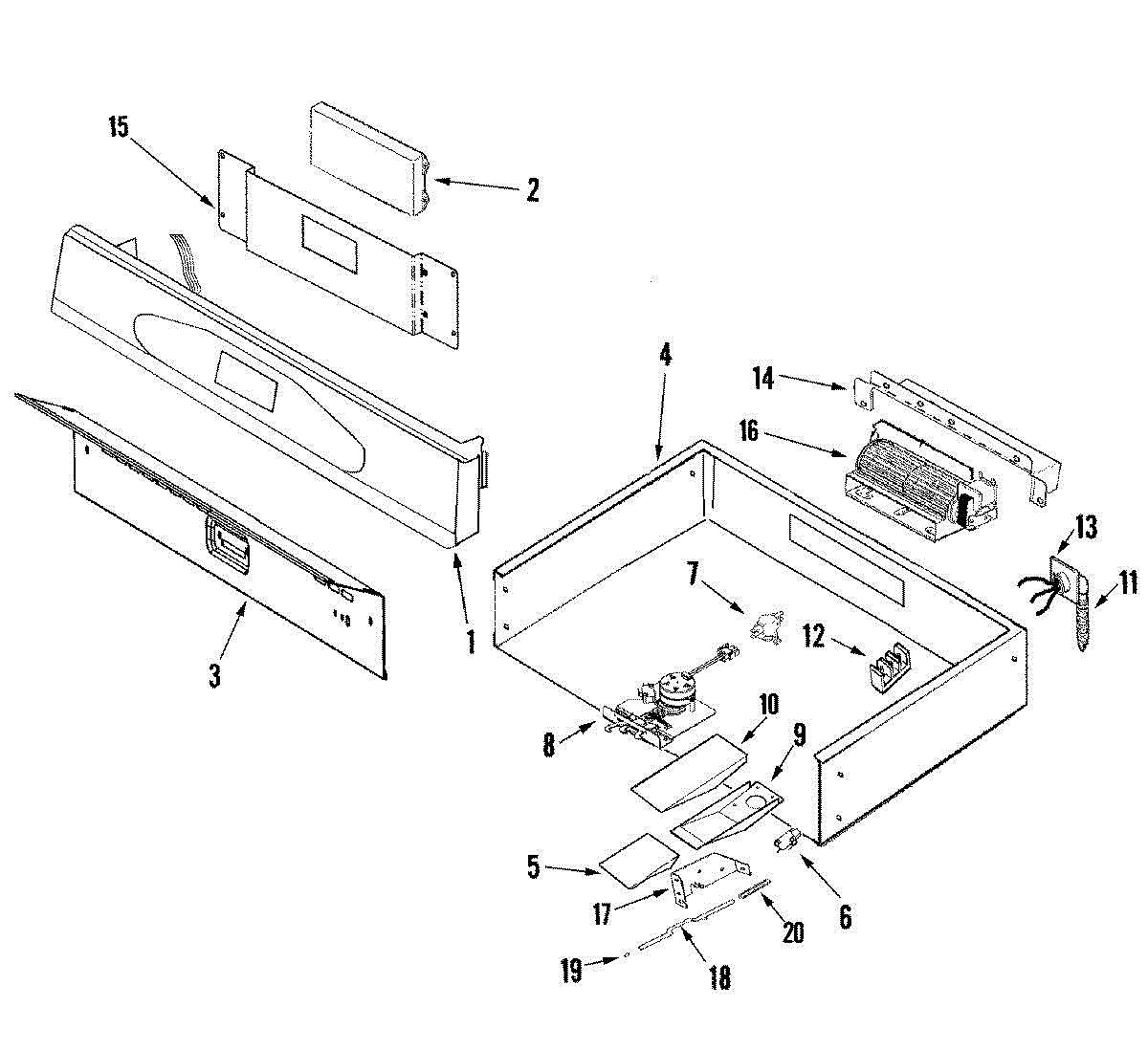

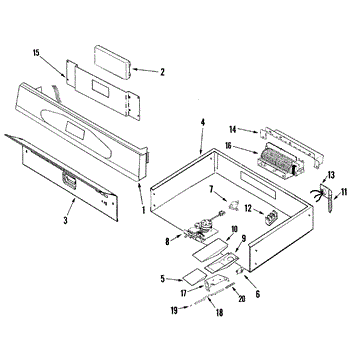

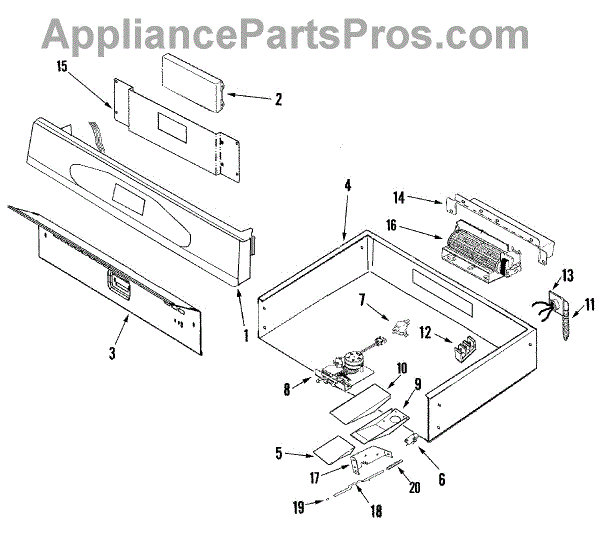

Parts for Maytag MEW6530DDS: 02 - Control Panel And Internal Controls Parts

This Whirlpool touchpad and control panel is intended for use with wall ovens. The control panel and touchpad provide users with the ability to control the oven's functions. The touchpad can wear out through normal, everyday use over time. The panel itself, although made from stainless steel and very durable, can also begin to wear if not properly cleaned and maintained.Signs that the touchpad might need to be replaced include difficulty pressing the buttons and operating the oven. If the overlay on the display is difficult to read, or if the metal is corroding, it should also be replaced. Before replacing this part, first turn off the breaker to the oven. Then, remove the two screws at the top of the display and pull outward. Remove the control board from the inside and install it in the new panel, then install the panel.This is a genuine OEM part, sold individually. It fits Maytag wall ovens only.

This is the electronic oven control board for convection-equipped models. It governs heating modes and temperature, processes keypad inputs, and runs the clock/timer and display to restore accurate, reliable oven operation.

• Regulates bake, broil, and convection functions by switching oven relays based on sensor feedback
• Manages the clock, timer, display, and audible alerts
• Interprets keypad inputs to select and start cooking modes
• Typical failure symptoms: no heat or won't reach set temp, dead/erratic display, unresponsive buttons, fault beeps/codes, or convection not operating

• Disconnect power at the breaker before servicing; oven/range may be hardwired
• Handle the new board with ESD precautions; avoid touching components and contacts
• Photograph/label connectors and transfer wiring and any trim/overlay as required by your model
• After install, restore power, set the clock, and test all cooking modes

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The light switch assembly controls power to the appliance light circuit. Replace a worn or faulty switch to restore reliable on/off operation when your lamp won't turn on, won't turn off, or works intermittently. What it does:

• Opens and closes electrical contacts to supply or cut power to the light
• Controls cavity or task lights as designed for the specific model
• Typical symptoms: light won't turn on, won't turn off, or flickers/intermittently works
• Physical signs of failure: stuck/loose actuator or no continuity when tested

• 1 light switch assembly

• Disconnect power at the breaker or unplug the appliance before service
• Access location varies by model; remove necessary panels/trim to reach the switch
• Note wire positions and transfer them one at a time to the new switch; secure the mounting
• Restore power and test light operation before final reassembly

Thermal cutoff

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This part is a replacement door latch assembly that is intended for use with wall ovens.The door latch assembly makes sure that the oven door locks properly. This is an essential safety component, and the user may notice the appliance doesn't work or certain cycles, such as the self-cleaning cycle, will not start should the latch be faulty. Basic household tools are needed to install this part. Make sure the oven is powered off, unplugged, and cooled down before beginning the repair process.This part is compatible with several different wall oven models that have been manufactured by Whirlpool, Maytag, Kitchenaid, Magic Chef, Amana, Admiral, and some other brands. It is a genuine OEM part from Whirlpool made of high-quality, durable materials. This part is sold individually.

Comes with three connectors per package.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
