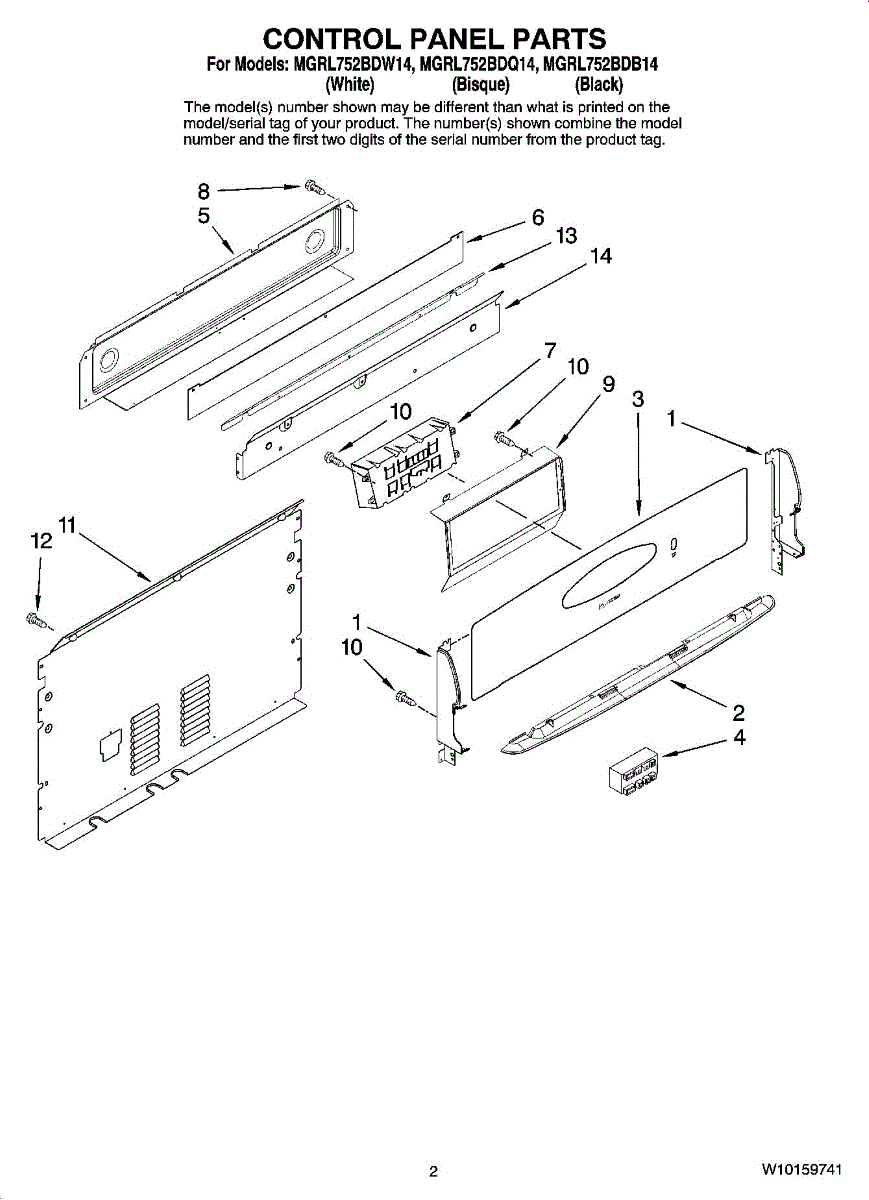

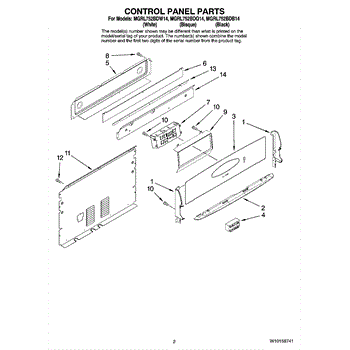

Parts for Maytag MGRL752BDB14: 02 - Control Panel Parts

Note: Right hand side.

Note: Left hand side

A replacement spark module that controls timed ignition sparks to burner electrodes so gas burners light reliably. Restores proper ignition when the cooktop clicks continuously or burners fail to light. What it does:

• Sends high-voltage sparks to the burner ignitors so gas burners ignite
• Stops continuous or rapid clicking when the module is faulty or intermittent
• Helps diagnose ignition issues when used with known-good ignitor electrodes and harnesses
• Works as the electronic control for the cooktop/range ignition system

• Disconnect electrical power and shut off gas supply before beginning service
• Handle the board and connectors carefully to avoid static damage; do not touch exposed contacts
• After installation, test all burners for correct ignition and check for gas leaks before normal use

This electronic control board is the main oven controller. It manages bake and broil relays based on sensor feedback and drives the clock/display, restoring accurate temperature control and dependable cooking cycle operation when the original board fails. What it does:

• Monitors the oven temperature sensor and switches the bake/broil elements via onboard relays
• Controls and displays settings, time, and status; may store or report fault codes
• Coordinates preheat and timed cooking functions supported by the model
• Also referred to as the EOC (Electronic Oven Control)

• One electronic control board

• Disconnect power at the breaker and verify the appliance is de-energized before servicing
• Access is typically through the control panel; photograph and label wires to ensure correct reconnection
• Handle the circuit board by the edges and use ESD protection if available
• Transfer each connector to the matching terminal; if your model uses a separate overlay, carefully transfer it to the new board
• Restore power and run a test bake to ensure proper operation

This electronic control board is the main oven controller. It manages bake and broil relays based on sensor feedback and drives the clock/display, restoring accurate temperature control and dependable cooking cycle operation when the original board fails. What it does:

• Monitors the oven temperature sensor and switches the bake/broil elements via onboard relays
• Controls and displays settings, time, and status; may store or report fault codes
• Coordinates preheat and timed cooking functions supported by the model
• Also referred to as the EOC (Electronic Oven Control)

• One electronic control board

• Disconnect power at the breaker and verify the appliance is de-energized before servicing
• Access is typically through the control panel; photograph and label wires to ensure correct reconnection
• Handle the circuit board by the edges and use ESD protection if available
• Transfer each connector to the matching terminal; if your model uses a separate overlay, carefully transfer it to the new board
• Restore power and run a test bake to ensure proper operation

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.
